Geovision

Geovision GV-FE5303 5 Megapixel IR Fisheye IP Camera

Write a Review
SKU:
GV-FE5303
Shipping:
Calculated at Checkout
  • Geovision GV-FE5303 5MP IR Fisheye IP Camera
  • Geovision GV-FE5303 IR Fisheye Camera Surface Mount
  • Geovision GV-FE5303 IR Fisheye Camera Function Diagram
  • Geovision Fisheye 360 Degree Source Image 5 Megapixel
  • Geovision GV-FE5303 Dimensions
  • Geovision Fisheye Tilting Wall Mount Bracket
  • Geovision Fisheye Wall Mount Bracket

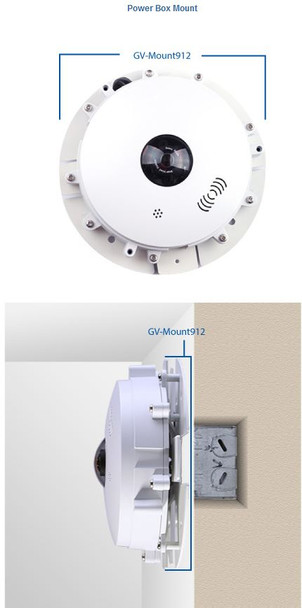

  • Geovision Fisheye Electrical Power Box Mounting Adapter
  • Geovision GV-FE5303 5 Megapixel IR Fisheye IP Camera
  • Geovision Pendant Wall Mount Bracket
  • Geovision Pendant Wall Mount Bracket with Back Box
  • Geovision Pendant Wall Mount Bracket with Convex Wall Mount Adapter
  • Geovision GV-FE5303 5 Megapixel IR Fisheye IP Camera
  • Geovision Pendant Wall Mount Bracket with Pole Mount Adapter

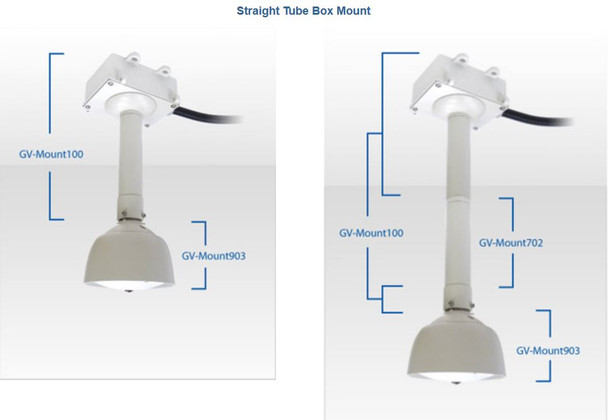

  • Geovision Straight Tube Pendant Mount with Box
$650.00

Description

Geovision GV-FE5303 5 Megapixel IR Fisheye IP Camera is the latest generation of advanced panoramic/fisheye security cameras. Experience total video security via a 5MP image sensor outfitted with True Day/Night operation, a Fisheye Lens and an innovative IR LED Ring for absolute 360 degree night vision. The latest model builds upon the already well developed Geovision Fisheye IP Cameras and likewise offers a wealth of security functions to integration possibilities. Everything optional mounting accessories, multiple built-in power options, independent operation with local recording or third party IP camera system support via ONVIF is all possible. The unit allows total functionality via its built-in web server interface and likewise enables cross browser support for easy connection. Factors like Two Way Audio, PoE or WiFi adapter are all also very considerable points that set the Geovision Fisheye Security Cameras apart from others.


Geovision GV-FE5303 Main Features:

  • 1/2.5" progressive scan CMOS
  • Single stream from H.264 and MJPEG
  • 10fps at (2560 x 1920) 5 Megapixel
  • True Day/Night (mechanical IR-cut filter)
  • IR ring w/IR Illumination up to 10 meters (32.81 ft.)
  • Mini USB slot for WiFi Adapter or USB hard drive
  • Micro SD card slot (SD/SDHC) for local video storage
  • Total 360° and 180° panorama surveillance
  • Two-way audio, on-board Microphone and Speaker
  • WDR (Wide Dynamic Range), DNR (Digital Noise Reduction), Defog
  • Digital Object Tracking, Virtual PTZ function, Auto Pan Function
  • Tampering alarm, Privacy mask, Text overlay, Visual automation,
  • ONVIF (Profile S) compliant
  • Web interface w/31 languages
  • Operating Temperature: 0 °C ~ 50 °C (32 °F ~ 122 °F)
  • Power Inputs: 12VDC, 24VAC, PoE (IEEE 802.3af) or PoE+ (IEEE 802.3at) with PoE Converter
  • IR LED ring: 12VDC (12V Direct or via PoE+ converter)
  • Size: Hard-Ceiling Mount (w/IR Ring): Ø 175 x 48.36 mm (6.89” x 1.93”)
  • Weight 870 grams (1.92 lbs.) w/PoE Converter 1.045 kg (2.3 lbs.)



5 Megapixel HD 360 Degree 180 Panoramic 24/7 IP Surveillance:
Outfitted with a progressive scan CMOS HD image sensor boasting true day/night operation with integrated IR LED night vision is undoubtedly the introduction of a new age in video security. Fisheye Security Cameras are by no means new, however until recently with modern technology specifically like Megapixel HD imaging or advanced compression methods such as H.264 has such unique solutions become highly effective. Designed for wall or ceiling mount, the Fisheye IP camera is designed to provide complete 360 degree indoor coverage from central mounting point. In-depth camera image configurations and equally vast viewing methods enable a powerful base for modern IP surveillance. Equipped with the IR Ring, this Megapixel IR Fisheye IP Camera yields equal protection even in total darkness. Aspects like DNR (Digital Noise Reduction) and WDR (Wide Dynamic Range) for ensure optimal video clarity in all sorts of lighting conditions.


Smart Design, Intelligent functions:
The Geovision GV-FE5303 5MP IR Fisheye IP Security Camera is easy to appreciate thanks to its reasonable cost and feature rich specifications. From Hardware to Software the units deliver literally everything you can think of. Complete functionality for the Fisheye 360 or 180 degree viewing, with first a built-in de-warping with the ability on the camera itself, digitally pan, tilt and zoom for displaying multiple individual areas of interest is merely the beginning. The device includes all sorts of professional attributes you would expect in a modern network camera. Support for stand-alone, total IP Surveillance System operation including viewing, search, playback and export the units are unquestioningly advanced. On-board there are common abilities you'd expect like multiple recording modes, two way audio, on-board SD card recording, but factors like WiFi wireless communications with GV-WiFi adapter or local USB hard drive for long term video storage are points that make a best in class product. Alongside the Free GV-NVR Surveillance System Software to third party integration with ONVIF protocol, GV-FE5303 is built to adapt.


Great Adaptability, Easy Install and Use:
Geovision GV-FE5303 5 Megapixel IR Fisheye IP Camera is a super flexible unit designed for indoor IP surveillance by recessed or surface mounting centrally to the area of interest. Available are all sorts of optional mounts, but for your convenience the surface mount and recessed (in-ceiling) mount camera casings included. Flexible install with triple power input options the device can accept 12VDC, 24VAC or PoE (power over Ethernet) power sources. Furthermore the setup plus use of the unit is made easy with utility software, intuitive web interface and even automatic setup with FREE GV-NVR Surveillance System software. Whether part of a complete IP security camera system or as a stand-alone security solution, Geovision GV-FE5303 sets new standards for the industry.


What is included:


1. GV-Fisheye Camera
2. Support Bracket x 3
3. Camera Cover (Hard Ceiling Mount)
4. Screw (Hard Ceiling Mount) x 3
5. Torx Wrench
6. Plastic Screw Anchor x 3
7. Mini USB Extension Cable
8. IR LED Ring
9. PoE Converter set (Module, DC Power Yā€Cable, RJā€45 Cable, and PoE Screw x 3)
10. Installation Sticker
11. GV-IPCAM H.264 Software DVD
12. GV-Fisheye IP Dome Hardware Installation Guide
13. GV-NVR Software DVD
14. GV-NVR Quick Start Guide

Last Updated March 19, 2015
