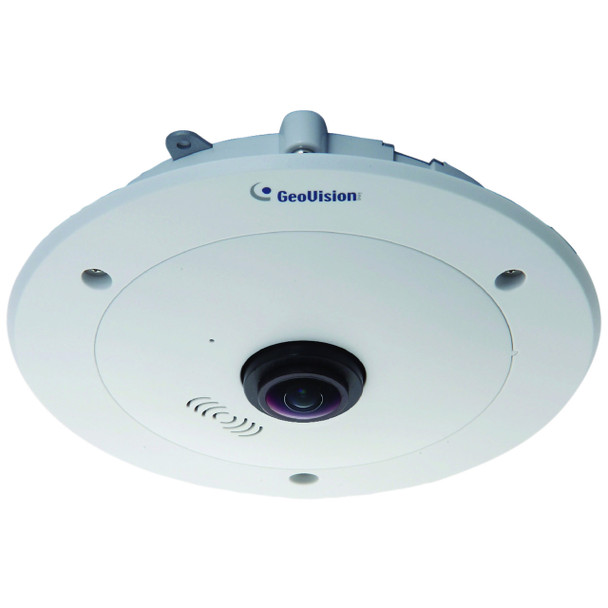

Geovision GV-FE2301 2 Megapixel Fisheye IP Camera

  • Geovision GV-FE2301 Fisheye IP Camera Surface Mount
  • Geovision GV-FE2301 Fisheye IP Camera Top view
  • Geovision GV-FE2301 Fisheye IP Camera in-ceiling
  • Geovision GV-FE2301 Functions
  • Geovision GV-FE2301 Dimensions
  • Geovision Fisheye Tilting Wall Mount
  • Geovision Electrical Box Adapter Mount

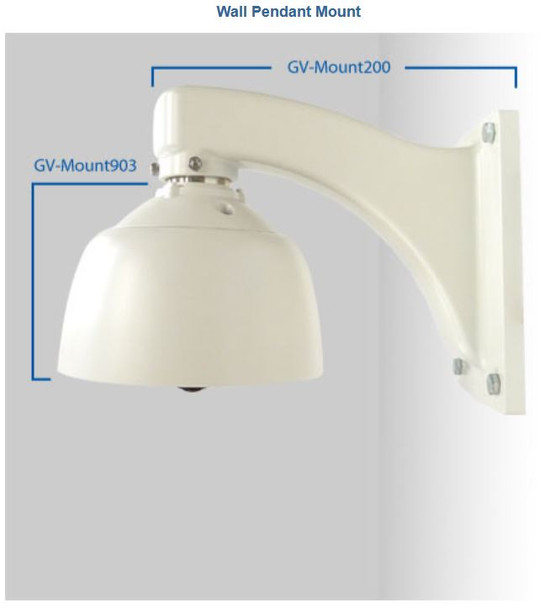

  • Geovision Pendant Wall Mount Bracket
  • Geovision Pendant Wall Mount with box plus Pole Adapter
  • Geovision Pendant Wall Mount Pole Adapter
  • Geovision Concave Pendant Wall Mount

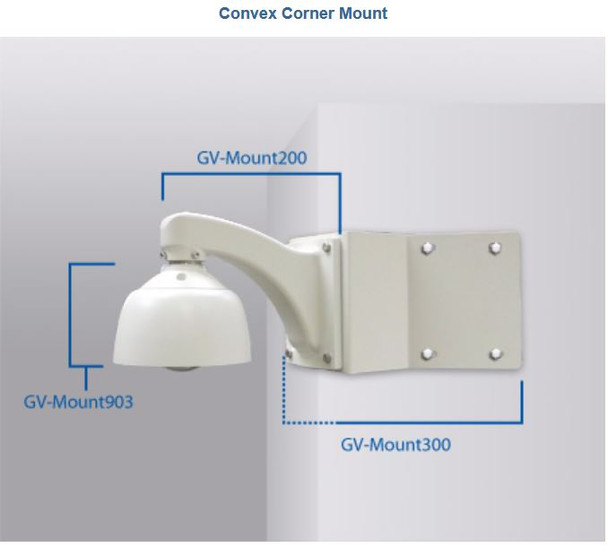

  • Geovision Convex Pendant Wall Mount with Box
  • Geovision Convex Pendant Wall Mount

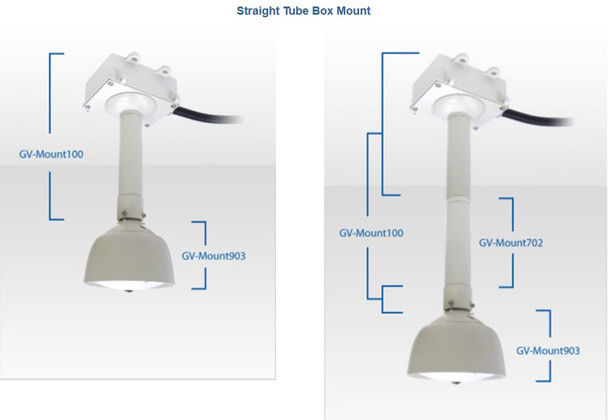

  • Geovision Tube Mount with Dome Cover and Box
  • Geovision Tube Mount with Dome Cover

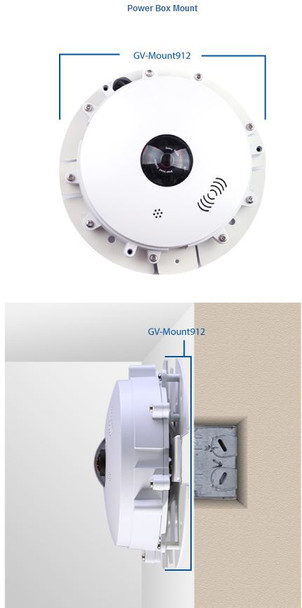

  • Geovision Fisheye Electrical Power Box Adapter
Price:
$290.00
SKU:
GV-FE2301
Brand:
Shipping:
Calculated at checkout
Quantity:


Product Description

Geovision GV-FE2301 2 Megapixel Fisheye IP Camera is a purpose built network security camera developed to delivering 360 degree Fisheye or 180 degree Panoramic IP surveillance. The units include a specialized lens and de-warping function that allows various effective viewing methods. Geovision GV-FE2301 is a color only model with Electronic Day/Night and WDR (Wide Dynamic Range) functions. This unit is designed for indoor installation on a wall, ceiling or possibly floor for some specialized applications. The device which resembles a fly saucer is packed with cutting edge technology that includes H.264 and MJPEG streaming, built-in web server, numerous viewing orientations, Digital PTZ and more. On-board Two Way Audio with Mic plus Speaker to local recording for a potentially all-in-one IP surveillance system the units are very capable. Geovision GV-NVR software is also included FREE and regardless the IP camera supports diverse monitoring options.


Geovision GV-FE2301 Main Features:

  • 2MP HD progressive scan CMOS Sensor
  • H.264 and MJPEG Streaming
  • Real-motion 15fps (1440 x 1376) 2 Megapixel
  • Digital Day/Night, Wide Dynamic Range (WDR), Digital Noise Reduction (2DNR)
  • Complete 360° and 180° panorama surveillance
  • Micro SD card slot (SD/SDHC) for local storage
  • Digital Object Tracking, Virtual PTZ function, Auto Pan Function
  • Web Server and Dewarping allows complete on-board video system management
  • Multiple Users can Access Live and Playback Video in any angle or zoom
  • Two Way Audio with on-board microphone and speaker
  • Alarm I/O with sensor input and relay output
  • 12VDC, 24VAC or PoE (IEEE 802.3af) PoE input
  • Privacy mask, Visual automation, Tampering alarm, Text overlay
  • Web Interface Supports 31 Languages
  • ONVIF (Profile S) conformance
  • 12VDC, 24VAC or PoE (IEEE 802.3af) Power input
  • Operating Temperature: 0 °C ~ 50 °C (32 °F ~ 122 °F)
  • Dimensions:
  • Hard-Ceiling Mount ø 160 x 47.66 mm (6.30” x 1.88”)
  • Body In-Ceiling Mount ø 164 x 47.66 mm (6.46” x 1.88”)
  • Cable Dimensions: Cable Length 1 m (3.28 ft.) Cable Diameter ø 8 mm (0.31“)
  • Maximum Connector Dimensions: Diameter ø 28.5 mm (1.12”)
  • Weight 650 grams (1.43 lbs.)



Fisheye 360 and 180 Degree HD Surveillance:
The Geovision GV-FE2301 is equipped with a 1/2.5" Progressive Scan 2 Megapixel CMOS sensor and delivers up to 15fps (real-motion) at 1440 x 1376 resolution. Selectable H.264 or MJPEG Streams and G.711 or AAC audio streaming is optional. Image Enhancements beyond just WDR, like Defog to settings for De-noise, Shutter Speed, Contrast, WB, BLC and more are all at your control. The unit allow both 180 and 360 degree Panoramic Viewing with a variety of intelligent methods like split screen viewing for different regions of the image, Digital PTZ and de-warping included via GV-NVR or even directly from the web interface. Low Lux abilities and digital day/night help improve surveillance in low lighting.


Intelligent Functionality:
The GV-FE2301 Geovision Fisheye IP Camera is a smartly designed unit incorporating a wide range of desired security features for easy adaptability or stand-alone capabilities. The units provide a full array of supported IT network protocols like HTTPs, UPNP, DynDNS, PSIA, ONVIF, QOS, RTSP, FTP and beyond. In addition to on-board two way audio with microphone and speaker, these units likewise offer Alarm input/output interface for external sensors and relay device control. All sorts of professional operations are also achievable including Motion Detection, Tampering Alarm, Virtual PTZ, Digital PTZ and Auto Scan PTZ to Text Overlay, Visual Automation, Picture-in-Picture, Playback and more. Optional Local SD Card Recording also enables the device as a self-contained surveillance system.

Simply Installation:
The Geovision GV-FE2301 Fisheye 2MP IP Camera is easy to install on your wall or ceiling and includes the appropriate body covers to complete either method. Additionally there is a wide assortment of optional Pendant, Wall Mount, Dome Housings, Adapters and Brackets for nearly any install request. The Device even accepts 12VDC, 24VAC or PoE (Power over Ethernet) power sources. The device's web interface is also full featured enabling easy installation and the FREE GV-NVR software allows a completely professional IP Camera System. ONVIF Complaint this device can be supported by third party security systems.



Included in the Box:

1. Fisheye Camera
2. Camera Cover (Hard Ceiling Mount)
3. Screw (Hard Ceiling Mount) x 3
4. Plastic Screw Anchor x 3
5. Camera Cover (In-Ceiling Mount)
6. Screw (In-Ceiling Mount) x 3
7. Support Bracket x 3
8. Torx Wrench
9. GV‐IPCAM H.264 Software DVD
10. GV‐Fisheye IP Camera Quick Start Guide
11. GV‐NVR Software DVD
12. GV‐NVR Quick Start Guide



Last Updated March 18, 2015
