Geovision GV-FER5303 5MP Outdoor IR Fisheye IP Camera

Write a Review
Calculated at Checkout
  • Geovision GV-FER5303 5MP Outdoor IR Fisheye IP Security Camera

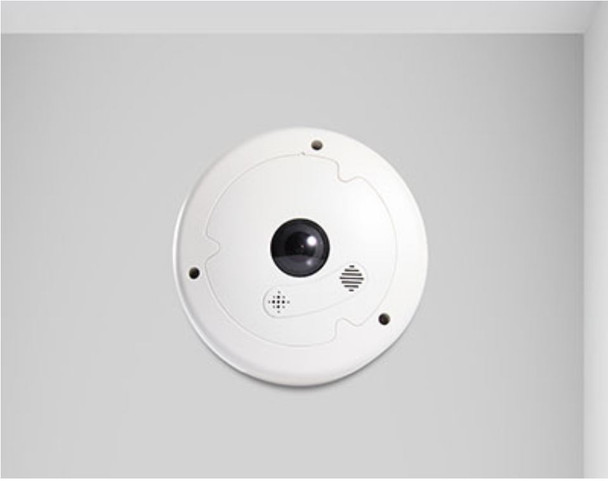

  • Geovision GV-FER5303 Fisheye IP Security Camera Top View (No IR)
  • Geovision Surface Mount Rugged Fisheye IP Camera with no IR Ring
  • Geovision Fisheye Picture in Picture Mode
  • Geovision Digital Object tracking
  • Megapixel Source Image Fisheye Security Camera
  • Geovision GV-FER5303 5MP Outdoor IR Fisheye IP Camera
  • Geovision GV-FER5303 Feature Diagram

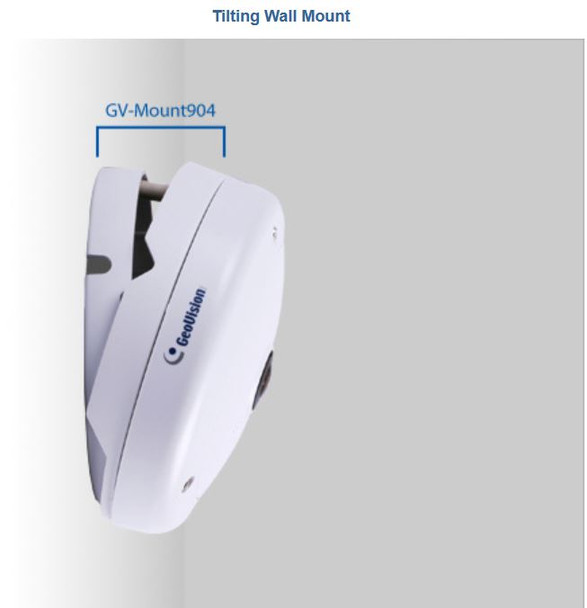

  • Geovision Fisheye Tilting Wall Mount
  • Geovision Fisheye Wall Mount Bracket

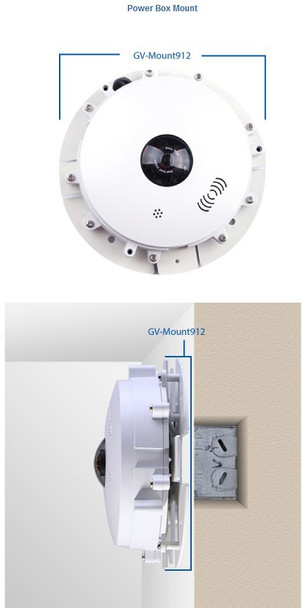

  • Geovision Fisheye Electrical Power Box Adapter
  • Geovision Fisheye Pendant Wall Mount Bracket
  • Geovision Fisheye Pendant Wall Mount with Concave Wall Bracket
  • Geovision Fisheye Pendant Wall Mount with Convex Wall Bracket
  • Geovision Fisheye Pendant Wall Mount with Convex Wall Bracket and Box
  • Geovision Fisheye Pendant Wall Mount with Pole Mount Adapter and Box
  • Geovision Fisheye Pendant Wall Mount with Pole Mount Adapter
  • Geovision Fisheye Pendant Straight Tube Mount with Box

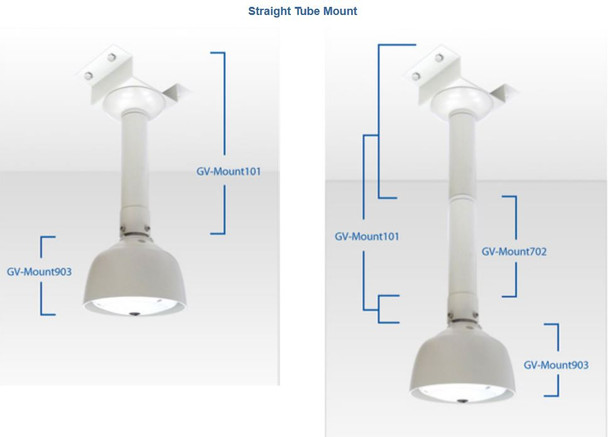

  • Geovision Fisheye Pendant Straight Tube Mount


Geovision GV-FER5303 5MP Outdoor IR Fisheye IP Camera is the latest and greatest of designs for 360 or 180 Panoramic IP Surveillance. Built with a 5 Megapixel Sensor the unit includes Day/Night function including an innovative IR Ring that enables 360 degree IR Illumination for absolute night vision. This innovation alone introduces a new era in Fisheye IP Security Cameras, but the Geovision GV-FER5303 Fisheye IP Camera integrates countless other technologies for form a powerful solution capable of operating as a stand-alone video management system or easily integrate with third party ONVIF compliant security systems. Built tough, this unit includes an IP67 weatherproof rating and IK10 high impact, vandal resistant design. In-depth technology to a wide selection of optional hardware mounting accessories, these units are an ideal solution for a wide range of IP Surveillance applications.


Geovision GV-FER5303 Main Features:

  • 1/2.5" progressive scan CMOS
  • Single stream from H.264 and MJPEG
  • 10fps at (2560 x 1920) 5 Megapixel
  • True Day/Night (w/ IR-cut filter)
  • IR ring w/IR distance up to 10 meters (32.81 ft.)
  • Local Video Storage via micro SD card slot (SD/SDHC)
  • Superb 360° and 180° panorama viewing
  • Any Viewing angle and zoom, by multiple users including playback
  • Two-way audio w/Built-in Microphone and Speaker
  • WDR (Wide Dynamic Range), 2DNR (Digital Noise Reduction), Defog
  • Virtual PTZ function, Auto Pan Function, Digital Object Tracking
  • Tampering alarm, Privacy mask, Visual automation, Text overlay
  • Multi-Language (31) Web interface
  • ONVIF (Profile S) Compliant
  • Operating Temperature -30°C ~ 50°C (-22°F ~ 122°F)
  • Weatherproof IP67 and IK10 Vandal Resistant Casing
  • Power: 12VDC, 24VAC or PoE (IEEE 802.3af)
  • IR LED ring: 12VDC (Includes PoE Adapter)
  • Max. Power Consumption 22 W
  • Dimension Hard-Ceiling Mount (w/IR LED Ring) Ø 175mm x 48.36mm (6.89” x 1.93”)
  • Cable Length 1 meter (3.28 ft.)
  • Cable Diameter Ø 6.2mm (0.24”)
  • Maximum Connector Diameter Ø 30mm (1.18”)
  • Weight 960 grams (2.12 lbs.)



Unfailing, 360 Degree Megapixel HD IP Surveillance:
Delivering comprehensive area coverage the modernized Geovision GV-FER5303 Outdoor IR Fisheye IP Cameras include all of the latest features in 360 and 180 degree Panoramic Surveillance Systems. Outfitted with a progressive scan 5 megapixel CMOS image sensor these units offer MJPEG or H.264 video streaming at up to 10fps. Enhanced imaging performance is provided thanks to a mechanical IR Cut-filter for true Day/Night as well as advancements like WDR (Wide Dynamic Range) or DNR (Digital Noise Reduction) help further ensure optimal video clarity. Night time viewing is also now guaranteed thanks to the all-new IR Ring concept that provides over 10 meters of IR Illumination in a 360 degree spread. All of this combined with in-depth video configurations to help customize and adapt to all sorts of lighting conditions, these units work great practically anywhere.


On-board Intelligence:
Layers of technology converge in the latest Geovision IR Fisheye IP Camera series. These units allow a complete video security and monitoring solution thanks to built-in detection methods to local recording via SD Card. Complete system management including viewing, Digital PTZ, search, playback and export can be achieved with a single Fisheye IP camera alone. IT Administrators will appreciate the wide range of network protocols while all users will enjoy a feature rich, yet easy to navigate web interface. The device is accented with deep functionality in all major aspects and added benefits from Defog to built-in microphone and speaker for two way communication hardly leave many, if any features to desire. Common IP camera attributes like motion detection or privacy masking are obvious, but total 360° and 180° panorama viewing for multiple users on live or recorded video to complete Digital PTZ, Auto Pan or Digital Object Tracking abilities are simply outstanding advantages.


Smart Design, Flexible Installation:
The Geovision GV-FER5303 5 Megapixel IR Fisheye IP Cameras give users and installers alike an easy to adapt, install and operate 360/180 degree surveillance system solution. These units of course have benefits like ONVIF compliance, but provided Free of charge the Geovision GV-NVR is an amazingly well developed Network Video Recorder Software for professional results. Other aspects like physical integration are also completed with ease thanks to multiple power input options like 12VDC, 24VAC or IEEE 802.3af PoE. At no extra cost a surface and recessed mounting kit is also included, yet mounting accessories of every type will ensure that no matter what type of installation you’re facing, there is a fit for it. Select from optional Pendant and Wall Mount Brackets to a Tilting Wall Mount or electrical box adapter and the perfect placement will be simple and effective. Able to withstand extreme low temperatures and harsh environments of all kinds, these sleek devices boast an IP67 weatherproof rating plus IK10 high impact, vandal proof design promising maximum protection for your investment. All of this and more make the Geovision GV-FER5303 Fisheye IR Security Cameras a best in class choice for professional surveillance systems.


In the Box:

1. Fisheye Camera
2. Camera Cover (Hard Ceiling Mount)
3. Screw (Hard Ceiling Mount) x 3
4. Plastic Screw Anchor x 3
5. Camera Cover (In-Ceiling Mount)
6. Screw (In-Ceiling Mount) x 3
7. Support Bracket x 3
8. Torx Wrench
9. Waterproof Rubber
10. IR LED Ring
11. IR Power Adapter (DC 12V, 3.5A)
12. Power Cable
13. Terminal Block x 2
14. Installation Sticker
15. Silica Gel Bag and Adhesive Tape x 2
16. Cable Connector
17. Power Adapter (DC 12V, 1.25A)
18. GV-IPCAM H.264 Software DVD
19. GV-Fisheye IP Dome Hardware Installation Guide
20. GV-NVR Software DVD
21. GV-NVR Quick Start Guide


Last Updated March 21, 2015
