Geovision GV-FE5302 5 Megapixel 360 Fisheye IP Camera

  • Geovision GV-FE5302 5 Megapixel Fisheye IP Camera In-ceiling
  • Geovision GV-FE5302 Fisheye IP Camera Surface
  • Geovision GV-FE5302 Fisheye IP Camera flush recessed
  • Geovision GV-FE5302 Fisheye IP Camera top view

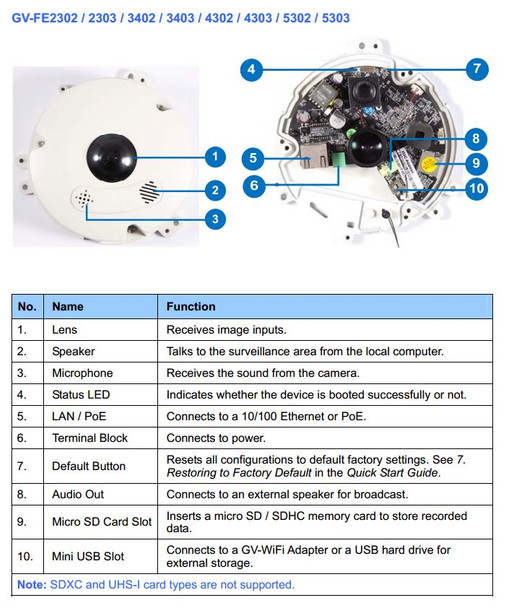

  • Geovision GV-FE5302 Fisheye Camera Function Diagram
  • Geovision GV-FE5302 Surface Mount Dimensions

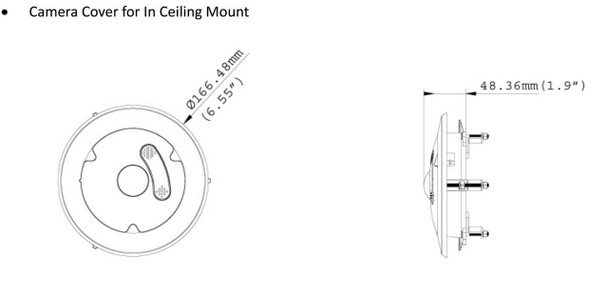

  • Geovision GV-FE5302 In-Ceiling Mount Dimensions
  • Geovision GV-FE5302 Surface Mount Fisheye Cover
  • Geovision Fisheye Tilting Wall Mount
  • Geovision Wall Mount Bracket
  • Geovision Fisheye Electrical Power Box Adapter
  • Geovision Pendant Wall Mount
  • Geovision Pendant Wall Mount with Concave Wall Adapter
  • Geovision Pendant Wall Mount with Convex Wall Adapter and Back Box
  • Geovision Pendant Wall Mount with Convex Wall Adapter
  • Geovision Pendant Wall Mount with Pole Mount Adapter and Back Box
  • Geovision Pendant Wall Mount with Pole Mount Adapter
  • Geovision Pendant Straight Tube Mount with Back Box
  • Geovision Pendant Straight Tube Mount
Calculated at checkout

Product Description

Geovision GV-FE5302 5MP Fisheye IP Camera is a high powered, 360 degree surveillance solution for professional IP video security systems. The models includes up to 5 megapixel resolution at 10fps and provides detailed coverage in a full 360 degrees. The model is equipped with a true day/night operation, digital noise reduction and Wide Dynamic Range (WDR) for optimal video surveillance in a wide range of lighting conditions. The device is likewise outfitted with a wide range of security and network technologies benefiting simple to complex security camera system requirements. Accessory WiFi interface, Local Recording, Built-in Dewarping, Two way Audio, Alarm I/O, multiple mounting and power options the unit practically has everything you could need for any installation.


Geovision GV-FE5302 Main Features:

  • 1/2.5" progressive scan CMOS
  • Video Streaming in H.264 or MJPEG
  • Up to 10fps at (2560 x 1920) 5 Megapixel
  • Day/Night (w/removable IR-cut filter)
  • Mini USB slot for WiFi Adapter or USB hard drive (up to 2TB)
  • Micro SD card slot (SD/SDHC) for local storage
  • 360° and 180° panorama surveillance
  • Playback and Viewing from any view angle and zoom level
  • Two-way audio, microphone and speaker built-in
  • Wide Dynamic Range (WDR), Digital Noise Reduction (DNR) and Defog
  • Digital Object Tracking, Virtual PTZ function, Auto Pan Function
  • Tampering alarm, Privacy mask, Visual automation, Text overlay
  • 31 languages on Web interface
  • ONVIF (Profile S) conformance
  • Vandal Resistant, High Impact IK10
  • 12VDC, 24VAC or PoE (IEEE 802.3af) Power Input
  • Operating Temperature: 0 °C ~ 50 °C (32 °F ~ 122 °F)
  • Dimensions: Hard-Ceiling Mount Ø 160.25 x 48.36 mm (6.31” x 1.93”)
  • In-Ceiling Mount Ø 166.48 x 48.36 mm (6.55” x 1.93”)
  • Weight 410 grams (0.9 lbs)


5 Megapixel Fisheye/Panoramic IP Surveillance:
The Geovision GV-FE5302 5MP Fisheye IP Cameras are designed for indoor applications desiring complete area coverage and excellent detail. The unit enables up to 10fps video streaming in H.264 or MJPEG and includes a variety of image settings and enhancements. Wide Dynamic Range (WDR) helps overcome bright and dark areas in a single scene while Digital Noise Reduction (DNR) works to reduce image noise such as in low light conditions. The True Day/Night Operation of this model also helps its ability to provide low lux surveillance. Geovision GV-FE5302 includes powerful and professional security camera functions whether it be used alone or as part of a greater security camera system.


Smart Functions and Professional Operations:
From internal to external design, hardware to software capabilities the Geovision GV-FE5302 is one of the most capable Fisheye IP Cameras on the market. Its wide diversity for stand-alone operations including detection methods and local recording to Geovision Surveillance System and third party IP camera integration promise excellent results. The device includes all sorts of desirable features from Alarm I/O or Two Way Audio to advanced monitoring abilities with in-depth functionality from IP camera alone. As example one can not only use an SD card, but the GV-FE5302 cam attach an external USB hard drive for massive, long-term local storage. How about connectivity? The unit can use a traditional hard wired connection or take advantage of the GV-WiFi Adapter for Wireless communications.


Easy Install and Use for Powerful Video Security:
Geovision GV-FE5302 5MP Fisheye IP Camera is quite easy to install, first off because it allows 12VDC, 24VAC or PoE (Power over Ethernet) easily adapting to all common installation requirements. The device further has both a surface mount and recessed (in-ceiling) case included, while numerous accessory mounts and adapters are available as options. Flexible power options these units allow 12VDC, 24VAC or PoE input making install abilities even for agile. Easy integration with the FREE Geovision GV-NVR application and other Geovision Software solutions or third party IP Camera system via ONVIF compliance. The unit's web interface is easy to navigate, configure and use for all primary monitoring needs.


What is Included:
Fisheye Camera
Camera Cover (Hard Ceiling Mount)
Screw (Hard Ceiling Mount) x 3
Plastic Screw Anchor x 3
Camera Cover (In-Ceiling Mount)
Screw (In-Ceiling Mount) x 3
Support Bracket x 3
Torx Wrench
Mini USB Extension Cable
10. Installation Sticker
11. Power Adapter
GV-IPCAM H.264 Software DVD
GV-Fisheye IP Dome Hardware Installation Guide
GV-NVR Software DVD
GV-NVR Quick Start Guide

Last Updated March 19, 2015
