Geovision

Geovision GV-BX140DW WDR Pro Megapixel IP Security Camera

Write a Review
SKU:
GV-BX140DW
Shipping:
Calculated at Checkout
  • Geovision GV-BX140DW WDR Pro Day/Night 1.3 Megapixel IP Security Camera
  • Geovision GV-BX140DW rear panel

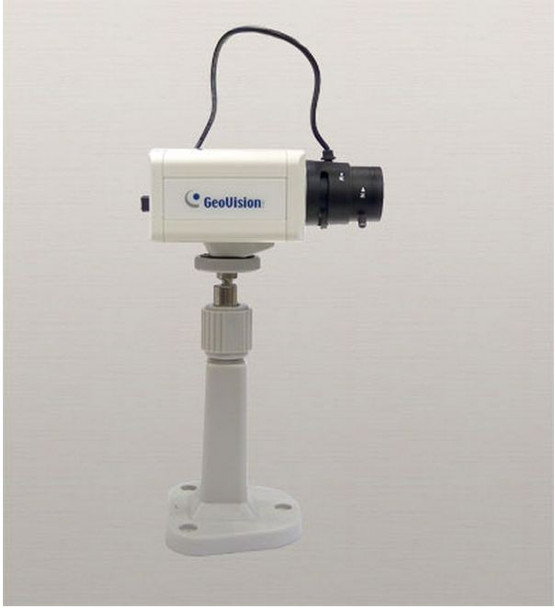

  • Geovision GV-BX140DW desktop mounting
  • Geovision GV-BX140DW ceiling mounting
  • Geovision GV-BX140DW wall mounting
  • Geovision GV-BX140DW WDR Pro Megapixel IP Security Camera
  • Geovision GV-BX140DW WDR Pro Megapixel IP Security Camera
$305.00

Description

Geovision GV-BX140DW WDR Megapixel IP Security Camera is an superior camera for applications and environments with challenging lighting conditions. The units features a True Wide Dynamic Range (WDR) progressive scan CMOS sensor and provides up to 1 megapixel (1280 x 720) Video Surveillance. The Geovision GV-BX140DW Megapixel IP Camera also includes True day/night operation with removable IR cut-filter for day or night surveillance. The Geovision GV-BX140DW IP Security Camera in addition to best in class image clarity also provides full frame rate (30fps) video streaming, with Dual streaming options for MJPEG and H.264 codecs. The unit is supplied with a CS mount Varifocal IR corrected 2.8-12mm Megapixel lens.
The Geovision GV-BX140DW WDR Pro Megapixel IP Camera is well suited for indoor or outdoor (when used with camera enclosure) surveillance applications. The unit has a diverse set of professional features including integrated  microphone with external two way audio connections. The unit also provide a TV composite video output for connection to DVRs or monitors and Digital I/O for external devices. The Geovision WDR pro IP Security Cameras also offer flexible installation with 12VDC or Power over Ethernet (PoE) as well as ONVIF universal compliance. The Geovision GV-BX140DW Megapixel IP Camera is the perfect solution for demanding security camera systems.

Geovision GV-BX140DW Main Features:

  • 1 megapixel progressive scan Wide dynamic range CMOS
  • Dual streams from H.264 and MJPEG
  • Up to 30 fps at 1280 x 720
  • Built-in / external microphone
  • 2-way audio
  • One sensor input and alarm output
  • TV-out support
  • Memory Card Slot
  • Wide Dynamic Range pro (WDR pro)
  • Motion detection
  • Tampering alarm
  • Privacy mask
  • IP address filtering
  • DC 12V / PoE
  • Removable IR-cut filter for Day/Night function
  • Varifocal megapixel lens
  • Supports iPhone, iPad, Android & 3GPP
  • 31 languages on Web interface
  • ONVIF conformant


Geovision GV-BX140DW Specifications

Camera
Image Sensor 1/3” progressive scan CMOS
Picture Elements 1280 (H) x 720 (V)
Color 0.2 Lux at F/1.4
Minimum Illumination B/W 0.08 Lux at F/1.4
IR ON 0 Lux
Shutter Speed Automatic
White Balance Automatic, Manual(2800K ~ 8500K)
Gain Control Automatic
S/N Ratio 50 dB
WDR Pro Yes(with WDR sensor)
Lens
Megapixel Yes
Day/Night Yes(with removable IR-cut filter)
Lens Type Varifocal
Focal Length 2.8 ~ 12mm
Maximum Aperture F/1.4
Mount CS Mount
Image Format 1/3”
Focus Manual(w /lock)
Operation Zoom Manual(w /lock)
Iris Fixed
Max. Torque (Focus/ Zoom Screws) 0.049N.m
Operation
Video Compression H.264, MJPEG
Video Stream DualstreamsfromH.264 and MJPEG
Frame Rate
30 fps at 1280 x 720
* The frame rate and the performance may vary depending on the number of connections and data
bitrates(different scenes).
Image Setting Brightness, Contrast, Sharpness, Gamma, White Balance, Flicker-less, Image Orientation, Shutter Speed,
Defog
Audio Compression G.711, AAC (16 kHz/ 16 bit) * AAC is only supported byGV-SystemV8.5 or later
Two-way Audio Yes
Sensor Input 1 Input(Dry Contact)
Alarm Output 1DigitalOutput(200mA 5VDC)
Video Resolution
Main Stream 16:9 1280 x 720, 640 x 360, 448 x 252
Sub Stream 16:9 640 x 360, 448 x 252
Network
Interface 10/100 Ethernet
Ethernet Protocol HTTP,HTTPS, TCP,UDP, SMTP, FTP,DHCP,NTP,UPnP,DynDNS, 3GPP/ISMA, RTSP, PSIA, SNMP,QoS
(DSCP),ONVIF
Mechanical
Power 2-pin terminal block, PoE
Ethernet RJ-45
Audio 1 In (Using the built-in microphone or externally connecting a microphone)
1Out(Stereo phone jack, 3.5mm/ 0.14 in)
Digital I/O 3-pin terminal block, pitch 2.5mm/ 0.1 in
Auto Iris Not functional
Local Storage Micro SD/SDHC/SDXC memory card slot(for Class 6 card or above)
Connectors
TV-Out BNC connector(640 x 480 resolution)
LED Indicator 2 LEDs: Power, Status
General
Environment Temperature 0 °C ~ 50 °C / 32 °F ~ 122 °F
Humidity 10% to 90% (no condensation)
Power Source 12VDC / PoE
Max. Power Consumption 7 W

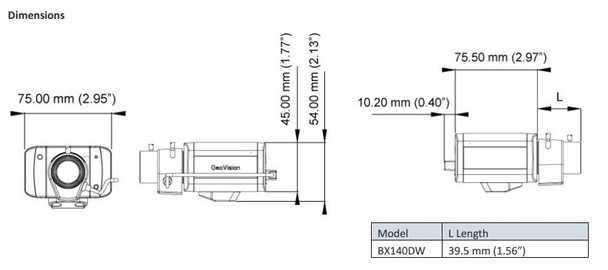

Dimensions(L X W XH) 75.5 x 75 x 54mm/ 3.05 x 2.95 x 2.13 in (without lens)
Weight 321 g / 0.71 lb.
Regulatory CE, FCC, C-Tick, RoHS compliant
Power over Ethernet
PoE Standard IEEE 802.3af Power over Ethernet/ PSE
PoE Power Supply Type End-Span
PoE Power Output Per Port 48VDC, 350mA. Max. 15.4watts
Web Interface
Installation Management Web-based configuration
Maintenance Firmware upgrade through Web Browser or Utility
Access from Web Browser
Camera live view, video recording, change video quality, bandwidth control, image snapshot, digital I/O
control, audio, Picture in Picture, Picture and Picture, Privacy Mask, Visual Automation, Tampering Alarm,
Text Overlay
Language
Arabic / Bulgarian / Czech /Danish /Danish /Dutch / English / Finnish / French /German /Greek /Hebrew /Hungarian /Indonesian /Italian /Japanese / Lithuanian /Norwegian / Persian / Polish / Portuguese / Romanian / Russian / Serbian / Simplified Chinese / Slovakian / Slovenian / Spanish / Swedish / Thai/Traditional Chinese / Turkish
Applications
Network Storage GV-NVR,GV-System, GV-Backup Center, GV-Recording Server
Smart Device Access GV-Eye for Android smartphone, tablet, iPhone, and iPod Touch
GV-EyeHDforiPad
Live Viewing IE,mobile phone
CMS Server support GV-Control Center, GV-Center V2,GV-VSM
