Description

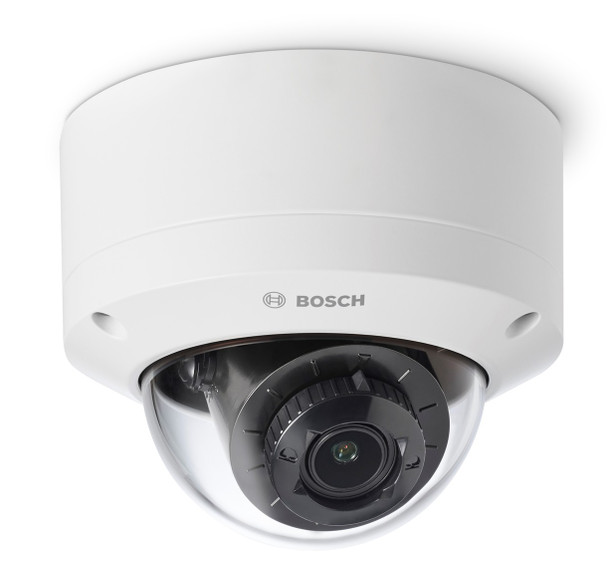

The Bosch IQsight FLEXIDOME indoor 5100i 5MP dome camera is a professional indoor surveillance camera designed for applications requiring more image detail than 1080p while maintaining strong low-light performance, intelligent analytics, and flexible installation. The NDV-5703-A combines 5MP resolution, Starlight camera technology, a 3.2-10.5mm motorized P-iris lens, 120dB WDR, IVA Pro analytics, H.265 compression, electronic image stabilization, two-way audio, edge recording, and Bosch cybersecurity in a compact indoor dome.
With 2592 x 1944 resolution at up to 30fps, the Bosch IQsight FLEXIDOME indoor 5100i NDV-5703-A is ideal for offices, schools, retail spaces, healthcare facilities, commercial interiors, lobbies, corridors, and public indoor areas where enhanced forensic detail is required. The 3.2-10.5mm motorized lens allows the camera to cover wide indoor spaces or zoom in for more focused monitoring of entrances, counters, hallways, or interior choke points.
Bosch Starlight technology helps deliver useful image detail in low-light scenes, while High Dynamic Range up to 120dB improves visibility in challenging lighting conditions. The camera includes Intelligent Defog, privacy masking, automatic image rotation, video watermarking, and gyro-based Electronic Image Stabilization.
Bosch IQsight IVA Pro Buildings and IVA Pro Privacy come included, supporting deep-learning-based person and vehicle detection. Alarm rules include object in field, line crossing, enter/leave field, loitering, follow route, counting, occupancy, condition change, similarity search, and objects stopping or starting to move. Optional licenses expand analytics for perimeter, traffic, appearance, PPE detection, and visual gun detection applications.
The NDV-5703-A supports H.265/H.264/M-JPEG video, Bosch Intelligent Streaming, local microSD storage up to 2TB, PoE Class 3 power, ONVIF Profile S/G/T/M, secure boot, signed firmware, TPM encryption, USB-C wireless commissioning, IP54 protection, IK10 impact resistance, and NDAA compliance.
Key Features:
• Bosch IQsight FLEXIDOME indoor 5100i fixed dome IP camera
• Model: NDV-5703-A
• 5MP resolution, 2592 x 1944
• 3.2-10.5mm motorized P-iris lens
• Starlight low-light camera technology
• High Dynamic Range up to 120dB WDR
• IVA Pro Buildings and IVA Pro Privacy included
• Person and vehicle classification
• Optional IVA Pro analytics licenses supported
• H.265 / H.264 / M-JPEG compression
• Bosch Intelligent Streaming
• Electronic Image Stabilization
• Two-way audio support
• USB-C wireless commissioning support
• Edge recording to microSD up to 2TB
• Secure boot, signed firmware, TPM, and TLS encryption
• ONVIF Profile S, G, T, and M compliant
• IP54 indoor environmental protection
• IK10 impact resistance
• PoE Class 3 power
• NDAA compliant
Technical Specifications Summary:
Camera:
• Resolution: 5MP
• Effective Pixels: 2592 x 1944
• Sensor Type: 1/2.7" CMOS
• Frame Rate: 1fps to 30fps
• Low-Light Technology: Starlight
• Color Sensitivity: 0.044 lux
• Monochrome Sensitivity: 0.010 lux
• Dynamic Range: 120dB WDR
Lens:
• Focal Length: 3.2mm to 10.5mm
• Lens Type: P-Iris, IR-corrected
• Aperture: F1.6
• Zoom / Focus: Motorized
• Horizontal Field of View: 96° to 29°
• Vertical Field of View: 71° to 22°
• Day / Night: Switchable IR-Cut Filter
DORI Coverage:
• Detection: 48m to 200m
• Observation: 19m to 79m
• Recognition: 10m to 40m
• Identification: 5m to 20m
Video:
• Compression: H.265 / H.264 / M-JPEG
• Streaming: Multiple configurable streams
• Intelligent Streaming: Supported
• Camera Latency: <120ms at 5MP30
• Signal-to-Noise Ratio: >55dB
• Upright Mode: Supported
• Privacy Masks: 8
• Electronic Image Stabilization: Supported
Analytics:
• IVA Pro Buildings
• IVA Pro Privacy
• Person and Vehicle Classification
• Object in Field
• Line Crossing
• Enter / Leave Field
• Loitering
• Follow Route
• Counting
• Occupancy
• Condition Change
• Similarity Search
• Objects Stopping or Starting to Move
• Audio Detection
• Optional IVA Pro Perimeter, Traffic, Appearance, PPE, Visual Gun Detection
Storage:
• microSDHC / microSDXC support
• Local Storage: Up to 2TB
• 5-second pre-alarm recording
• Continuous, ring, alarm, event, and schedule recording
• Industrial SD card health monitoring support
Network & Security:
• Ethernet: 10/100BASE-T
• ONVIF Profile S, G, T, M
• Platform: CPP14
• TPM: AES/CBC 256-bit, RSA 4096-bit
• Encryption: TLS 1.2 / TLS 1.3, AES 128/256
• Local Storage Encryption: XTS-AES
• Firmware Protection: Signed firmware, secure boot
Audio & I/O:
• Audio Line In: 0.6Vrms max
• Audio Line Out: 1.0Vrms at 10kΩ typical
• Audio Streaming: Full duplex / half duplex
• USB: USB 2.0 Type-C for wireless setup dongle
Power:
• PoE: IEEE 802.3af / 802.3at Type 1, Class 3
• Typical / Maximum Power: 5.2W / 6.2W
Environmental & Mechanical:
• Protection Rating: IP54
• Impact Rating: IK10
• Operating Temperature: -20°C to +50°C
• Housing: Polycarbonate, re-paintable
• Bubble: Clear polycarbonate with anti-scratch coating
• Dimensions: 148mm x 122mm
• Weight: 920g
• Color: RAL 9003
• Mounting: Surface mount plate included
• Sustainability: PVC-free
• Country of Origin: Thailand
Model:
• NDV-5703-A – 5MP Indoor Dome, 3.2-10.5mm Lens
Compatible Accessories:
• NDA-5070-IC – In-Ceiling Mount Kit
• NDA-5070-PLEN – In-Ceiling Plenum Kit
• NDA-5070-LWMT – L-Shape Wall Mount
• NDA-5080-PIP – Pendant Interface Plate
• NDA-5070-PC – Paintable Cover
• NDA-5070-CBL – Clear Replacement Bubble
• NDA-5070-TBL – Tinted Bubble
• NDA-U-CBB – Conduit Back Box
• NDA-U-CMT – Corner Mount Adapter
• NDA-U-PMAS – Pole Mount Adapter, Small
• NDA-U-PMAL – Pole Mount Adapter, Large
• NDA-U-PSMB – Pendant Wall/Ceiling Mount SMB
• NDA-U-WMT – Pendant Wall Mount
• NDA-U-WMTG – Pendant Wall Mount, Gang Box
• NDA-U-PMT – Pendant Pipe Mount, 12"
• NDA-U-PMTE – Pendant Pipe Extension, 20"
• NDA-U-PMTG – Pendant Pipe Mount, Gang Box
• NDA-U-PMTS – Pendant Pipe Mount, 4"
• NPD-3001-WAP – Portable Wireless Installation Tool
• NPD-5001-POE – 15W Single-Port PoE Midspan
• NPD-5004-POE – 4-Port PoE Midspan
• MSD-064G – 64GB Industrial microSD Card
• MSD-128G – 128GB Industrial microSD Card
• MSD-256G – 256GB Industrial microSD Card
• NCA-WLAN-NA – Wireless Installation Dongle, North America
Optional Software & Licensing:
• MVC-IVA-PER – IVA Pro Perimeter
• MVC-IVA-TRA – IVA Pro Traffic
• MVC-IVA-PPE – IVA Pro PPE
• MVC-IVA-APC – IVA Pro Appearance
• MVC-IVA-VGD – IVA Pro Visual Gun Detection
