Description
The Bosch IQsight FLEXIDOME indoor 5100i 2MP dome camera is a professional indoor IP security camera designed for demanding commercial, institutional, education, healthcare, retail, and general building surveillance applications. The NDV-5702-A combines Full HD 2MP video, Starlight low-light imaging, a motorized 3.2-10.5mm P-iris lens, high dynamic range, IVA Pro analytics, H.265 compression, electronic image stabilization, two-way audio support, edge recording, and Bosch cybersecurity features in a compact indoor dome platform.
With 1920 x 1080 resolution and up to 60fps performance, the Bosch IQsight FLEXIDOME indoor 5100i NDV-5702-A is well suited for indoor areas requiring smooth motion capture and reliable image detail. The 3.2-10.5mm motorized varifocal lens allows flexible scene adjustment from wide coverage to tighter views, making it a strong choice for entrances, corridors, lobbies, classrooms, offices, retail spaces, reception areas, and interior public spaces.
Bosch Starlight technology improves low-light performance, while the 2MP model supports up to 144dB HDR for scenes with bright windows, backlit entrances, shadows, mixed lighting, and changing indoor illumination. The camera also includes Intelligent Defog, image rotation, privacy masking, video watermarking, and gyro-based Electronic Image Stabilization for improved image usability.
Integrated Bosch IQsight IVA Pro Buildings and IVA Pro Privacy support intelligent detection and classification of people and vehicles. The camera can trigger alarms for object in field, line crossing, enter/leave field, loitering, follow route, counting, occupancy, condition change, similarity search, and objects stopping or starting to move. Optional analytics licenses expand functionality for IVA Pro Perimeter, Traffic, Appearance, PPE, Visual Gun Detection, and other advanced applications.
The NDV-5702-A includes H.265/H.264/M-JPEG streaming, Bosch Intelligent Streaming, local microSD edge recording up to 2TB, built-in TPM security, secure boot, signed firmware, TLS encryption, ONVIF Profile S/G/T/M support, USB-C wireless commissioning support, IP54 protection, IK10 impact resistance, and NDAA compliance.
Key Features:
• Bosch IQsight FLEXIDOME indoor 5100i fixed dome IP camera
• Model: NDV-5702-A
• 2MP Full HD resolution, 1920 x 1080
• Up to 60fps video performance
• 3.2-10.5mm motorized P-iris lens
• Starlight low-light camera technology
• High Dynamic Range up to 144dB WDR
• IVA Pro Buildings and IVA Pro Privacy included
• Person and vehicle classification
• Optional IVA Pro analytics licenses supported
• H.265 / H.264 / M-JPEG compression
• Bosch Intelligent Streaming
• Electronic Image Stabilization
• Two-way audio support
• USB-C wireless commissioning support
• Edge recording to microSD up to 2TB
• Secure boot, signed firmware, TPM, and TLS encryption
• ONVIF Profile S, G, T, and M compliant
• IP54 indoor environmental protection
• IK10 impact resistance
• PoE Class 3 power
• NDAA compliant
Technical Specifications Summary:
Camera:
• Resolution: 2MP Full HD
• Effective Pixels: 1920 x 1080
• Sensor Type: 1/2.8" CMOS
• Frame Rate: 1fps to 60fps
• Low-Light Technology: Starlight
• Color Sensitivity: 0.021 lux
• Monochrome Sensitivity: 0.004 lux
• Dynamic Range: 144dB WDR
Lens:
• Focal Length: 3.2mm to 10.5mm
• Lens Type: P-Iris, IR-corrected
• Aperture: F1.6
• Zoom / Focus: Motorized
• Horizontal Field of View: 105° to 31°
• Vertical Field of View: 57° to 18°
• Day / Night: Switchable IR-Cut Filter
DORI Coverage:
• Detection: 31m to 138m
• Observation: 12m to 55m
• Recognition: 6m to 28m
• Identification: 3m to 14m
Video:
• Compression: H.265 / H.264 / M-JPEG
• Streaming: Multiple configurable streams
• Intelligent Streaming: Supported
• Camera Latency: <70ms at 1080p60
• Signal-to-Noise Ratio: >55dB
• Upright Mode: Supported
• Privacy Masks: 8
• Electronic Image Stabilization: Supported
Analytics:
• IVA Pro Buildings
• IVA Pro Privacy
• Person and Vehicle Classification
• Object in Field
• Line Crossing
• Enter / Leave Field
• Loitering
• Follow Route
• Counting
• Occupancy
• Condition Change
• Similarity Search
• Objects Stopping or Starting to Move
• Audio Detection
• Optional IVA Pro Perimeter, Traffic, Appearance, PPE, Visual Gun Detection
Storage:
• microSDHC / microSDXC support
• Local Storage: Up to 2TB
• 5-second pre-alarm recording
• Continuous, ring, alarm, event, and schedule recording
• Industrial SD card health monitoring support
Network & Security:
• Ethernet: 10/100BASE-T
• ONVIF Profile S, G, T, M
• Platform: CPP14
• TPM: AES/CBC 256-bit, RSA 4096-bit
• Encryption: TLS 1.2 / TLS 1.3, AES 128/256
• Local Storage Encryption: XTS-AES
• Firmware Protection: Signed firmware, secure boot
Audio & I/O:
• Audio Line In: 0.6Vrms max
• Audio Line Out: 1.0Vrms at 10kΩ typical
• Audio Streaming: Full duplex / half duplex
• USB: USB 2.0 Type-C for wireless setup dongle
Power:
• PoE: IEEE 802.3af / 802.3at Type 1, Class 3
• Typical / Maximum Power: 4.8W / 6W
Environmental & Mechanical:
• Protection Rating: IP54
• Impact Rating: IK10
• Operating Temperature: -20°C to +50°C
• Housing: Polycarbonate, re-paintable
• Bubble: Clear polycarbonate with anti-scratch coating

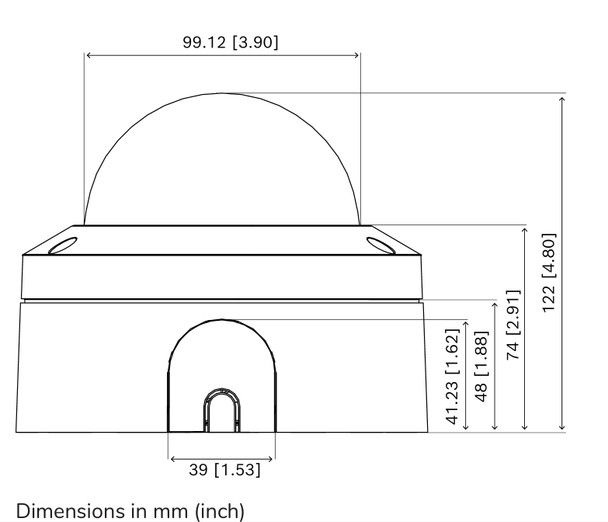

• Dimensions: 148mm x 122mm
• Weight: 920g
• Color: RAL 9003
• Mounting: Surface mount plate included
• Sustainability: PVC-free
• Country of Origin: Thailand
Model:
• NDV-5702-A – 2MP Indoor Dome, 3.2-10.5mm Lens
Compatible Accessories:
• NDA-5070-IC – In-Ceiling Mount Kit
• NDA-5070-PLEN – In-Ceiling Plenum Kit
• NDA-5070-LWMT – L-Shape Wall Mount
• NDA-5080-PIP – Pendant Interface Plate
• NDA-5070-PC – Paintable Cover
• NDA-5070-CBL – Clear Replacement Bubble
• NDA-5070-TBL – Tinted Bubble
• NDA-U-CBB – Conduit Back Box
• NDA-U-CMT – Corner Mount Adapter
• NDA-U-PMAS – Pole Mount Adapter, Small
• NDA-U-PMAL – Pole Mount Adapter, Large
• NDA-U-PSMB – Pendant Wall/Ceiling Mount SMB
• NDA-U-WMT – Pendant Wall Mount
• NDA-U-WMTG – Pendant Wall Mount, Gang Box
• NDA-U-PMT – Pendant Pipe Mount, 12"
• NDA-U-PMTE – Pendant Pipe Extension, 20"
• NDA-U-PMTG – Pendant Pipe Mount, Gang Box
• NDA-U-PMTS – Pendant Pipe Mount, 4"
• NPD-3001-WAP – Portable Wireless Installation Tool
• NPD-5001-POE – 15W Single-Port PoE Midspan
• NPD-5004-POE – 4-Port PoE Midspan
• MSD-064G – 64GB Industrial microSD Card
• MSD-128G – 128GB Industrial microSD Card
• MSD-256G – 256GB Industrial microSD Card
• NCA-WLAN-NA – Wireless Installation Dongle, North America
Optional Software & Licensing:
• MVC-IVA-PER – IVA Pro Perimeter
• MVC-IVA-TRA – IVA Pro Traffic
• MVC-IVA-PPE – IVA Pro PPE
• MVC-IVA-APC – IVA Pro Appearance
• MVC-IVA-VGD – IVA Pro Visual Gun Detection
