Description

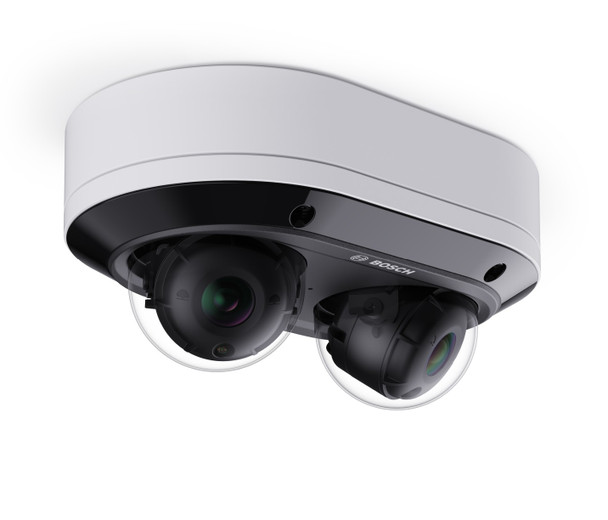

The Bosch IQsight FLEXIDOME dual 7100i IR NDD-7803-AL is a high-resolution dual-directional IP security camera designed to replace two conventional fixed cameras in many corridor, stairwell, corner, entryway, perimeter, and multi-view surveillance applications. With two independently operating 5MP imagers in one compact housing and on a single IP address, the NDD-7803-AL gives security teams flexible dual-directional coverage, a 180° overview, or combined wide and telephoto-style scene monitoring from one installation point.
Each imager in the Bosch IQsight NDD-7803-AL features a motorized 3.2-8.1mm lens with autofocus, allowing each side to be adjusted independently for the required field of view. This makes the FLEXIDOME dual 7100i IR especially useful in locations where two directions need to be monitored but camera count, cabling, licensing, network ports, or installation labor should be reduced.
The 2x5MP configuration captures up to 2592 x 1944 per imager at 30fps with Bosch Starlight technology and HDR X. HDR X helps maintain usable detail in bright and dark areas while reducing the motion blur and artifacts that can affect traditional HDR imaging. This is valuable in entrances, corridors, parking structures, transit areas, and other scenes where people and vehicles move through high-contrast lighting.
The NDD-7803-AL includes orientation-based split IR illumination with four controllable IR zones and 850nm infrared coverage up to 30m / 98ft. Based on whether the camera is mounted on a wall or ceiling, the camera activates the appropriate dedicated LEDs for the mounting orientation. This helps provide precise IR coverage and clearer nighttime images across both views.
Built on Bosch IQsight CPP16, the NDD-7803-AL includes IVA Pro Buildings, IVA Pro Perimeter, and Camera Trainer. The camera supports deep-learning-based person and vehicle detection, 3D auto calibration, line crossing, loitering, object in field, enter/leave field, follow route, idle/removed object, counting, occupancy, condition change, similarity search, 2D tracking, 3D tracking, 3D people tracking, ship tracking, museum mode, tamper detection, loud noise detection, and up to 16 alarm rules per imager. Optional licenses can add IVA Pro Traffic, IVA Pro Appearance, IVA Pro PPE, and IVA Pro Visual Gun Detection.
The Bosch IQsight FLEXIDOME dual 7100i IR NDD-7803-AL also supports H.265/H.264/M-JPEG video, Bosch Intelligent Streaming, local microSD recording up to 2TB, two-way audio, integrated microphone, alarm I/O, audio I/O, ONVIF Profile S/G/T/M, 10/100/1000BASE-T Ethernet, PoE+ power, and strong cybersecurity using Secure Element 3.0 with FIPS 140-3 Level 3, EAL6+, TLS 1.3, secure boot, signed firmware, software sealing, SBOM, and cloud firmware checking.
Designed for harsh environments, the NDD-7803-AL uses an aluminum housing with clear polycarbonate bubbles, IP66/IP67 and NEMA Type 4X protection, IK10 impact resistance, and operation from -40°C to +60°C.
Key Features:
• Bosch IQsight FLEXIDOME dual 7100i IR dual-directional IP camera
• Model: NDD-7803-AL
• Two independent 5MP imagers in one camera
• Single IP address for dual-directional coverage
• 2x5MP resolution, 2592 x 1944 per imager
• Two independently adjustable 3.2-8.1mm motorized lenses
• Flexible dual-directional, 180° overview, wide, or telephoto-style coverage
• HDR X imaging to reduce HDR motion blur and artifacts
• Bosch Starlight low-light technology
• Orientation-based split IR illumination
• Four controllable IR zones
• Built-in 850nm IR up to 30m / 98ft
• IVA Pro Buildings, IVA Pro Perimeter, and Camera Trainer included
• 3D auto calibration
• Up to 16 simultaneous alarm rules per imager
• H.265 / H.264 / M-JPEG compression
• Bosch Intelligent Streaming
• Built-in digital MEMS microphone
• Audio line input/output
• Alarm input/output
• Two-way audio support
• Edge recording to microSD up to 2TB
• ONVIF Profile S, G, T, and M compliant
• CPP16 platform
• Secure Element 3.0 cybersecurity
• FIPS 140-3 Level 3 and EAL6+ security support
• IP66 / IP67 / NEMA Type 4X protection
• IK10 impact resistance
• PoE+ and auxiliary power support
• NDAA compliant
Technical Specifications Summary:
Camera / Imagers:
• Model: NDD-7803-AL
• Camera Type: Dual-directional fixed dome IP camera
• Imagers: Two independently operating imagers
• Sensor Resolution: 5MP approx. per imager
• Effective Pixels: 2592 x 1944 per imager
• Sensor Type: 1/2.8" CMOS
• Pixel Size: 2.0μm
• Low-Light Technology: Starlight
• Color Sensitivity: 0.035 lux
• Monochrome Sensitivity: 0.003 lux
• High Dynamic Range: 120dB HDR X
• Frame Rate: 1fps to 30fps
Lens:
• Lens Quantity: 2 motorized zoom lenses
• Focal Length: 3.2mm to 8.1mm
• Lens Aperture: F1.9 to F3.2
• Iris Control: Fixed iris
• Zoom / Focus Control: Motorized
• Field of View Adjustment: Pan, tilt, roll, autofocus
• Horizontal Field of View: 104° to 37°
• Vertical Field of View: 73° to 28°
Night Vision:
• IR Type: Orientation-based split IR
• IR Function: On / Off / Auto
• IR Zones: 4 controllable zones
• IR Intensity: Manual or automatic
• Built-In IR Distance: 30m / 98ft
• IR Wavelength: 850nm
DORI Coverage:
• Detection: 41m to 156m
• Observation: 16m to 62m
• Recognition: 8m to 31m
• Identification: 4m to 16m
Video:
• Video Compression: H.265 / H.264 / M-JPEG
• Sensor Mode: 30fps HDR X, 2592 x 1944
• Available Resolutions:
- 5MP 4:3: 2592 x 1944
- 3.8MP 16:9: 2592 x 1456
- Lower selectable resolutions down to QVGA
• Streaming: Multiple configurable streams
• Bosch Intelligent Streaming: Supported
• Camera Processing Latency: <120ms
• GOP Structure: IP / IBP / IBBP
• Signal-to-Noise Ratio: >55dB
• Privacy Masks: 8 independent areas
• Intelligent Defog: Supported
• Backlight Compensation: Supported
• Image Rotation: 90° / 180° / 270° including upright mode
• Scene Modes: Standard, Sodium Lighting, Vibrant, Sports & Gaming, Retail, License Plate Recognition, Fast Movement, Sensitivity Boost, Color Only, Backlight
Analytics:
• IVA Pro Buildings
• IVA Pro Perimeter
• Camera Trainer
• 3D Auto Calibration
• Person and Vehicle Classification
• Object in Field
• Line Crossing
• Enter / Leave Field
• Loitering
• Follow Route
• Idle / Removed Object
• Counting
• Occupancy
• Condition Change
• Similarity Search
• Objects Stopping or Starting to Move
• Tamper Detection
• Loud Noise Detection
• 2D Tracking
• 3D Tracking
• 3D People Tracking
• Ship Tracking
• Museum Mode
• Up to 16 Alarm Rules per Imager
• Optional Licensed Analytics: IVA Pro Traffic, IVA Pro Appearance, IVA Pro PPE, IVA Pro Visual Gun Detection
Audio & I/O:
• Integrated Microphone: Single digital MEMS audio sensor
• Audio Line Input: 0.6Vrms max, 40kΩ typical
• Audio Line Output: 1.0Vrms at 10kΩ typical
• Audio Streaming: Full duplex / half duplex
• Audio Compression: G.711, L16, AAC-LC
• Alarm Inputs: 1
• Alarm Outputs: 1
• Surge Protection: 1kV line-to-line, 2kV line-to-ground
• USB: USB 2.0 Type-C for wireless setup dongle
Storage:
• Memory Card Slot: microSDHC / microSDXC / microSD
• Maximum Local Storage: Up to 2TB
• Pre-Alarm Recording: 5 seconds
• Recording Modes: Continuous ring, scheduled, alarm, event
• Industrial SD Card Health Monitoring: Supported
Network & Security:
• Platform: CPP16
• Ethernet: 10/100/1000BASE-T
• ONVIF Profiles: S, G, T, M
• Encryption: TLS 1.3, TLS 1.2, AES 256, AES 128
• Secure Element: RSA 4096-bit, 512-bit ECC, AES/CBC 256-bit
• PKI: X.509 certificates, SCEP, device identity certificate, embedded firewall
• Network Authentication: 802.1x, EAP/TLS, CHAP, Digest Authentication
• Local Storage Encryption: AES-XTS
• Signed Video Framework: MD5, SHA-1, SHA-256, Checksum
• Firmware Protection: Signed firmware, secure boot, software sealing, SBOM, cloud firmware check
• Certified Security Standards: Common Criteria EAL6+ and FIPS 140-3 Level 3
Power:
• PoE Input: PoE+ IEEE 802.3at Type 2, Class 4
• Auxiliary Power: 24VAC ±10% or 12VDC ±10%
• Redundant Power: PoE+ and auxiliary power can be connected simultaneously
• PoE Power Consumption: 11.25W typical / 24.75W maximum
• VAC Power Consumption: 11.05W typical / 24.25W maximum
• VDC Power Consumption: 11.25W typical / 24.55W maximum
Environmental & Mechanical:
• Housing Material: Aluminum with dehumidifying membrane and waterproof connection area
• Bubble Material: Clear polycarbonate

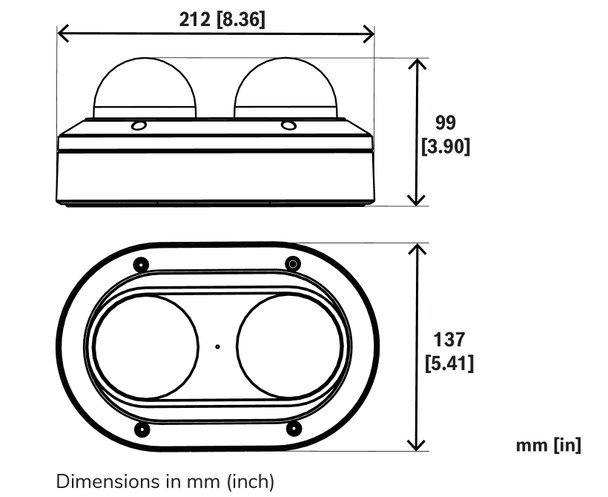

• Dimensions: 99mm x 212mm x 137mm
• Weight: 1.66kg / 3.66lb
• Color: RAL 9003 Signal White
• Pan Range: 0° to 355°
• Tilt Range: -10° to 100°
• Roll Range: 352°
• Mounting Type: Surface-mounted; mounting plate included
• Conduit: 1/2" NPT / M20 side entry
• Operating Temperature: -40°C to +60°C
• Cold Start Temperature: -20°C
• Storage Temperature: -40°C to +70°C
• Impact Protection: IK10
• IP Rating: IP66 / IP67
• Degree of Protection: NEMA Type 4X
Model:
• NDD-7803-AL – Dual Dome 2x5MP, 3.2-8.1mm Lens, IP67 IR
Compatible Accessories:
• NDA-7042-WP – Weather Protector, Dual
• NDA-7042-PIP – Pendant Interface Plate, Dual
• NDA-7042-PIPW – Pendant Interface Plate with Weather Protector, Dual
• NDA-7042-PC – Paintable Cover, Dual, 4 pcs
• NDA-7042-CBL – Clear Bubble, Dual
• NDA-7042-TBL – Tinted Bubble, Dual
• NDA-U-CMT – Corner Mount Adapter
• NDA-U-PMAS – Pole Mount Adapter, Small
• NDA-U-PMAL – Pole Mount Adapter, Large
• NDA-U-PSMB – Pendant Wall/Ceiling Mount SMB
• NDA-U-WMT – Pendant Wall Mount
• NDA-U-WMTG – Pendant Wall Mount, Gang Box
• NDA-U-PMT – Pendant Pipe Mount, 12"
• NDA-U-PMTS – Pendant Pipe Mount, 4"
• NDA-U-PMTE – Pendant Pipe Extension, 20"
• NDA-U-PMTG – Pendant Pipe Mount, Gang Box
• NDA-U-RMT – Pendant Parapet Mount
• NDA-U-PA0 / NDA-U-PA1 / NDA-U-PA2 – Surveillance Cabinet Options
• NCA-WLAN-NA – Wireless Installation Dongle, North America
• VG4-SFPSCKT – Ethernet to SFP Interface Kit
• SFP-2 / SFP-3 / SFP-25 / SFP-26 – Fiber Module Options
• NPD-6001C – 60W Indoor PoE Midspan
• NPD-6001C-E – 60W IP67 Outdoor PoE Midspan
• NPD-6001-I – 60W Industrial PoE Midspan
Optional Software & Licensing:
• MVC-IVA-TRA – IVA Pro Traffic
• MVC-IVA-PPE – IVA Pro PPE
• MVC-IVA-APC – IVA Pro Appearance
• MVC-IVA-VGD – IVA Pro Visual Gun Detection
