Description

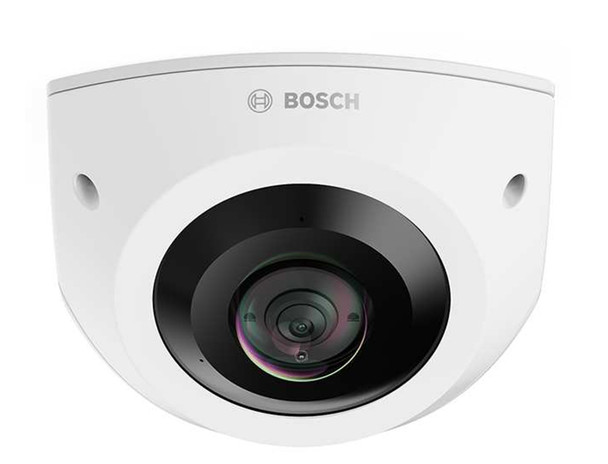

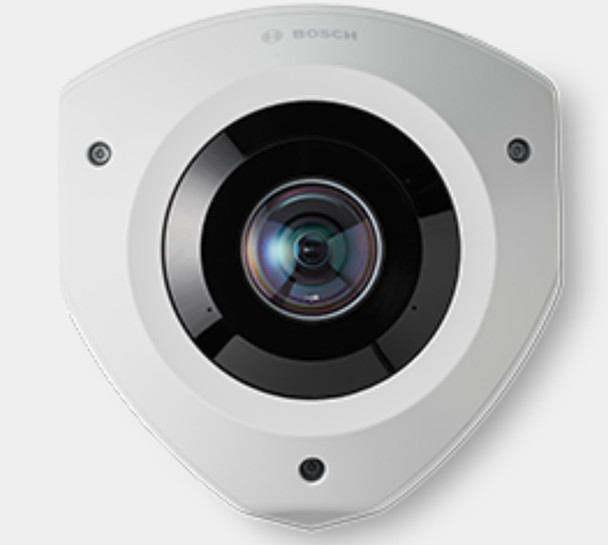

The Bosch IQsight FLEXIDOME corner 7100i IR is a rugged 6MP anti-ligature corner-mount IP security camera designed for high-risk, vandal-prone, and safety-sensitive environments where complete room coverage and tamper resistance are critical. Available as NCE-7703-FK for NDAA-compliant deployments and NCE-7703-FK-GOV for NDAA and TAA-compliant government applications, this specialized corner camera combines a wide 131° horizontal field of view, 96° vertical field of view, 940nm invisible IR illumination, HDR imaging, IVA Pro analytics, Intelligent Audio Analytics, and a hard IK10+ 50J exterior shell.
Purpose-built for correctional facilities, holding cells, healthcare environments, behavioral health rooms, interview rooms, secure education areas, transportation facilities, government spaces, and other high-risk indoor surveillance applications, the Bosch IQsight FLEXIDOME corner 7100i IR is engineered to fit securely into the corner of a room with an anti-ligature, no-grip design. Its corner-mounted layout helps provide wall-to-wall and ceiling-to-floor visibility with no blind spots, making it ideal for areas where conventional dome or wall cameras may leave coverage gaps.
The 6MP 4:3 image format captures detailed video at up to 2816 x 2112 resolution and is optimized for full-room surveillance rather than narrow scene monitoring. The fixed 2.5mm lens provides a 131.1° horizontal field of view and 96.5° vertical field of view, giving operators a complete overview of the room from a single protected camera position. HDR performance up to 120dB helps preserve detail in challenging scenes with bright backlighting, shadows, and mixed lighting.
For discreet nighttime monitoring, the integrated 940nm invisible IR illumination supports clear imaging in darkness up to 15m / 50ft. Intelligent IR automatically adjusts intensity to reduce overexposure, and up to five controllable IR zones allow the illumination pattern to be tailored to the room. Because 940nm IR is less visible than traditional 850nm IR, the Bosch IQsight FLEXIDOME corner 7100i IR is especially useful in environments where attention toward the camera should be minimized.
Built-in Bosch IQsight IVA Pro analytics provide AI-based detection, tracking, classification, and alarm triggering for people, vehicles, and objects. The camera includes IVA Pro Buildings, IVA Pro Perimeter, IVA Pro Privacy, and Camera Trainer functionality, supporting alarm rules such as line crossing, loitering, object in field, entering/leaving field, idle/removed object, counting, occupancy, crowd density estimation, condition change, similarity search, flow/counter-flow, tampering, 3D tracking, and objects stopping or starting to move.
The Bosch IQsight FLEXIDOME corner 7100i IR also includes an integrated microphone array with three digital MEMS audio sensors for Intelligent Audio Analytics. This allows detection of target sound events such as T3/T4 alarms, loud noises, and licensed gunshot detection, generating metadata and alerts without necessarily requiring continuous audio recording. Two-way audio support allows integration with external audio input/output for more interactive security workflows where permitted.
Designed for harsh and demanding applications, the camera features an IP67-rated sealed design, NEMA Type 4X protection, IK10+ 50J impact resistance, clear polycarbonate bubble with UV-blocking anti-scratch coating, H.265 video compression, Bosch Intelligent Streaming, local microSD edge recording up to 2TB, secure boot, signed firmware, TLS encryption, TPM security, and ONVIF Profile S/G/T/M interoperability. The NCE-7703-FK-GOV model is available for U.S. government projects requiring both NDAA and TAA compliance.
Key Features:
• Bosch IQsight FLEXIDOME corner 7100i IR fixed dome IP camera
• Available models: NCE-7703-FK and NCE-7703-FK-GOV
• 6MP corner-mount room surveillance camera
• Anti-ligature no-grip design for high-risk environments
• Vandal-resistant hard exterior shell
• IK10+ 50J impact protection / IK11-class durability
• 131.1° horizontal field of view
• 96.5° vertical field of view
• 4:3 image format for wall-to-wall and ceiling-to-floor coverage
• 940nm invisible IR illumination
• Intelligent IR up to 15m / 50ft
• Five controllable IR zones
• HDR imaging up to 120dB
• 2.5mm fixed lens
• 6MP resolution up to 2816 x 2112
• IVA Pro Buildings, IVA Pro Perimeter, and IVA Pro Privacy
• Camera Trainer machine-learning analytics
• Intelligent Audio Analytics support
• Integrated microphone array with three digital MEMS sensors
• T3 / T4 alarm detection pre-installed
• Licensed gunshot detection support
• Two-way audio support
• H.265 / H.264 / M-JPEG video compression
• Bosch Intelligent Streaming
• Local microSD edge recording support up to 2TB
• IP67 water and dust protection
• NEMA Type 4X protection
• Secure boot, signed firmware, TPM, and TLS encryption
• ONVIF Profile S, G, T, and M compliant
• PoE, 12VDC, and 24VAC power options
• NDAA-compliant and NDAA/TAA-compliant model options
Technical Specifications Summary:
Camera:
• Resolution: 6MP
• Effective Pixels: 2816 x 2112
• Sensor Type: 1/1.8" CMOS
• Image Format: 4:3
• Frame Rate: 1fps to 30fps
• Video Resolution:
- 6MP 4:3: 2816 x 2112
- 4.5MP 16:9: 2816 x 1584
- Down to 0.1MP selectable resolutions
• Dynamic Range: 120dB HDR
• Minimum Illumination:
- Color: 0.0720 lux
- Monochrome: 0.0140 lux
- 0 lux with IR
Lens & Field of View:
• Lens Type: Fixed
• Focal Length: 2.5mm
• Aperture: F2.4
• IR Corrected: Yes
• Day / Night: Switchable IR-cut filter
• Horizontal Field of View: 131.1°
• Vertical Field of View: 96.5°
Night Vision:
• IR Type: Invisible IR
• IR Wavelength: 940nm
• IR Function: On / Off / Auto / Intelligent IR
• IR Intensity: Automatic / Intelligent intensity
• Controllable IR Zones: 5
• IR Distance: Up to 15m / 50ft
DORI Coverage:
• Detection: 25.7m / 80.2ft
• Observation: 10.2m / 33.8ft
• Recognition: 5.1m / 16.9ft
• Identification: 2.6m / 8.4ft
Video:
• Compression: H.265 / H.264 / M-JPEG
• Streaming: 4 configurable streams
• Intelligent Streaming: Supported
• GOP Structure: IP / IBP / IBBP
• WDR Technology: HDR
• Intelligent Dynamic Noise Reduction: Supported
• Display Stamping: Name, logo, date/time, alarm message, time
• Privacy Masks: 8
Video Analytics:
• IVA Pro Buildings
• IVA Pro Perimeter
• IVA Pro Privacy
• Camera Trainer
• Automatic Calibration based on gyro sensor, focal length, and camera height
• Object in Field
• Line Crossing
• Enter / Leave Field
• Loitering
• Follow Route
• Idle / Removed Object
• Counting
• Occupancy
• Crowd Density Estimation
• Condition Change
• Similarity Search
• Flow / Counter Flow
• Tampering
• 3D Tracking
• Audio Detection
• Objects Stopping or Starting to Move
• Up to 16 Simultaneous Alarm Rules
Intelligent Audio Analytics:
• Integrated Microphone Array: 3 digital MEMS audio sensors
• Intelligent Audio Analytics License Support
• T3 / T4 Alarm Detection: Pre-installed
• Gunshot Detection: Licensed
• Loud Noise Detection: Supported
• Audio Metadata Integration: Supported
• Microphone Blocking via Secure License Key: Supported where required
Audio:
• Audio Input: Built-in microphone, line-in, mic-level input
• Audio Output: Line-out
• Audio Streaming: Full duplex / half duplex
• Compression: AAC-LC 48kbps, 16kHz
• Signal-to-Noise Ratio: >50dB
• Audio Line In: 10kΩ typical, max 0.707Vrms
• Audio Line Out: 160kΩ typical, 0.707Vrms
Storage:
• Memory Card Slot: microSDHC / microSDXC / microSD
• Maximum Local Storage: Up to 2TB
• Industrial SD Card Support: Extreme lifetime and health monitoring
• Edge Recording: Supported
• Pre-Alarm Recording: Supported
Network & Security:
• Ethernet: 10/100/1000BASE-T
• Connector: Shielded RJ45
• ONVIF Compliance: Profile S, Profile G, Profile T, Profile M
• Platform: CPP14
• Cloud Services: Remote Portal, Stratocast Genetec
• Encryption: TLS 1.1, TLS 1.2, TLS 1.3, AES 128/256
• TPM / Crypto Coprocessor: RSA 4096-bit, AES/CBC 256-bit
• PKI: X.509 certificates
• Local Storage Encryption: XTS-AES
• Video Authentication: MD5, SHA-1, SHA-256, Checksum
• Firmware Protection: Signed firmware, secure boot
Inputs & Outputs:
• Alarm Inputs: 1
• Alarm Outputs: 1
• Audio Line In: 1
• Audio Line Out: 1
• Integrated Microphone Array: Yes
Power:
• PoE: IEEE 802.3af / 802.3at Type 1, Class 3
• Auxiliary Power: 24VAC or 12VDC
• Typical / Maximum PoE Consumption: 5.70W / 10.50W
• Typical / Maximum 12VDC Consumption: 6W / 10.80W
• Typical / Maximum 24VAC Consumption: 5.90W / 10.50W
• Redundant Power: PoE and auxiliary power can be connected simultaneously
Environmental & Mechanical:
• Mounting Design: Corner-mount anti-ligature
• Housing Color: Signal White, RAL 9003
• Bubble Material: Clear polycarbonate with UV-blocking anti-scratch coating
• Impact Protection: IK10+ 50J / IK11
• IP Rating: IP67
• Degree of Protection: NEMA Type 4X
• Operating Temperature: -10°C to +50°C
• Storage Temperature: -30°C to +70°C
• Operating Humidity: 5% to 93% non-condensing / 5% to 100% condensing

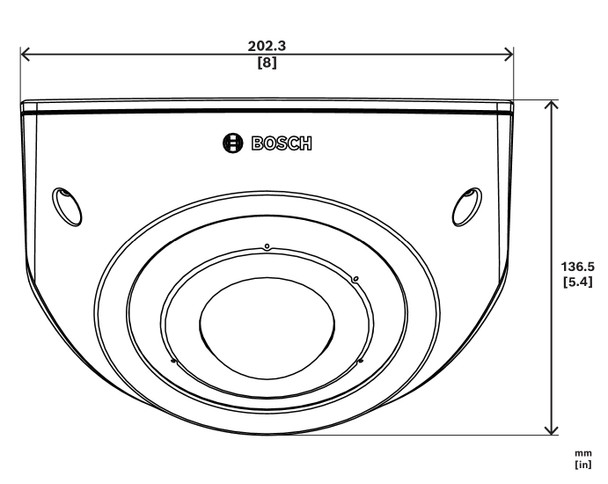

• Dimensions: 136.5mm H x 184.4mm W x 202.3mm D
• Weight: 1.90kg / 4.20lb
Ideal Applications:
• Correctional facilities
• Holding cells
• Police interview rooms
• Behavioral health rooms
• Healthcare observation areas
• Secure education rooms
• Transportation holding areas
• Government facilities
• High-risk indoor security spaces
• Vandal-prone surveillance environments
• Anti-ligature safety applications
Model Variants:
• NCE-7703-FK – 6MP Corner IR Camera, NDAA compliant
• NCE-7703-FK-GOV – 6MP Corner IR Camera, NDAA and TAA compliant, available in U.S. only
Compatible Accessories:
• MSD-064G – 64GB Industrial microSD Card with Health Status Monitoring
• MSD-128G – 128GB Industrial microSD Card with Health Status Monitoring
• MSD-256G – 256GB Industrial microSD Card with Health Status Monitoring
• NPD-5001-POE – 15W Single-Port PoE Midspan
• NPD-5004-POE – 4-Port 15W PoE Midspan
• NDA-7080-CBB – Corner Conduit Back Box
• NDA-7080-FP – Replacement Face Plate
• NDA-7080-TC – Top Cover for FLEXIDOME Corner 7100i IR
• NDA-7080-IR940 – Replacement Cover, 940nm IR
Optional Software & Licensing:
• MVC-IAA-GUN – Gunshot Detector License, Perpetual
Default selection is NCE-7703-FK. Specify NCE-7703-FK-GOV for U.S. government applications requiring NDAA and TAA compliance.
