Description

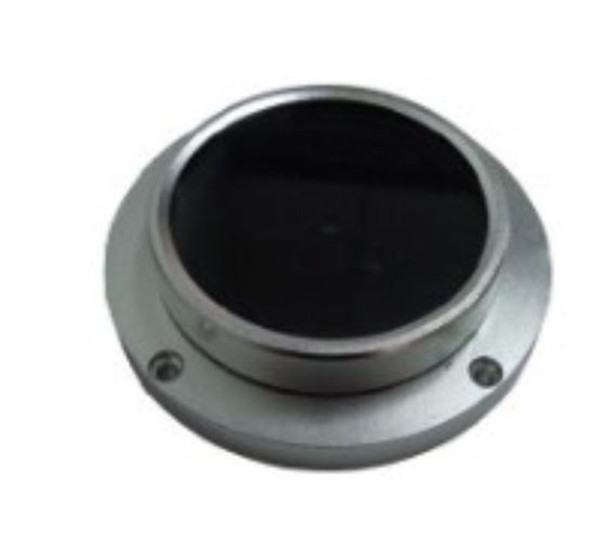

The ALX-F8150-IR is a mini disc shapred, wide-angle to narrow beam infrared illuminator engineered to enhance low-light visibility for CCTV and IP camera systems. Designed with a 160° beam angle and equipped with 3 high-power IR LEDs, this model delivers soft, even illumination across up to 150 square meters at 850nm. Its ultra-compact form factor makes it especially suitable for ceiling mounting in corridors, lobbies, or room interiors.
Available in both 850nm semi-covert and 940nm fully covert wavelength models, the unit adapts to privacy or stealth applications. The IP65-rated aluminum die-cast housing ensures long-term reliability in both indoor and mild outdoor environments, while a high-transmittance panel ensures maximum IR light output.
An automatic day/night photocell switch is built in for energy-saving efficiency. The illuminator is powered via DC12V and draws only 500mA at 850nm, offering excellent power efficiency in compact installations.
Key Features:
- 3 high-power IR LEDs
- 160° ultra-wide beam angle
- 850nm or 940nm IR wavelength models
- IR coverage up to 150m² (approx. 3–5m range at 850nm)
- Built-in photocell for auto day/night control
- IP65-rated die-cast aluminum housing
- High-transmittance protective panel
- Lightweight and easy to mount
- 3-year warranty
Specifications:
- LED Type: 3pcs high-power IR LED
- Wavelength Options: 740nm / 850nm / 940nm
- Beam Angle: 160°
- IR Coverage Area: 150m² (approx. 3–5m @ 850nm)
- Voltage: DC12V
- Current: 500mA (850nm)
- Power Consumption: ~6W
- Panel: High-transmittance
- Housing: Aluminum die-casting
- Protection Rating: IP65
- Day/Night Switch: Automatic
- Operating Temperature: -30°C to 50°C
- Color: Silver
- Mount: Wall or ceiling bracket
- Net Weight: 0.33kg
- Gross Weight: 0.4kg
- Dimensions: 110 × 110 × 45 mm
Model Order Info:
850nm Semi-Covert
ALX-F8150-IR160 160° 3m
940nm Fully Covert
ALX-F8150-9IR15 15° 28m
ALX-F8150-9IR30 30° 20m
ALX-F8150-9IR45 45° 12m
ALX-F8150-9IR60 60° 9m
ALX-F8150-9IR90 90° 5m
ALX-F8150-9IR120 120° 3m
ALX-F8150-9IR160 160° 3m
