ACTi I97 33x 2MP PTZ IP Camera Speed Dome IP67

Write a Review
Calculated at Checkout
  • ACTi I97 PTZ IP Camera Speed Dome 33x 2MP IP67

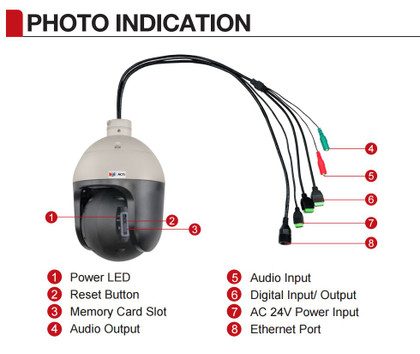

  • ACTi I97 PTZ IP Camera Speed Dome function diagram
  • ACTi I97 PTZ IP Camera popular accessories
  • ACTi live view web interface sample with PTZ control
  • ACTi I97 PTZ IP Camera dimensions


ACTi I97 33x 2MP PTZ IP Camera Speed Dome is a next generation, fully loaded network Pan/Tilt/Zoom security camera. The unit incorporates a high quality 2MP CMOS Image sensor generating up to 1080P HD video and with superior frame rates to 60fps. ACTi Superior Low Light Sensitivity (SLLS) with 2D plus 3D DNR enable vivid imaging in low light environments while Extreme WDR conquers adverse lighting for an all-around amazing Day/Night function. Powerful 33x Optical Zoom and high speed, highly accurate Pan/Tilt/Zoom movement promise a PTZ Camera of truly professional standards. The PTZ unit combines everything from Local Recording with SD Card and On-board Video Analytics to ONVIF integration promising diverse adaptability to all types of modern IP Surveillance or Security Camera Systems. Weatherproof rated for extreme environments and constructed tough just as your security should be.

ACTi I97 33x 2MP PTZ IP Camera Main Features:

  • 1/2.8" CMOS Sensor 2 Megapixel with 1080p at up to 60fps (1920 x 1080)
  • Day/Night with Superior Low Light Sensitivity (SLLS) plus Extreme WDR (145 dB)
  • 33x Zoom Lens with f4.5-148.5mm / F1.6-5.0, DC Iris, Auto Focus (HFOV 69.3° - 3°)
  • Low Light Performance: Color: 0.1 lux; B/W: 0.05 lux
  • H.264 and MJPEG Multi-streaming, up to Triple (3) Streams based on configurations.
  • High Speed and Accuracy, Continuous Rotation or 360° Endless Pan plus superb Tilt Range.
  • On-board Edge Analytics include Motion Detection, Tamper, Shock Detection, PTZ Auto Tracking, Digital Image Stabilizer, **Defogging, **Line Crossing, **Enter Area, **Exit Area, **Appear in Area, **Missing Object, **Unattended Object- ** = via later Firmware update
  • Protocols: TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv4, IPv6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour, Sony VISCA, Pelco D, Pelco, ONVIF
  • Two Way Audio, 3.5mm phone jack input/output with 8 kHz, Mono, PCM, 16 bit encoding; G.711
  • Digital I/O: 4 Alarm/Sensor Input/2 Relay Output
  • Local Recording: Micro SDHC card slot (card not included)
  • Weatherproof (IP67) and Vandal Proof Dome (Default IK09 Dome) or optional IK10 Dome
  • Operating Temperature: -52°C ~ 60°C (-61.6°F ~ 140°F)
  • Weight: 2500 grams (5.51 lbs.)
  • Dimensions: (Φ x H) 200mm x 276mm (7.9" x 10.9")
  • Power Input: High PoE (IEEE802.3at) / 24VAC
  • 3 Year(s)* (1 year in continuous motion) Warranty Policy)

ACTi I97 33x 2MP PTZ IP Camera Superb HD Video:
The ACTi I97 1080P HD PTZ IP Camera delivers high definition with vivid clarity even in the most challenging conditions. The PTZ is outfitted with a new generation of 2 Megapixel CMOS Image Sensors that are further enhanced by a variety of attributes. High Frame rate video capture at up to 60fps in full 1080P HD or lower, plus triple streaming support including H.264 codec assures impressive performance. The compliments of true day/night operation with SLLS, 3D DNR to Extreme WDR and a vast set of configurable camera settings guarantee the ACTi I97 HD PTZ IP Camera is versatile and ready for all types of lighting conditions.

ACTI I97 33x PTZ Pan/Tilt/Zoom Functions:
ACTi I97 1080P HD PTZ Security Camera parallels or succeeds competitive Speed Dome cameras in its class with smooth 360 degree endless rotation and -20° - 200° Tilt Range. The device's high speed movement and supreme accuracy along with Absolute Positioning offer optimal ability for the most demanding and customized surveillance system projects. The units of course give you 256 preset positions, 10 preset tours to functions like Auto Scan. The 33x Zoom Lens provides obvious long range advantages while the maximum wide angle view is nearly 70 degrees and very nice for a PRO PTZ Camera. Support for URL Commands, Pelco D or P and Sony VISCA to ONVIF make integration super easy.

ACTi I97 PTZ Adds Intelligence:
The PTZ Security Camera is even further loaded with all kinds of highly demanded features. The on-board Video Analytics yield a range of video analysis modes like PTZ Auto Tracking to Line Crossing and more. Various device integration benefits are supported from 2-Way Audio to Digital I/O interface with smart functionality like event notification, event trigger, FTP upload or Local Micro SDHC recording are all likewise built-in. Numerous IT Protocols are supported and similarly a suite of ACTi Surveillance Software, Recording Hardware, Mobile Applications to 3rd Party VMS or NVR systems are all possible, often simple to achieve.

Rugged ACTi I97 PTZ Cameras:
ACTi I97 Speed Dome IP PTZ Cameras are constructed for harsh environments with an extended operating temperature range to IP67 weatherproof rating and IK09 (default) or IK10 (optional dome) vandal proof design. The units are available with a wide range of mounting accessories including wall mount, pole mount, parapet mount and more. Flexible power input allows High PoE single cable install or the traditional 24VAC input. Call our Experts today and get assistance selecting all the PTZ parts you need for an end-to-end IP surveillance or security system.

Last Updated July 29, 2016
