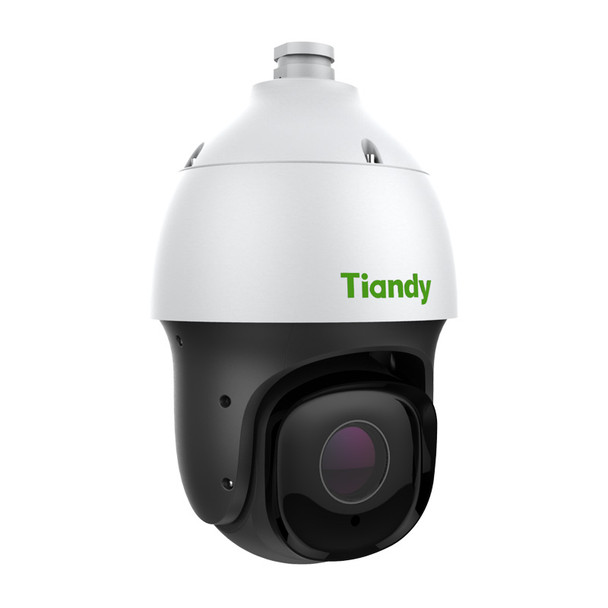

Tiandy TC-H356S Spec: 30X/I/E++/A/Am/V3.0 5MP AI 30x IR IP PTZ Camera

Tiandy TC-H356S Spec: 30X/I/E++/A/Am/V3.0 5MP AI 30x IR IP PTZ Camera is a superb choice for the best quality, premium performance and diverse function at a competitive price. Equipped with a super low light 5-megapixel image sensor the device provides real-time 5MP or 3K video that is only further enhanced with perks like 140dB WDR or its long-range Smart IR Night Vision for optimal clarity in all types of lighting conditions. Further its long-range zoom lens pairs with a high-speed pan-tilt mechanism delivering precise Pan-tilt-Zoom movement capable of covering vast areas while likewise reaching distant objects of interest with satisfying results. In addition, the device provides rich operational abilities including aspects such as plug-in free web browser interface or easy p2p connectivity plus free professional mobile apps and software options.

Tiandy TC-H356S Spec: 30X/I/E++/A/Am/V3.0 5MP AI 30x IR Network PTZ Security Cameras are even more outfitted with the latest in smart technologies. The device incorporates cutting-edge A.I. (Artificial Intelligence) powered VCA (video content analysis) enabling capabilities like human/vehicle classification, PTZ auto-tracking or Face Capture to name a few. This along with its edge and network storage transfer options as well as aforementioned user interfaces allows the device to operate stand-alone if needed. However, integration as part of a larger system is likewise fruitful for any modern video security solution including 3rd party systems via the latest ONVIF standards. Ready for harsh outdoor demands the PTZ is fully weatherproof with wide temperature operation also supported. Flexible connectivity including power is also offered, single cable install can be achieved with a single network cable by utilizing the camera's PoE++ power input option. With a built-in mic, less common on many high-end PTZ cameras, the Tiandy PTZ TC-H356S-Spec-30X-I-E++-A-Am-V3.0 promises comprehensive scene awareness.

Tiandy TC-H356S-Spec-30XIE++AAmV3.0 Main Features:

• Up to 2880×1620 @ 30fps (5 Megapixel Real-Time)
• Min. illumination Color: 0.001 Lux @ F1.5
• Optical zoom: 30×, digital zoom 16×
• 140db True Wide Dynamic Range
• Smart IR, IR Range: 200m
• Support Auto-tracking
• S+265/H.265/H.264/M-JPEG
• Built-in Microphone
• Intelligent monitoring/Face Capture mode
• Support A.I. Human/Vehicle Classification
• Plugin Free Web browser + P2P
• IP66 Weatherproof, Wide Temp, Electrical Protections
• 24VAC or POE++ Power Input
• NDAA

Camera
Image Sensor 1/2.8" CMOS
Signal System PAL/NTSC
Min. Illumination Color: 0.001lux@ (F1.6, AGC ON), BW: 0lux with IR
Shutter Time 1s to 1/100,000s
Day & Night IR Cut Filter with Auto Switch
Optical Zoom 30X
Digital Zoom 16X

Lens
Focal Length 4.7mm~141mm
Zoom Speed <5s
Field of View
Horizontal field of view: 61.9° (w)~2.5° (t)
Vertical field of view: 35.5° (w)~1.4° (t)
Diagonal field of view:69.1°(w)~2.9°(t)
Aperture Range F1.6~F4.3
Focus Control Auto/Manual
Iris Control Auto
Close Focus Distance 1m‒1.5m

Pan & Tilt
Pan Range 360°
Pan Speed Pan Manual Speed: 0.1°~180°/s, Pan Preset Speed: 240°/s
Tilt Range -16°~90° (Default -3°~90°)
Tilt Speed Tilt Manual Speed: 0.1°~120°/s, Tilt Preset Speed: 120°/s
3D Position Yes
Preset 500
Preset Accuracy ±0.4°
Cruise 16, up to 32 presets per cruise
Scan 8
Pattern 8, each with 600s memory or 1000 orders
Scheduled Task Preset, Cruise, Scan, Pattern, Alarm output
Park Action Yes
Power-off Memory Yes
Preset Freezing N/A

Illuminator
IR LEDs 10
IR Distance Up to 200m
IR Irradiation Angle Adjustable by Zoom
White LEDs N/A
Laser N/A
Laser Distance N/A

Compression Standard
Video Compression S+265/H.265/H.264/M-JPEG
Video Bit Rate 32Kbps~16Mbps
Audio Compression G.711A/G.711U/ADPCM_D/AAC_LC
Audio Sampling Rate 8K～48Kbps
Max. Resolution 5MP (2880x1620)
Main Stream PAL: 25fps (2880x1620, 2688x1520, 2560x1440, 2304x1296, 1920x1080, 1280x960, 1280x720)
NTSC: 30fps (2880x1620, 2688x1520, 2560x1440, 2304x1296, 1920x1080, 1280x960, 1280x720)
Sub Stream PAL: 25fps (704x576, 704x288, 640x360, 352x288)
NTSC: 30fps (704x480, 704x240, 640x360, 352x240)
Third Stream PAL: 25fps (1920x1080, 1280x960, 1280x720, 704x576, 640x480, 704x288, 352x288)
NTSC: 30fps (1920x1080, 1280x960, 1280x720, 704x480, 640x480, 704x240, 352x240)
BLC Yes
HLC Yes
WDR True WDR

Image Stabilization N/A
Fog Digital
White Balance Auto/Semi-auto/Manual/Sunny/Natural light/Warm light/Sodium lamp/Incandescent lamp/Locked white balance
AGC Yes
Noise Reduction 2D/3D
ROI 7 Dynamic Areas for Both Main and Sub Stream, support 1 auto-tracking ROI
Picture Overlay Yes
Privacy Mask Yes
Smart Defog Yes
Image Setting Saturation, brightness, contrast, sharpness, adjustable by client software or web browser
Flip Yes
OSD 16x16, 24x24,32x32, 48x48, 64x64,96x96, adaptable size, Letters such as Week, Date, Time, Total 5 Regions

Feature
Alarm Trigger Event Input, Event Output, Mask Alarm, Disk Full, Disk R/W Error, IP Address Conflict, MAC Address Conflict, FTP Server Exception
Video Analytics Tripwire, Double Tripwire, Perimeter, Object Abandon, Object Lost, Loitering, Running, Parking, Heatmap, Crowd, People Counting, On Duty Detection, Safety Helmet Detection, Video Abnormal, Audio Abnormal
Early Warning (EW) N/A
Auto-Tracking Yes
Face Detection and Analytics
Operating Mode Face capture, intelligent monitoring optional, default intelligent monitoring
Face Detection Performance Detects up to 32 faces at the same scene
Face Exposure Brightness Default 35, 1~100 brightness optional
Min. Face Pixel Default 80, 26~2880optional

Network
Protocols HTTP/HTTPS/TCP/UDP/UPnP/SNMP/DHCP/DNS/DDNS/Easy/DDNS/NTP/SMTP/SSL/802.1X/QoS/IPv4/IPv6/PPPOE/SSH/Unicast/Multicast/RTMP/RTP/RTSP/NFS/SMB/CIFS/FTP
System Compatibility ONVIF (PROFILE S/T/G/M), SDK, CGI, P2P
ANR
Auto store video in SD card when NVR disconnected, and upload video to NVR when resumed connection (Only Support
Tiandy ANR NVR)
Remote Connection ≤7
User/Host Up to 32 users. 4 user levels
Web Version web6

Interface
Communication Interface 1 RJ45 10M/100M self-adaptive Ethernet port
Audio I/O 1/1
Alarm I/O 8/2
Built-In Speaker N/A
Reset Button Yes
On-board storage Built-in Micro SD card slot, up to 512 GB
RS-485 Yes
BNC N/A
Wiper N/A
Electronic Compass N/A
GPS/BDS N/A

General
Protection IP66, TVS 6000V lightning protection, surge protection and voltage transient protection
Web Client Language
17 languages
Simple Chinese/ Traditional Chinese/ English/ Spanish/ Korean/ Italian/ Turkish/ Russian/ Thai/French/ Polish/ Dutch/Hebrew/ Arabic/ Vietnamese/ German/ Ukrainian
Operating Conditions -40°C~70°C (IR OFF), -40°C~40°C (IR ON), 0-95%RH
Power Supply AC24V±25% / POE++(IEEE802.3bt)
Power Consumption 20W (IR OFF), 38W (IR ON)
Heater N/A
Material ADC12
Package/Boundary Dimensions Φ310x500mm (Φ222x372mm)
Gross/Net Weight 8.45kg (5.3kg)
