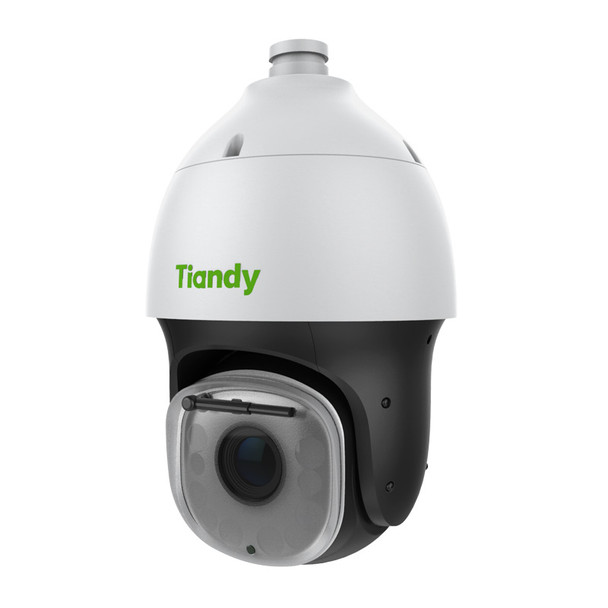

Tiandy TC-H356Q Spec: 30X/IW/E++/A/Am/V3.0 5MP AI 30x IR IP PTZ Security Camera

Tiandy TC-H356Q Spec: 30X/IW/E++/A/Am/V3.0 5MP AI 30x IR IP PTZ Security Camera is a professional Pan-Tilt-Zoom network camera packed with best-in-class features and functions. Delivering industry leading low light performance plus absolute IR night vision, the device delivers 3K Super HD resolution and does so with cutting edge compression methods like H.265 plus support of multiple simultaneous video streams. From extreme 140db Wide Dynamic Range (WDR) to a built-in Wiper, the device is built to provide optimal image clarity throughout challenging lighting and environmental conditions. Supporting likewise numerous integration protocols including the latest ONVIF formats, this Tiandy PTZ camera is well equipped for video surveillance or other pro-video demands alike.

The Tiandy TC-H356Q-Spec-30X-IW-E++-A-Am-V3.0 30x 5MP AI AEW IR PTZ IP Security Camera incorporates all the modern PTZ demands along with cutting edge Video Analytics empowered with A.I. for powerful automated security. Featuring a full function web browser interface that is plug-in free to aspects like high-capacity on-board storage along with this added intelligence promise even stand-alone operation and protection capabilities. The device features Tiandy's AEW (PTZ Auto-Tracking Early Warning) which is an active deterrent solution. It combines AI Video Analytics with on-board hardware functions like its White Light LEDs, Green Laser Pointer and/or Speaker to achieve intelligent detection and automatically trigger tracking of intruders, while further issuing alerts or warnings to drive them out of a protected area. With its built-in Microphone even two-way communication is available and is one of many layers of this PTZ which grant comprehensive surveillance and situational awareness.

Tiandy TC-H356Q-Spec-30XIWE++AAmV3.0 30x 5MP AI IR PTZ IP Security Cameras are built robust with an IP66 weatherproof construction, a wide temperature operating range and multiple electrical protections promising reliable operation in practically any outdoor or harsh environment worldwide. The device offers likewise flexible installation with multiple optional mounts enabling pole mount, ceiling or pipe mount and more, meanwhile support for 24VAC power input or PoE++ single network cable install are all options. NDAA compliant the device is ready to serve even the highest security demands.

TC-H356Q Spec: 30X/IW/E++/A/Am/V3.0 Main Features:

• Up to 2880×1620 @ 30fps 5-Megapixel
• Min. illumination Color: 0.001 Lux @ F1.6
• Enhanced Image Processing - Starlight, 140db WDR, etc.
• Optical zoom: 30×, digital zoom 16×
• Advanced A.I. (Artificial Intelligence) & VCA (Video Content Analysis)
• Auto-Tracking Early Warning (AEW)
• Smart IR, IR Range: 200m
• Supports White Light LED Lighting
• Supports Green Laser Pointer
• Built-in Speaker & Built-in Mic
• S+265/H.265/H.264/M-JPEG
• Intelligent monitoring/Face Capture mode
• Plugin Free Web Browser Interface
• IP66 weatherproof, wide temp, surge protection
• Built-in Wiper
• 24VAC or PoE++ Power Input
• NDAA

Specifications:

Camera
Image Sensor 1/2.8" CMOS
Signal System PAL/NTSC
Min. Illumination Color: 0.001 lux@ (F1.6, AGC ON), BW: 0lux with IR
Shutter Time 1s to 1/100,000s
Day & Night IR Cut Filter with Auto Switch
Optical Zoom 30X
Digital Zoom 16X

Lens
Focal Length 4.7mm~141mm
Zoom Speed <5s
Field of View
Horizontal field of view: 61.9° (w)~2.5° (t)
Vertical field of view: 35.5° (w)~1.4° (t)
Diagonal field of view:69.1°(w)~2.9°(t)
Aperture Range F1.6~F4.3
Focus Control Auto/Manual
Iris Control Auto
Close Focus Distance 1m‒1.5m

Pan & Tilt
Pan Range 360°
Pan Speed Pan Manual Speed: 0.1°~180°/s, Pan Preset Speed: 240°/s
Tilt Range -16°~90° (Default -3°~90°)
Tilt Speed Tilt Manual Speed: 0.1°~120°/s, Tilt Preset Speed: 120°/s
3D Position Yes
Preset 500
Preset Accuracy ±0.4°
Cruise 16, up to 32 presets per cruise
Scan 8
Pattern 8, each with 600s memory or 1000 orders
Scheduled Task: Preset, Cruise, Scan, Pattern, Alarm output
Park Action Yes
Power-off Memory Yes
Preset Freezing N/A

Illuminator
IR LEDs 10
IR Distance Up to 200m
IR Irradiation Angle Adjustable by Zoom
White LEDs 4
Laser Yes
Laser Distance N/A

Compression Standard
Video Compression S+265/H.265/H.264/M-JPEG
Video Bit Rate 32Kbps~16Mbps
Audio Compression G.711A/G.711U/ADPCM_D/AAC_LC
Audio Sampling Rate 8K～48Kbps

Max. Resolution 5MP (2880x1620)
Main Stream PAL: 25fps (2880x1620, 2688x1520, 2560x1440, 2304x1296, 1920x1080, 1280x960, 1280x720)
NTSC: 30fps (2880x1620, 2688x1520, 2560x1440, 2304x1296, 1920x1080, 1280x960, 1280x720)
Sub Stream PAL: 25fps (704x576, 704x288, 640x360, 352x288)
NTSC: 30fps (704x480, 704x240, 640x360, 352x240)
Third Stream PAL: 25fps (1920x1080, 1280x960, 1280x720, 704x576, 640x480, 704x288, 352x288)
NTSC: 30fps (1920x1080, 1280x960, 1280x720, 704x480, 640x480, 704x240, 352x240)
* Listed resolutions are only selectable options. It does not mean that all streams can work at their maximum resolution at the same time.

BLC Yes
HLC Yes
WDR True WDR
Image Stabilization N/A
Fog Digital
White Balance Auto/Semi-auto/Manual/Sunny/Natural light/Warm light/Sodium lamp/Incandescent lamp/Locked white balance
AGC Yes
Noise Reduction 2D/3D
ROI 7 Dynamic Areas for Both Main and Sub Stream, support 1 auto-tracking ROI
Picture Overlay Yes
Privacy Mask Yes
Smart Defog Yes
Image Setting Saturation, brightness, contrast, sharpness, adjustable by client software or web browser
Flip Yes
OSD 16x16, 24x24,32x32, 48x48, 64x64,96x96, adaptable size, Letters such as Week, Date, Time, Total 5 Regions

Feature
Alarm Trigger Event Input, Event Output, Mask Alarm, Disk Full, Disk R/W Error, IP Address Conflict, MAC Address Conflict, FTP Server
Exception
Video Analytics Tripwire, Double Tripwire, Perimeter, Object Abandon, Object Lost, Loitering, Running, Parking, Heatmap, Crowd, People Counting, On Duty Detection, Safety Helmet Detection, Video Abnormal, Audio Abnormal
Early Warning (EW) Yes
Auto-Tracking Yes
Face Detection and Analytics
Operating Mode Face capture, intelligent monitoring optional, default intelligent monitoring
Face Detection Performance Detects up to 32 faces at the same scene
Face Exposure Brightness Default 35, 1~100 brightness optional
Min. Face Pixel Default 80, 26~2880optional

Network
IT Network Protocols:
HTTP/HTTPS/TCP/UDP/UPnP/SNMP/DHCP/DNS/DDNS/Easy/DDNS/NTP/SMTP/SSL/802.1X/QoS/IPv4/IPv6/PPPOE/SSH/Unicast/Multicast/RTMP/RTP/RTSP/NFS/SMB/CIFS/FTP
System Compatibility ONVIF (PROFILE S/T/G/M), SDK, CGI, P2P
ANR: Auto store video in SD card when NVR disconnected, and upload video to NVR when resumed connection (Only Support Tiandy ANR NVR unless specified by 3rd party vendor)
Remote Connection ≤7
User/Host Up to 32 users. 4 user levels
Web Version web6

Interface
Communication Interface 1 RJ45 10M/100M self-adaptive Ethernet port
Audio I/O 1/1
Alarm I/O 8/2
Built-In Speaker Yes
Reset Button Yes
On-board storage Built-in Micro SD card slot, up to 512GB
RS-485 Yes
BNC N/A
Wiper Yes
Electronic Compass N/A
GPS/BDS N/A

General
Protection IP66, TVS 6000V lightning protection, surge protection and voltage transient protection
Web Client Language
17 languages
Simple Chinese/ Traditional Chinese/ English/ Spanish/ Korean/ Italian/ Turkish/ Russian/ Thai/French/ Polish/ Dutch/ Hebrew/ Arabic/ Vietnamese/ German/ Ukrainian

Operating Conditions -40°C~70°C (IR OFF), -40°C~40°C (IR ON), 0-95%RH
Power Supply: AC24V±25% / POE++ (IEEE802.3bt)
Power Consumption: 18W (IR OFF), 42W (IR ON)
Heater N/A
Material: Metal Aluminum ADC12
Package/Boundary Dimensions Φ310x500mm (Φ222x372mm)
Gross/Net Weight 8.6kg (5.4kg)
