Samsung SCO-2040R IR Bullet Security Camera

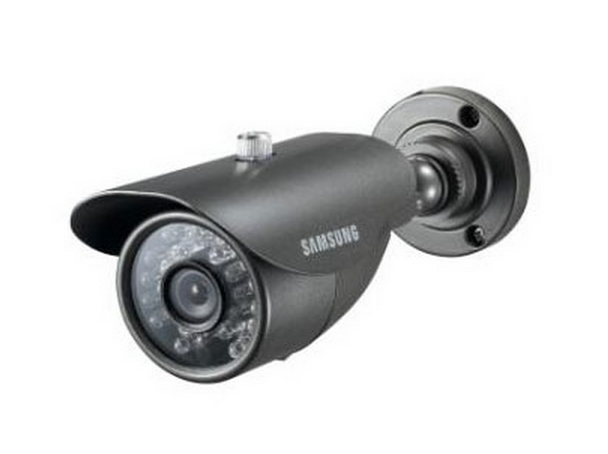

  • Samsung SCO-2040R CMOS 650TVL IR Bullet Security Camera
  • Samsung SCO-2040R CCTV CMOS Infrared Bullet Security Camera
  • Samsung SCO-2040R side view IR Bullet Camera
  • Samsung SCO-2040R Side view wall mount IR Buller Camera

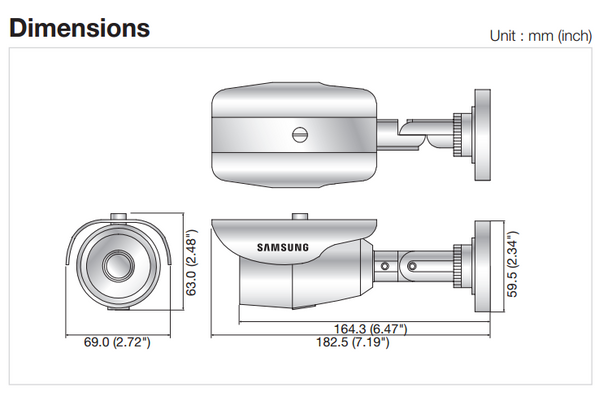

  • Samsung SCO-2040R camera dimensions
Calculated at checkout

Product Description

Samsung SCO-2040R IR Bullet Security Camera is an exceptionally affordable yet high performance 650TVL High Resolution CCTV Cameras. The unit includes a CMOS image sensor as well as true day/night operation benefitted by integrated IR LED Illumination for up to 82ft of night vision. The Security Cameras offer a compact, outdoor ready construction with sleek design that meets IP66 standards for harsh weather. The unit includes a fixed 8mm Lens and works well for slightly more telephoto video surveillance needs including close up shots to medium range coverage in low profile package.

The Samsung SCO-2040R IR CCTV Bullet Camera is built tough with an integrated sun-shield and multi-axis camera mount. Stunning high resolution is consistent with Auto White Balance, Auto Gain Control, Auto Shutter and Digital Noise Reduction. The Samsung SCO-2040R IR Security Cameras provide an ultra-low power 12VDC unit for a variety of security camera systems and surveillance requirements.

Samsung SCO-2040R Main Features:

  • Imaging Device 1/3" CMOS
  • Total Pixels 680(H) x 512(V)
  • Scanning System 2: 1 Interlace
  • Synchronization Internal
  • Frequency: H: 15.734Hz / V: 59.94Hz
  • Horizontal Resolution Color: 650TVL
  • Min. Illumination: 0 Lux (IR LED on)
  • S/N Ratio: 46dB (AGC off, Weight on)
  • Video Output CVBS: 1.0 Vp-p / 75O composite
  • Board Mount Fixed Lens Focal Length (Zoom Ratio): 8mm with Max. Aperture Ratio F2.0
  • Angular Field of View (FOV): Horizontal: 38.5° - Vertical: 32.6° - Diagonal: 45°
  • Min. Object Distance: 0.2m (0.66ft)
  • ICR Day/Night: Auto
  • Digital Noise Reduction (DNR): Auto
  • Gain Control: Auto (AGC)
  • White Balance: Auto (3,200°K ~ 6,500°K)
  • Shutter Mode: Auto (Rolling shutter)
  • IR Illumination Distance: 25 meters (IR LED 15ea)
  • Operating Temperature 0°C ~ +40°C (+32°F ~ +104°F) Humidity: 20% ~ 85% RH
  • Power Input Voltage: 12VDC Consumption Max. 2.2W
  • Construction: Color: Dark Gray and Material: Plastic
  • Camera Dimensions (WxHxD): 69.0mm x 63.0mm x 182.5mm (2.72" x 2.48" x 7.19")
  • Camera Weight: 300g (0.66 lb.)
