Samsung SCO-2080R IR Bullet Security Camera

Write a Review
SKU:
SCO-2080R
Shipping:
Calculated at Checkout
  • Samsung 2080R IR Bullet Cameras

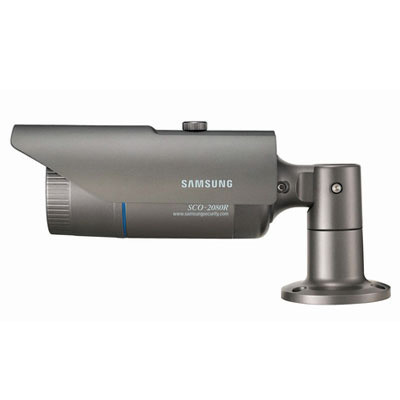

  • side of 2080R bullet camera
$236.00

Description

Samsung SCO-2080R IR Bullet Security Camera is an all in one outdoor CCTV Infrared Security Camera for professional installations. The SCO-2080R IR Camera has 600tvl (color)/ 700tvl (b/w) high resolution imaging and includes Samsung Advanced Image processing technologies. The Samsung SCO-2080R Bullet Security Camera incorporates a varifocal 2.8-10mm Lens and vesratile multi axis camera bracket for easy camera positioning. Plus the Samsung Bullet CCTV Camera is equipped with 32 High Intensity Infrared LEDs for an impressive 165ft of IR night vision. The Samsung Bullet includes on board Image Technologies like SSNR III (Samsung Super Noise Reduction), Digital Image Stabilization, SSDR, Sens Up, and HLC. The Camera is manufactured in an IP66 weatherproof rated casing for harsh environments. The Samsung Bullet also comes with a sun shield added protection. The Camera also supports communication by RS-485 or Coaxil Control for a fully functional On Screen Display and configuration. The Samsung SCO-2080R IR Day/Night Bullet Security Camera is a top solution for outdoor coverage in CCTV security camera systems.

Samsung SCO-2080R Main Features:

  • High Resolution 600TVL (Color), 700TVL (B/W)
  • Min. illumination 0Lux (IR LED On), IR night vision up to 165 ft
  • Built-in Varifocal DC lens (2.8 ~ 10mm)
  • True Day & Night (ICR), MD, SSNRIII
  • IP66 weatherproof construction with Cable Feed Through Mount
  • RS-485 or Coax control support for OSD

Samsung SCO-2080R Specifications:

  • Imaging Device: 1/3" Super HAD CCDII
  • Total Pixels: NTSC: 811(H) x 508(V) PAL: 795(H) x 596(V)
  • Effective Pixels: NTSC: 768(H) x 494(V) PAL: 752(H) x 582(V)
  • Scanning System: 2 : 1 Interlace
  • Synchronization: Internal / Line Lock
  • Frequency: NTSC H : 15.734KHz / V : 59.94Hz PAL H : 15.625KHz / V : 50Hz
  • Horizontal Resolution: Color : 600 TV lines, B/W : 700 TV lines
  • Min. Illumination: Color : 0.15Lux @ F1.2 (50IRE), 0.0003 Lux (Sens-up, 512x), B/W: 0 LUX (IR LED On)
  • S / N Ratio: 52dB (AGC off, Weight on)
  • Video Output: CVBS : 1.0 Vp-p / 75O composite
  • Focal Length (Zoom Ratio): 2.8 ~ 10mm ( V/F, 3.6x )
  • Max. Aperture Ratio: 1:1.2 (Wide) ~ 2.8 (Tele)
  • Angular Field of View: H : 94.4°(Wide) ~ 28°(Tele) / V : 69.2°(Wide) ~ 21°(Tele)
  • Min. Object Distance: 0.2M
  • Focus Control: Manual
  • Lens Type: DC Auto Iris
  • On Screen Display
  • NTSC: English, Japanese, Spanish, French, Portuguese, Taiwanese, Korean
  • PAL: English, French, German, Spanish, Italian, Chinese, Russian, Polish, Czech, Romanian, Serbian, Swedish, Danish, Turkish, Portuguese
  • Camera Title: Off / On (Displayed 15 characters)
  • Day & Night: Auto (ICR) / Color / B/W
  • Backlight Compensation: BLC / HLC / Off
  • Contrast Enhancement: SSDR (Off / On)
  • Digital Noise Reduction: SSNRIII (Off / On)
  • Digital Image Stabilization: Off / On
  • Motion Detection: Off / On (8 programmable zones)
  • Privacy Masking: Off / On (12 programmable zones)
  • Sens-up (Frame Integration): 2x ~ 512x
  • Gain Control: Off / Low / High
  • White Balance: ATW / Outdoor / Indoor / Manual / AWC (1,700K° ~ 11,000K°)
  • Electronic Shutter Speed: NTSC 1/60 ~ 1/120,000 sec PAL 1/50 ~ 1/120,000 sec
  • Digital Zoom: Off / On (1x ~ 16x)
  • Reverse H-Rev: ( Off/On ), V-Rev ( Off/On )
  • Communication: Coaxial Control ( SPC-300 Compatible ) or RS-485
  • Protocol Coax : Pelco-C (Coaxitron)
  • Protocol RS-485 : Samsung-T, Samsung-E, Pelco-D, Pelco-P, Panasonic, Bosch, Honeywell, Vicon
  • IER LEDS: 50m approx 165ft (850nm 32 count)
  • Operating Temperature / Humidity: -10°C ~ +50°C (14°F ~ +122°F) / Less than 90% RH
  • Ingress Protection: Weatherproof IP66
  • Input Voltage/Current: Dual (24VAC ±10% & 12VDC±10%)
  • Power Consumption: Max. 6.8W (IR LED on)
  • Color / Material Dark Gray / ALDC
  • Dimension (WxHxD): Ø77.0 x 216.0mm (Ø3.03" x 8.5") (Bracket angle 90°), 284.0mm (Ø11.18") (Bracket angle 180°)
  • Weight 1kg (2.2lb)
