Samsung SCB-9050 Analog Thermal Imaging Night Vision Security Camera Weatherproof

Write a Review
Calculated at Checkout
  • thermal, Samsung, SCB-9050, heat, night, vision, security, camera, weatherproof
  • thermal, Samsung, SCB-9050, heat, night, vision, security, camera, weatherproof
  • scb-9050, samsung, thermal

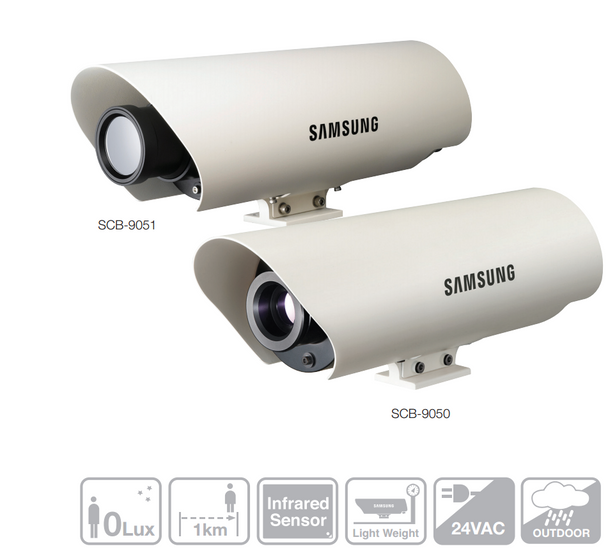

Samsung SCB 9050 is a cost effective Analog Weatherproof Thermal camera with stable night vision by a Microbolometer thermal imaging sensor that sets a new advantage on security cameras. This is a Weatherproof Thermal camera which is designed to meet the surveillance camera needs in more challenging conditions. The most notable feature of the camera is the ability to detect at an outstanding 360 meter detection range without lighting. Unlike visual cameras, a thermal camera senses heat that is naturally radiated from any animate object. This makes them very effective for applications with no artificial lighting. The camera is able to take clear videos at that distance even if there is no source of lighting at all. The Samsung SCB-9050 is also equipped with microbolometer sensor which tends to sense the target through heat and can be focused for 2x-4x. The SCB-9050 has a 14mm lens which gives it a 30 degrees horizontal field of view. The heat sensor is for short and medium range which is able to detect automatically or manually. Furthermore, it is able to achieve 0.08 degree Celsius, with excellent temperature resolving power. The device comes with a night vision feature but is strong enough in producing high quality videos with 3D DNR noise reduction feature. This makes sure that the output has a clear feature. Enclosing the device is IP66 approved housing. It comes to be dust free that may save the quality of the videos taken by the device from being interrupted by unwanted dust. It is also waterproof that is enough to prevent splashing water from being destructive to the device. A night vision security camera that is heavy in feature comes in extremely light. This makes this device extremely portable and easy to mount.


Samsung SCB-9050 Main features:

  • Outstanding 360m detection without lighting
  • Min. discernable temperature of 0.08 Degrees C
  • Built-in 14mm, 1.68mrad. Color pattern
  • OSD, RS-485, IP66, 24V AC

Samsung SCB-9050 Specifications:


  • Imaging Device 320(H) x 240(H) uncooled VOX microbolometer
  • Sensor Pitch 23.5µm
  • Measured Wavelength Range 8 ~ 14um, LWIR
  • Video Ratio (Sensor) 30fps 25fps
  • Thermal Sensitivity (NETD) 85mK@F1.4
  • Video Output CVBS : 1.0 Vp-p / 75O composite
  • LENS
  • Focal Length (Zoom Ratio) 50mm (Fixed) : SCB-9051, 14mm (Fixed) : SCB-9050
  • Max. Aperture Ratio 1 : 1.4
  • Angular Field of View (HxV) 8.6 x 6.5 : SCB-9051, 30.1 x 22.8 : SCB-9050
  • Min. Object Distance 27m ~ 8, Pan focus : SCB-9051, 0.5m ~ 8, Pan focus : SCB-9050
  • IFOV (Instaneous Field of View) 0.47mrad : SCB-9051, 1.68mrad : SCB-9050
  • Focus Control Manual
  • On Screen Display English, Japanese, Korean
  • Image Mode Color 1 / Color 2 / ISO / B/W
  • Sharpness 6 levels : Off ~ 5
  • Contrast Enhancement 11 levels (Auto), 10 levels (Manual)
  • Digital Noise Reduction 3D-DNR (4 Step : Low / Medium / High / Off)
  • Digital Zoom Off / On (2x ~ 4x)
  • Communication RS-485
  • Protocol Samsung-T/E, Pelco-D
  • Operating Temperature / Humidity -22F ~ +131F / Less than 90% RH
  • Ingress Protection IP66
  • Input Voltage / Current 24V AC ±10%
  • Power Consumption Max. 10.5W / 22W (With heater)
  • Color / Material Ivory / Aluminum
  • Dimensions (WxHxD)
  • 104.0 x 123.0 x 367.0mm (4.09" x 4.84" x 14.45") : SCB-9051
  • 104.0 x 123.0 x 352.0mm (4.09" x 4.84" x 13.86") : SCB-9050
  • Weight Approx. 2.2Kg (4.85 lb)
