Samsung SCV-2080 Vandal Resistant Dome Security Camera

  • scv2080 vandal dome camera
  • scv2080 rugged weatherproof dome

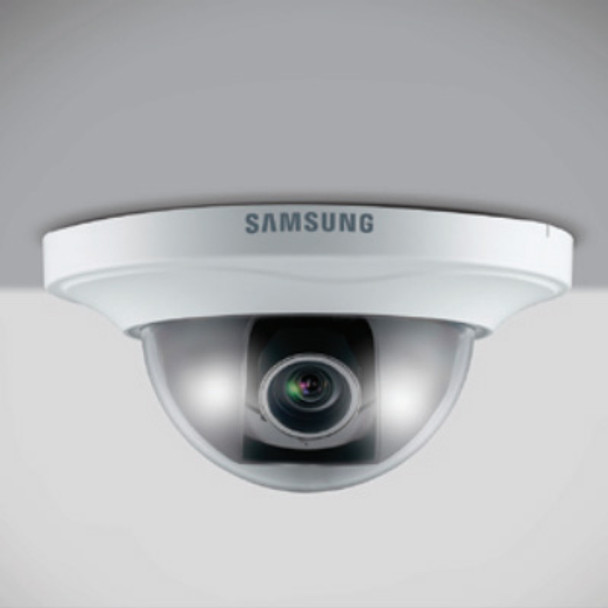

  • flush mount
Calculated at checkout

Product Description

Samsung SCV-2080 Vandal Resistant Dome Security Camera built for superior day and night video surveillance in any environment. The Samsung SCV-2080 delivers stunning 600tvl and 700tvl super high resolution video monitoring. Its Varifocal DC Auto Iris Lens and flexible camera bracket allow easy adaptation to a vareity of applications. The Samsung SCV-2080 Vandal Proof Dome Camera is also a true Day/Night camera with ICR for automatic switching from color to black and white in low light conditions. The camera's sens up function can then be activated to enable even lower lux imaging. Its Samsung W-V chipset further benefits the camera with superior image processing like SSNRIII and SSDR as well as configurable white balance and backlight settings. Samsung SCV-2080 eases user setup the full range of settings that can be controlled via the OSD and even supports coaxil communication. The camera offers a dual voltage input for use in 12VDC or 24VAC CCTV Security Camera Systems. The Samsung SCV-2080 Dome Camera is moreover a Vandal Proof Camera with high impact and IP66 weatherproof ratings. The SCV-2080 Samsung Vandal Resistant Dome Security Camera is a professional choice for superior surveillance all types of indoor or outdoor cctv systems.

Samsung SCV-2080 Main Features:

  • High resolution of 600TVL Color or 700TVL B/W
  • Super Low light illumination in Color or B/W 0.000002Lux (w/Sens-up, 512x)
  • True Day/Night w/Automatic IR Cut-filter
  • Built-in 3.6x (2.8~10mm) varifocal lens with auto iris
  • SSNRIII, SSDR, Sens Up, DIS, and MD
  • Weatherproof IP66 rated, High Impact and Vandal Resistant
  • Standard Model Supports Two types of installation (flush or surface mount)
  • Multi Language OSD with coaxial communication and control
  • Dual Voltage 12VDC or 24VAC

Samsung SCV-2080 Specifications:

  • imaging Device: 1/3" Super HAD CCD
  • total Pixels: 811(H) x 508(V) 795(H) x 596(V)
  • Effective Pixels: 768(H) x 494(V) 752(H) x 582(V)
  • Scanning System: 2 : 1 Interlace
  • Synchronization: Internal / Line lock
  • Frequency: H :15.734KHz / V : 59.94Hz H : 15.625KHz / V : 50Hz
  • Horizontal resolution: Color : 600TV lines (Min.) / B/W : 700TV lines (Min.)
  • Min. illumination: Color : 0.15Lux (50IRE@F1.2), 0.0003Lux (Sens-up, 512x)
  • : B/W : 0.001Lux (50 IRE@F1.2), , 0.000002Lux (Sens-up, 512x)
  • S / N (Y signal): 52dB
  • Video output: CVBS : 1.0Vp-p / 75O composite
  • Zoom ratio: 3.6x (Manual)
  • Focal length: 2.8 ~ 10mm (F1.2)
  • Max. aperture ratio: 1 : 1.2(Wide) ~ 2.8(Tele)
  • Min. object Distance: 0.2m (0.66ft)
  • angular Field of View: H : 94.4°(Wide) ~ 28°(Tele) / V : 69.2°(Wide) ~ 21°(Tele)
  • 3 Axis Camera Adjustment:
  • Pan range: 0° ~ 340°
  • tilt range: 0° ~ 146°
  • rotate range: 0° ~ 340°
  • on Screen Display NTSC: English, Japanese, Spanish, French, Portuguese, Taiwanese, Korean
  • on Screen Display PAL: English, French, German, Spanish, Italian, Chinese, Russian, Polish, Czech, Romanian, Serbian, Swedish, Danish, Turkish, Portuguese
  • camera title: On / Off (Displayed 15 characters)
  • Day & Night: Auto (ICR) / Color / B/W
  • SSDR: On / Off (Level adjustable)
  • Backlight compensation: BLC / HLC / Off
  • Motion Detection: On / Off (8 programmable zones)
  • Digital Zoom: On / Off (1x ~ 16x)
  • Digital image Stabilization: On / Off
  • Privacy Masking: On / Off (12 programmable zones)
  • 2D+3D Noise Filter (SSNRIII): On / Off
  • Sens-up (Frame integration): Auto / Off (Selectable limit ~ 512x)
  • Gain control: Low / High / Off
  • White Balance: ATW / AWC / Manual / Indoor / Outdoor
  • Electronic Shutter Speed: 1/60 ~ 1/120,000sec 1/50 ~ 1/120,000sec
  • Shutter Mode: Fixed / ESC / Manual / A.FLK
  • Flip / Mirror: On / Off
  • communication: Coaxial control (SPC-300 Compatible)
  • Protocol: Coax : Pelco-C (Coaxitron)
  • operating temperature / Humidity: -50°C ~ +50°C (-58°F ~ +122°F) / 20% ~ 90% RH
  • Dimension (WxH): Ø160 x 134.5mm (Ø6.3" x 5.3")
  • Weight: 1.28Kg (2.82 lb)
  • ingress Protection: IP66
  • certifications: FCC (Class A), UL/cUL listed CE (Class A), UL/cUL listed
  • input Voltage: Dual (12VDC/ 24VAC)
  • Power consumption: Max. 7.8W
