Samsung

Samsung SCV-3080 WDR Vandal Resistant Dome Security Camera

Write a Review
SKU:
SCV-3080
Shipping:
Calculated at Checkout

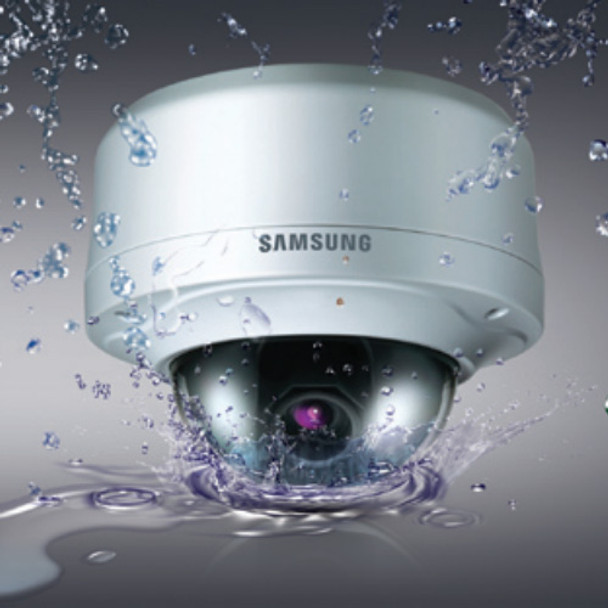

  • SCV3080 Vandal Dome Camera
  • SCV3080 weatherproof vandal proof camera

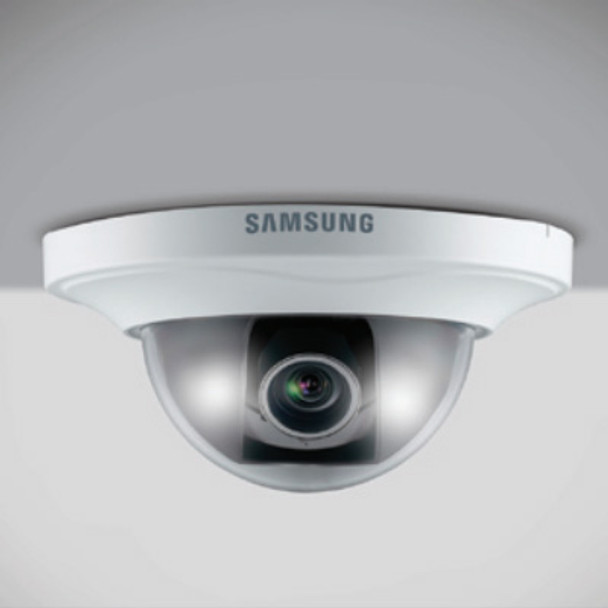

  • SCV3080 flush mount
$327.00

Description

Samsung SCV-3080 WDR Vandal Resistant Dome Security Camera is a solid choice for outstanding professional video security. The Samsung SCV-3080 features the Samsung SV-V DSP chipset for ultra sharp 600tvl and 700tvl resolution. The vandal dome also provides superior WDR (Wide Dynamic Range) function to overcome adverse lighting where conventional cameras would fail. True Day/Night function with Removable IR Cut filter guarantees optimal surveillance even in the lowest lighting. Additional technology enhancements from SSNRIII to Sens Up the camera ensure the best image quality for any surveillance application. The Samsung vandal dome camera is further built with intelligent video analytics on board and has a multi language OSD with support for Coaxil Communication.
The Samsung SCV-3080 Dome CCTV Camera is further outfitted with a 2.8-11mm varifocal lens and 3 axis camera bracket for versatile installation. The Rugged camera is designed to withstand high impacts, tampering and harsh weather. The casing has an IP66 weatherproof rating and there is an assortment of optional mounts for flexible install. The Samsung SCV-3080 also allows dual voltage input for easier integration to cctv systems. The Samsung SCV-3080 Vandal Resistant WDR Dome Security Camera is an ideal choice for performance in system applications facing harsh weather or security risk.

Samsung SCV-3080 Main Features:

  • Super Hi Res with 600tvl and 700tvl
  • Amazing Low light illumination of 0.00002Lux B/W(w/Sens-up 512x)
  • Built-in 3.9x (2.8~11mm) varifocal lens with auto iris
  • Standard model allows Two types of installation (flush or surface mount)
  • Virtual Progressive Scan, True WDR (Wide Dynamic Range), SSNRIII (
  • Multi Language OSD (On Screen Display) with Coaxial control support
  • Intelligent video analytics (on board)
  • IP66 Weatherproof Casing
  • Rugged Vandal Resistant and High Impact
  • Supports dual voltage 12VDC or 24VAC

Samsung SCV-3080 Specifications:

  • imaging Device: 1/3" Vertical double density interline CCD
  • total Pixels: 811(H) x 508(V) 795(H) x 596(V)
  • Effective Pixels: 768(H) x 494(V) 752(H) x 582(V)
  • Scanning System: 2 : 1 Interlace
  • Synchronization: Internal / Line lock
  • Frequency: H :15.734KHz / V : 59.94Hz H : 15.625KHz / V : 50Hz
  • Horizontal resolution: Color : 600TV lines (Min.) / B/W : 700TV lines (Min.)
  • Min. illumination: Color : 0.3Lux (50IRE@F1.2), 0.0006Lux (Sens-up, 512x)
  • : B/W : 0.01Lux (50 IRE@F1.2), 0.00002Lux(Sens-up 512x)
  • S / N (Y signal): 52dB
  • Video output: CVBS : 1.0Vp-p / 75O composite
  • Zoom ratio: 3.9x (Manual)
  • Focal length: 2.8 ~ 11mm (F1.2)
  • Max. aperture ratio: 1 : 1.2(Wide) ~ 2.8(Tele)
  • Min. object Distance: 0.2m (0.66ft)
  • angular Field of View: H : 94°(Wide) ~ 26°(Tele) / V : 67°(Wide) ~ 20°(Tele)
  • 3 AXIS CAMERA ADJUST PAN / TILT / ROTATE:
  • Pan range: 0° ~ 350°
  • tilt range: 0° ~ 90°
  • rotate range: 0° ~ 350°
  • on Screen Display NTSC: English, Japanese, Spanish, French, Portuguese, Taiwanese, Korean
  • PAL: English, French, German, Spanish, Italian, Chinese, Russian, Polish, Czech, Romanian, Serbian, Swedish, Danish, Turkish, Portuguese
  • Camera title: On / Off (Displayed 15 characters)
  • Day & Night: Auto (ICR) / Extern / Color / B/W
  • Backlight Compensation: WDR / User BLC / HLC / SSDR / Off
  • Wide Dynamic range: 128x 160x
  • Digital Zoom: On / Off (1x ~ 16x)
  • Digital image Stabilization (DIS): On / Off
  • intelligent Video analytics: Detection / Tracking / Fixed / Moved / Alarm out
  • Privacy Masking: On / Off (12 programmable zones)
  • 2D+3D Noise Filter (SSNRIII): On / Off (Level adjustable)
  • Sens-up (Frame integration): Auto / Off (Selectable limit ~ 512x)
  • Gain Control: Low / High / Off
  • White Balance: ATW / AWC / Manual / Indoor / Outdoor
  • Electronic Shutter Speed: 1/60 ~ 1/120,000sec 1/50 ~ 1/120,000sec
  • Shutter Mode: Fixed / ESC / Manual / A.FLK
  • Flip / Mirror: Off / H-REV / V-REV / HV-REV
  • Communication: Coaxial control (SPC-300 Compatible)
  • Protocol: Coax : Pelco-C (Coaxitron)
  • operating temperature / Humidity: -50°C ~ +50°C (-58°F ~ +122°F) / Less than 90% RH
  • Dimension (WxH): Ø160 x 134.5mm (Ø6.3" x 5.3")
  • Weight: 1.22Kg (2.69 lb)
  • ingress Protection: IP66
  • input Voltage: Dual (12VDC / 24VAC)
  • Power Consumption: Max. 3.8W (Heater off), Max. 8W (Heater on)
  • Certifications : FCC (Class A), UL/cUL listed CE (Class A), UL/cUL listed
