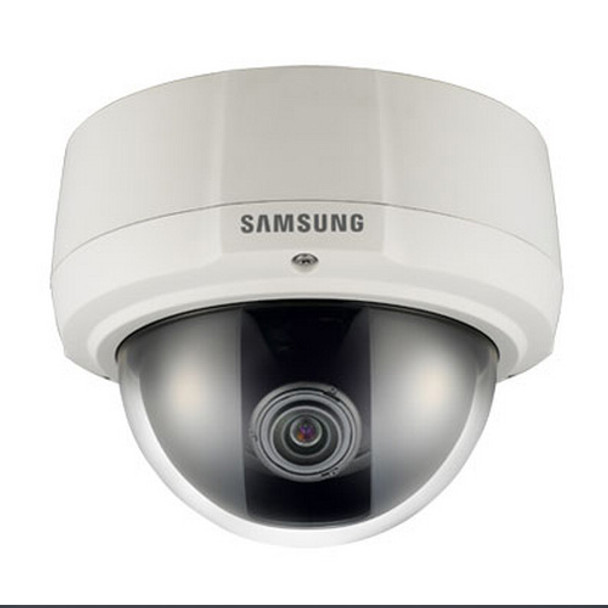

Samsung SCV-2081 Vandal Proof Dome Security Camera

Product Description

Samsung SCV-2081 Vandal Proof Day/Night Dome Security Camera is designed as a compact yet full featured rugged cctv dome camera. With superior 600tvl and 700tvl High Resolution the SCV-2081 uses the Samsung W-V DSP Chipset for supreme image clarity. The Vandal Dome Security Camera is built with a triple axis camera bracket and varifocal lens for easy camera adjustment. The Samsung SCV-2081 provides unsurpassed performance for True Day/Night operation and when using sens up the unit provides incredible low light imaging. Additional enhancements are built in like SSDR, SSNRIII, DIS, Motion Detection and Privacy Masking.
Furthermore the unit features an OSD (on screen display) with coaxil communication support for remote camera setup. The vandal dome camera also includes dual voltage operation for 12VDC or 24VAC systems. Its weatherproof and vandal proof casing ensure reliable video security in even the toughest environments. Optional Camera mounts are available in a variety of types to support nearly any install. The Samsung SCV-2081 Vandal Dome Camera is an all around professional choice for video surveillance and cctv security camera systems.

Samsung SCV-2081 Main Features:

High resolution of 600TVL (COLOR) plus 700TV lines (B/W)
Min.illumination 0.15Lux@F1.2 (Color), 0.001Lux (B/W)
3.6x Varifocal DC Auto iris lens (2.8 ~ 10mm)
True Day / Night (ICR), MD, SSNRIII
IP66 weatherproof and vandal proof IK10
Coax communication : Pelco-C
dual power 12VDC or 24VAC

Samsung SCV-2081 Specifications:

Imaging Device 1/3" Super HAD CCDII
Total Pixels 811(H) x 508(V) 795(H) x 596(V)
Effective Pixels 768(H) x 494(V) 752(H) x 582(V)
Scanning System 2 : 1 Interlace
Synchronization Internal / Line Lock
Frequency H : 15.734KHz / V : 59.94Hz H : 15.625KHz / V : 50Hz
Horizontal Resolution Color : 600 TV lines, B/W : 700TV lines
Min. Illumination: Color : 0.15Lux (50IRE@F1.2), 0.0003Lux (Sens-up, x512) B/W : 0.001Lux
S / N Ratio 52dB (AGC off, Weight on)
Video Output CVBS : 1.0 Vp-p / 75O composite
Focal Length (Zoom Ratio) 2.8 ~ 10mm (3.6x)
Max. Aperture Ratio 1 : 1.2(Wide) ~ 2.8(Tele)
Angular Field of View H : 94.4°(Wide) ~ 28°(Tele) / V : 69.2°(Wide) ~ 21°(Tele)
Lens Type DC Auto Iris
Mount Type Board Type
PAN / TILT / ROTATE
Pan Range 0° ~ 352°
Tilt Range 0° ~ 73°
Rotate Range 0° ~ 348°
On Screen Display
English, Japanese, Spanish, French, Portuguese, Taiwanese, Korean
English, French, German, Spanish, Italian, Chinese, Russian, Polish, Czech, Romanian,
Serbian, Swedish, Danish, Turkish, Portuguese
Camera Title Off / On (Displayed 15 characters)
Day & Night Auto (ICR) / Color / B/W
Backlight Compensation BLC / HLC / Off
Contrast Enhancement SSDR (Off / On)
Digital Noise Reduction SSNRIII (Off / On)
Digital Image Stabilization Off / On
Motion Detection Off / On (8 programmable zones)
Privacy Masking Off / On (12 programmable zones)
Sens-up (Frame Integration) 2x ~ 512x
Gain Control Off / Low / High
White Balance ATW / Outdoor / Indoor / Manual / AWC (1,700K° ~ 11,000K°)
Electronic Shutter Speed 1/60 ~ 1/120,000 sec 1/50 ~ 1/120,000 sec
Digital Zoom Off / On (1x ~ 16x)
Flip H-Rev (Off / On), V-Rev (Off / On)
Communication Coaxial Control (SPC-300 Compatible)
Protocol Coax : Pelco-C (Coaxitron)
Operating Temperature / Humidity -10°C ~ +50°C (+14°F ~ +122°F) / up to 100%
Ingress Protection IP66
Input Voltage Dual (24VAC±10% & 12VDC±10%)
Power Consumption Max. 3.5W
Color / Material Body : Ivory, ALDC12, Dome Cover : PC
Dimensions (WxH) Ø137.0 x 106.0mm (5.39" x 4.17")
Weight 700g (1.54 lb)
