A2Z PDN6CEU230 30x 1080P 200m IR PTZ IP Security Camera

Write a Review
Calculated at Checkout
  • A2Z PDN6CEU230 30x 2mp Starlight IR PTZ with wall mount
  • A2Z PDN6CEU230 30x 2mp 200m IR PTZ from below
  • A2Z PDN6CEU230 30x 1080P 200m IR PTZ IP Security Camera
  • A2Z PDN6CEU230 IR PTZ measurements
  • A2Z PDN6CEU230 PTZ accessories

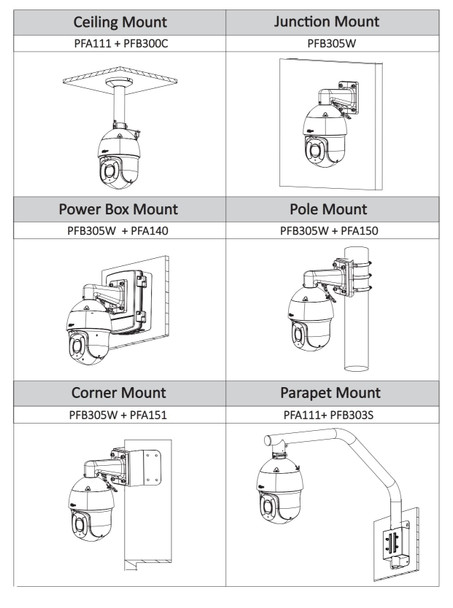

  • A2Z PDN6CEU230 PTZ Example Drawings of Optional Mounts


A2Z OEM PDN6CEU230 30x IR PTZ Security Camera is a new, highly popular and top performing PTZ for professional systems at an affordable cost. This PTZ delivers vividly sharp 1080P HD video including Color through ultra-low light conditions. It always overcomes darkness including zero light conditions thanks to its Sony starlight sensor plus a powerful IR night vision that automatically activates in monochrome mode. The model grants the latest surveillance technology benefits like H265 compression, on-board edge detection and recording as well as easy third-party security system integration via ONVIF compliance. Built with a powerful 30x optical zoom, precise Pan/Tilt movements to a full range of pro attributes like a solid IK10 high impact casing and IP67 weatherproof design attest to its capabilities in a wide array of scenarios. The fact it easily adapts both technically and physically to all sorts of demands means its value is immediately appreciated alone or as part of a great video security system.

Key Features:

  • 1/2.8" 2MP 1080P STARVIS Sensor (1920 x 1080 pixels)
  • 30x PTZ w/4.5mm~135mm Telephoto, Auto-Focus Zoom Lens
  • Superior "Starlight" Performance Color: 0.005 Lux (@F1.6); B/W: 0.0005 Lux (@F1.6); 0 Lux @F1.6 w/IR on
  • Awesome 200 meter or 650ft+ Infrared (IR) Night Vision
  • H.265+, H.265, H.264+, H.264 and MJPEG w/Triple Stream Video Encoding
  • 1080P HD at up to 60fps, Twice the speed of Real-time Main Stream - Sub-Stream up to D1 30fps and Sub-Stream 2 up to 1080p 30fps
  • Defog, True WDR 120dB, EIS (image stabilization), ROI, Day/Night (ICR), Ultra DNR (2D&3D), Auto iris, Auto focus, AWB, AGC, BLC
  • Versatile IT Protocol Integration: HTTPS, SSL, UPnP, RTSP, DDNS, FTP, QoS, ONVIF and many more
  • Auto-tracking and IVS Video Analytics like Tripwire, Intrusion, Cross Zone, Perimeter, Heat Map, Face Detection, etc.
  • Monitoring: Web Interface, FREE CMS Software & PC-NVR & FREE Mobile App
  • Quick 200°/s pan speed, 360° endless pan rotation, -20 Degree above horizon viewing and precise Pan/Tilt/Zoom
  • Up to 300 presets, auto scan and auto pan, 8 tours, 5 patterns
  • Two-Way audio Mic Line input/Speaker Line Output
  • Diverse Audio Codec Selection G.711a, G.711mu, PCM, G.726, AAC, G722.1, G.729, MPEG2-Layer2
  • Built-in 7/2 alarm in/out, 1 RS-485 Connection and 1 BNC 75ohm SD Composite video output
  • Support intelligent 3D positioning with DH-SD protocol or Pelco D/Pelco P Protocols
  • Micro SD Card Slot for local storage up to 256GB
  • Operating Range: -40°F ~ +158°F (-40ºC ~ 70ºC) / Less than 90% RH
  • Weatherproof IP67 Outdoor rated - All Metal Construction
  • IK10 High Impact Vandal Resistant Protection
  • Dimensions: Φ209mm x 357mm or Φ8.22" x 13.28"
  • Weight 5.8 kg or 12.79 lbs.
  • Power: AC24V 3A (±25%), PoE+(IEEE 802.3at)

Pro Surveillance Performance:
Utilizing the latest Sony STARVIS "Starlight" sensor this 2MP or 1080P HD PTZ provides superbly better video of even fast-moving objects thanks to its high shutter speed abilities matched with better than real-time frame rate abilities at up to 60fps in Full Resolution. True Day/Night with truly low light color and black/white imaging are exceedingly better than previous generations of IP cameras while its ultra-powerful Infrared (IR) illumination is effective to over 650 feet, promising clear imaging in zero light either way. Added enhancements like 120dB WDR and Ultra DNR couple with other advantages like EIS (Electronic Image Stabilization) for more stable, clear imaging in all sorts of challenging conditions.

Professional Pan/Tilt/Zoom:
The PDN6CEU230 will grant you the full range of professional PTZ attributes and more, even when compared to other PTZ brands often twice or three times the cost. The unit's ONVIF S and ONVIF G compliance along with numerous other IT protocol functions enable a wide range of possible applications including security systems or otherwise. The device has a full featured web interface and allows easy configurations across the board as well as grants effective live view, search, playback and export (via SD card installed) meeting the demands of even stand-alone surveillance systems in a single IP Camera.

Highly Adaptable, Fully Loaded:
The unit is built tough with an IK10 high impact rating for its casing giving it strong vandal resistance while likewise its IP67 weatherproof rating and wide temperature range support enable this unit to withstand the harshest environments. It includes a wall mount bracket and 110VAC to 24VAC power adapter but also supports PoE+ enabling single cable installation that’s clean and easy. Further there is an array of optional mounting adapters to suite most any professional install method needed including pipe mount adapters, pole mounts, ceiling mounts and more. Support for Two Way Audio, Alarm I/O and more only add to the numerous perks this PTZ has to offer.

Compare A2Z PDN6CEU230 to OEM Dahua Branded SD6CE230UN-HNI or 6CE230UNI versions

Last Updated: February 27th, 2020
