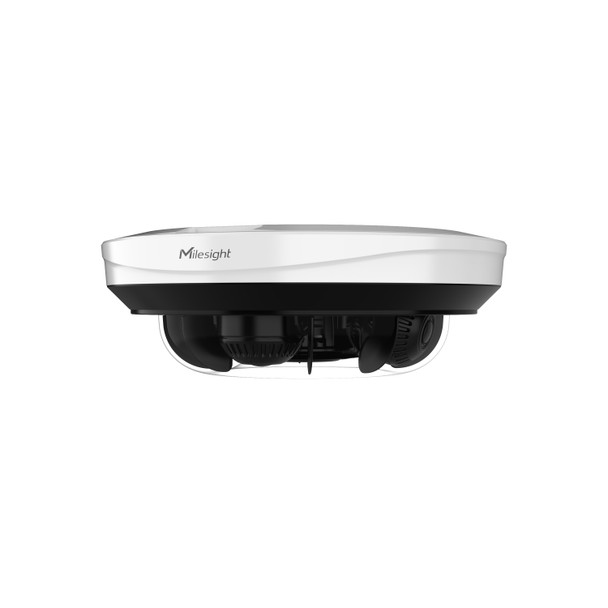

Milesight MS-C5321-FPE Multi-Directional AI 4x 5MP IR Dome IP Camera

Milesight MS-C5321-FPE Multi-Directional AI 4x 5MP IR Dome IP Cameras deliver the next generation in multi-sensor security cameras for comprehensive, smart surveillance from a single device. Generating a total of 20 Megapixels, this network camera includes four independent 5-megapixel cameras featuring motorized lenses, powerful image enhancements like WDR to absolute night vision and flexible camera orientation all within a single sleek dome housing. The device offers all the modern perks of professional security while minimizing install and even necessary cables. Offering cutting-edge compression methods, individual streams per camera as well as some specialized streams like a quad-view stream, the device combines a wealth of supported network protocols from SIP to RTMP, RTSP or ONVIF for wide professional video system integration, even beyond security or surveillance system demands.

Of course, empowered by Milesight A.I. (Artificial Intelligence) video analysis the unit can provide rich meta-data with exceptional efficiency in minimizing false alarms and other special purpose task. Unique benefits like a built-in WiFi access point for installation and configuration also help ease setup of the newly installed device. The benefit of high-capacity on-board storage to professional web interface, mobile apps and software mean the unit is also fully able and well equipped to perform stand-alone operation. Built tough, the Milesight MS-C5321-FPE Multi-Directional AI 4x 5MP IR Dome IP Camera is also ready for harsh outdoor environments as well as potential high impacts. Ready for surface, ceiling mounting out of the box, this multi-sensor camera also has a wide variety of optional pro mounting accessories to help achieve a clean, reliable deployment almost anywhere you can imagine.

Milesight MS-C5321-FPE Multi-Directional / Multi-Sensor Main Features:

• 4x 1/2.8" 5 MegaPixel @ 30fps Real-time (Each Sensor)
• 4x Independent Positioning Cameras
• Motorized lenses: 3~9mm, 3X Optical: HFOV 92° ~ HFOV 40° / VFOV 67° ~ VFOV 30°
• 360° IR LED Night Vision up to 30m
• Color: 0.005 Lux @F1.6, B/W: 0 Lux with IR on
• Super Wide Dynamic Range (WDR 120dB)
• A.I. (Artificial Intelligence) Vehicle/Human, etc. Detection
• 3-Axis Camera OrientationONVIF for 3rd Party Security Systems
• Plug-in Free Multi-Web Browser Support
• Support 2x 1TB SD Card Storage
• Audio External I/O device
• Alarm/Relay External I/O device support
• White Housing
• Weatherproof up to IP66 rating
• Vandalproof High Impact IK10
• Surge Protection
• PoE+ OR 12VDC Power Support
• NDAA Compliant Build

Multi-Sensor Multi-Diretional NDAA MS-C5321-FPE Camera Specifications:

Model: 4 x 5MP AI Multi-directional Network Camera
Image Sensor: 4x 1/2.8″ Progressive Scan CMOS Sensors
Min. Illumination: Color: 0.005Lux@F1.6 - B/W: 0Lux with IR on
WDR: 120dB Super WDR
Shutter Time: 1/100000s~1s
Day/Night Mode: Day/Night/Auto/Customize/Schedule
DORI Distance
D:64m ~ 150m/ O:23m ~ 59m
R:9.5m ~ 28.5m/ I:3m ~ 14m
IR Wave Length: 850nm
IR Distance: 30m
S/N >55dB

Lens
Lens: Motorized 3mm~9mm @F1.6
Mount: φ14
Field of View Per Sensor: H92° ~ H40°/ D116° ~ D49°/ V67°~V30°
Focus Control: Remote
Aperture: F1.6-F2.7
Iris Control: Fixed
Camera Angle Adjustment: Pan ±120°, Tilt +15 to +105°, Rotation ±90°, Twist ±30°

Video
Max. Image Resolution 2592x1944 (5MP) x 4 Streams / Channels
Primary Stream
60Hz: 30fps@ (2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720)
50Hz: 25fps@ (2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720)
Secondary Stream
60Hz: 30fps@ (1280x720, 704x576, 640x480, 640x360, 352x288, 320x240)
50Hz: 25fps@ (1280x720, 704x576, 640x480, 640x360, 352x288, 320x240)
Bundle Stream
60Hz: 30fps@ (1920x1080, 1280x960, 1280x720)
50Hz: 25fps@ (1920x1080, 1280x960, 1280x720)
Video Compression: H.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate: 16Kbps~16Mbps (CBR/VBR Adjustable)
Privacy Masking: Up to 4x8 areas
ROI: Up to 4x8 areas
Image Setting: Brightness/Contrast/Saturation/Sharpness
Web Access: Support Chrome/Microsoft Edge/Safari/Firefox/Browser

Interface
Ethernet: 1*RJ45 10M/100M/1000M Ethernet Port
Alarm I/O: 1/1
Audio I/O: 1/1

Network
Network Storage NAS (Support NFS, SMB/CIFS)
Protocol: IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL, TLS 1.2

Wireless Network
WLAN: 802.11n/802.11g (For Installation and Commissioning)

Audio
Audio Compression G.711/AAC/G.722/G.726
Audio Sampling Rate 8/16/32/44.1/48KHz
Audio Bit Rate 16~256kbps

Intelligent AI powered Analytics:
Video Analysis: Intrusion Detection, Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
A.I. Target Classification: Human, Motor Vehicle (Car, Motorcycle, Bus, Truck), Non-motor Vehicle (Scooter)
Alarm Event Network Disconnected; IP Address Conflict; Record Failed; No SD Card; SD Card Full; SD Card Error; SD Card Uninitialized

System
Storage Supports: 2 microSD/SDHC/SDXC cards for local storage, each with a maximum capacity of 1TB
Advanced Function: BLC, HLC, 2D DNR, 3D DNR, AWB, IP Address Filtering, AGC, Anti-flicker, Deblur, Watermark
SIP/VoIP Support: Support
Event Trigger: Motion Detection, Network Disconnection, Audio Alarm, External Output, etc.
Event Action: FTP Upload, SMTP Upload, SD Card Record, SIP Phone, HTTP Notification, etc.
System Compatibility: ONVIF Profile G & S & T & M, API

General
Working Temperature: -40°C~60°C
Working Humidity: 0~95%(Non-condensing)
Power Supply: PoE(802.3at)/ DC 12V±20%
Power Consumption:
DC Max. power consumption: 20W
POE Max. power consumption: 23W
Surge Protection: 4KV
Weather Proof: Up to IP66-rated for Weather-resistant Performance
Housing: Vandal-proof IK10-rated Metal Housing
Weight: 3.1kg (Only camera), 3.8kg (With package)
Dimensions: φ280mmX97mm
Warranty: 3/5 Years
