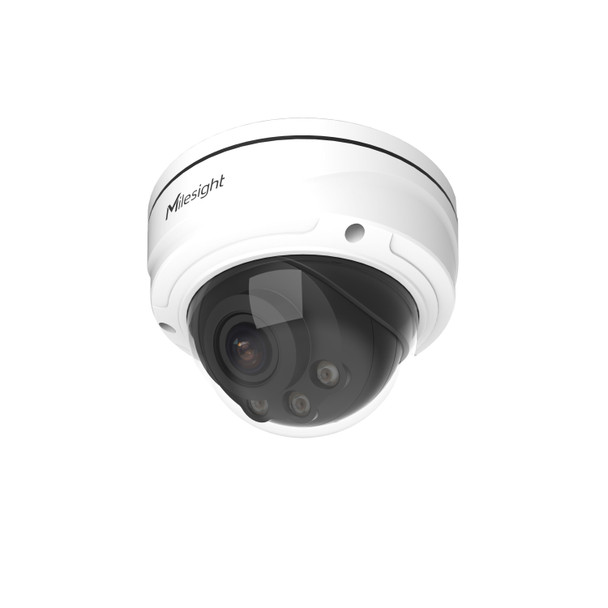

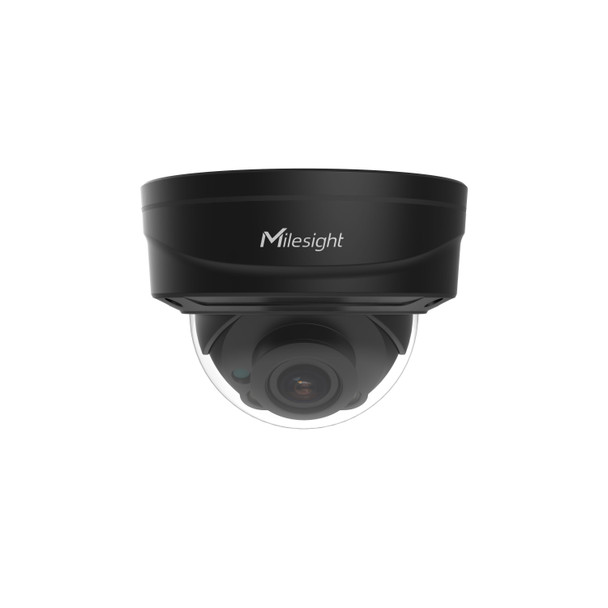

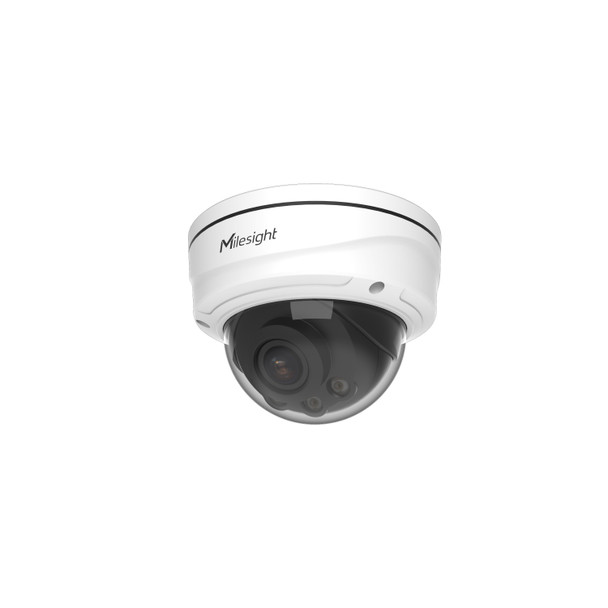

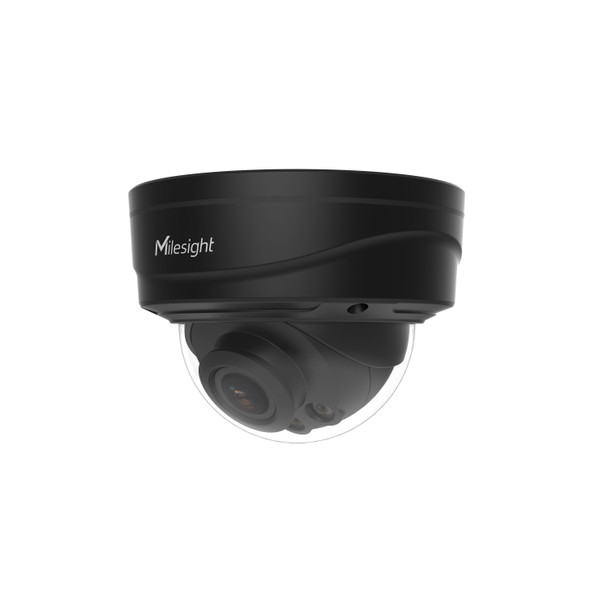

Milesight MS-C5372-FIPE 5MP AI Vandalproof Dome IP Security Camera

Milesight MS-C5372-FIPE 5MP AI Pro Dome Network Security Cameras include a wealth of high performance and advanced attributes. Boasting 5 Megapixel super HD video detail backed with efficient video compression selections the units further offer motorized P-Iris lens, True WDR and powerful IR Night vision promising results in all types of lighting. The added advantages of universal integration with ONVIF compliance to perks like A.I. (Artificial Intelligence) enhanced detection grant exceptional value to any system. Built with a weatherproof as well as vandalproof design additional perks like external I/O sensor, relay and audio connections expand the possibilities greatly.



Milesight MS-C5372-FIPE Main Features:



Milesight MS-C5372-FIPE Specifications:



5MP NDAA AI Motorized Pro Dome Network Camera

Image Sensor 1/2.8" Progressive Scan CMOS

Min. Illumination: Color: 0.005 Lux @F1.2, Color: 0.008 Lux @F1.4, B/W: 0 Lux with IR on

WDR 120dB Super Wide Dynamic Range

Shutter Time: 1/100000s~1s

Day/Night Modes: Day/Night/Auto/Customize/Schedule

IR Night Vision: Up to 50m (90m Special Order w/7-22mm)

S/N: >55dB

Motorized 2.7~13.5mm @ F1.4, P-Iris (Optional 3.0~10.5mm/7~22mm Special Order)

Field of View: HFOV 100°~ HFOV 32°/DFOV 125° ~ DFOV 40° /VFOV 74° ~ VFOV 24° (2.7~13.5mm)

               HFOV 90°~ HFOV 31°/ DFOV 114° ~ DFOV 38° / VFOV 67° ~ VFOV 23°(3.0~10.5mm)

Lens Mount: Φ14

Focus Control: Auto/Manual

Iris Control: P-Iris with Auto/Manual

Video Max. Image Resolution (2592x1944 or 5 Megapixel)

Primary Stream:

60Hz: 30fps@ (2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576)

50Hz: 25fps@ (2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576)

Secondary Stream:

60Hz: 30fps@ (704x576, 640x480, 640x360, 352x288, 320x240)

50Hz: 25fps@ (704x576, 640x480, 640x360, 352x288, 320x240)

Tertiary Stream:

60Hz: 30fps@ (1280x720, 704x576, 640x480, 640x360, 352x288, 320x240)

50Hz: 25fps@ (1280x720, 704x576, 640x480, 640x360, 352x288, 320x240)

Video Compression: H.265+/H.265(HEVC)/H.264+/H.264/MJPEG

Video Bit Rate: 16Kbps~16Mbps (CBR/VBR Adjustable)

Privacy Masking Up to 24 areas

ROI Up to 8 areas

Image Settings: Saturation/Brightness/Contrast/Sharpness

Interface Ethernet: 1*RJ45 10M/100M Ethernet Port

Audio I/O: Built-in Microphone and 1 Audio Output interface

Alarm I/O: 1/1 input/output for external Sensor/Relay

Network

Network Storage: NAS (Support NFS, SMB/CIFS), ANR

Network Protocols: IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL

Audio Compressions: G.711/AAC/G.722/G.726

Audio Sampling Rate: 8/16/32/44.1/48KHz

Audio Bit Rate: 16~256kbps

Two-way Audio: Support

Intelligent Analytics

Video Analysis: Intrusion Detection, Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed

Face Detection & Face: Attribute Recognition, Detect and capture faces, get real-time snapshots; The attributes include Age, Gender, Glasses, Mask and Cap, Support Faces Privacy Mode, the detected faces in the face detection area will be mosaic automatically.

Object Counting & Report: Count the number of objects crossing the line, optionally human and vehicle,

Support regional people counting for up to 4 detection areas

System

Storage Support: microSD/SDHC/SDXC Card Local Storage, up to 1TB

Advanced Function: Heat Map, BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark

SIP/VoIP Support: Yes, Voice & Video-over-IP

Event Trigger: Motion Detection, Network Disconnection, Audio Alarm, External Input, etc.

Event Action: FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc.

System Compatibility: ONVIF Profile G & M & S & T, API

General Working Temperature: -40~60 C

Working Humidity: 0~90%(Non-condensing)

Power Supply: PoE(802.3af) or DC 12V±10%

Power Consumption: 5W MAX, 7W MAX (With IR on)

Weather Proof: Up to IP67-rated for Weather-resistant Performance

Housing Vandal-proof IK10-rated Metal Housing

Weight: 1100g

Dimensions: Φ143mm X 108.4mm

Warranty: 3 Years (5 Year option)
