Milesight MS-C5371-X12PE 5MP AI 12x IR Vandal Dome PTZ IP Security Camera

Milesight MS-C5371-X12PE 5MP AI 12x IR Vandal Dome PTZ IP Cameras set a new standard in compact Pan-Tilt-Zoom security cameras. The device is equipped with a powerful low light 5-megapixel image sensor accompanied by cutting edge image enhancements like true WDR and compression methods like H.265 for superior video quality. The device further combines high precision, high speed movement and powerful optical zoom all within a mini dome PTZ camera housing. The unit further includes powerful IR Night Vision effective up to 525 feet. On every level, the device is designed with superior quality ranging from a rich plug-in free web browser interface to third party system interoperability including numerous IT standards like ONVIF, SIP, RSTP, RTMP and more. High-capacity on-board storage to NAS storage support and plenty more is all available.

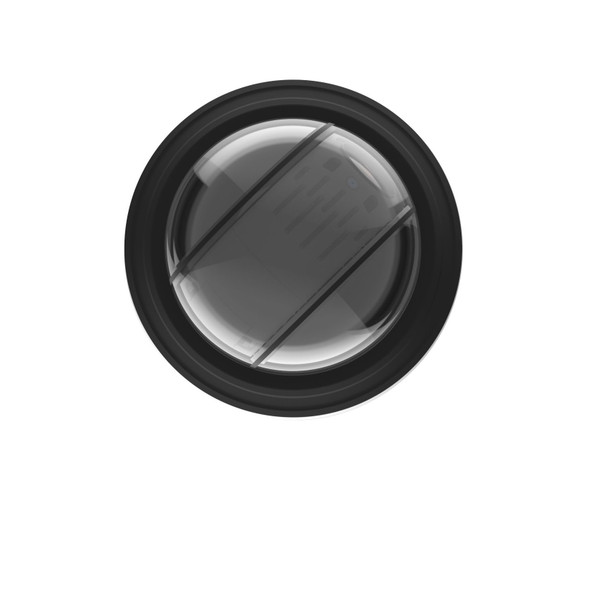

Built in rugged weatherproof IP66 and IK10 vandalproof, high impact housing, the Milesight Vandal PTZ Security Camera is further ready to face wide temperature ranges including extreme cold and high heat. Supplied by default in its white casing, an all-black version is available special order. Additionally, the unit is ready for surface ceiling mounting with no extra parts required while optional accessories for pole mount, pipe mount or wall mount as example are all also available. Milesight MS-C5371-X12PE 5MP AI 12x IR Vandalproof Dome PTZ IP Camera is also NDAA compliant and ready to deliver pro surveillance in all sorts of high security environments.

Milesight MS-C5371-X12PE Main Features:

• 1/2.8" 5MP 2592x1944 @ 30fps Real-time Frame Rat
• 12X AF Optical Zoom Lens 5.3~64mm HFOV 57° ~ HFOV 4° / VFOV 44° ~ VFOV 1°
• Color: 0.008 Lux @ F1.6 / B/W: 0 Lux IR ON
• Super WDR (120dB Wide Dynamic Range)
• Powerful IR Night Vision up to 160m
• Efficient Video Compressions H.265+, H.265, H.264+, H.264
• 360° endless Pan, -5°~90° Tilt
• Pan Manual Speed: 0.1°~450°/s, Preset Speed: 450°/s
• Tilt Manual Speed: 0.1°~360°/s, Preset Speed: 360°/s
• 300 Preset Points, 8 Patrols, 48 presets per patrol, 4 Patterns
• Supports Micro SD card (1TB max)
• Alarm I/O Input/Output for External Sensor/Relay
• Audio I/O Input/Output for External Microphone/Speaker
• A.I. Enhanced Human/Vehicle Detection
• Plus, Video Content Analysis & People Counting
• IP66 Weatherproof Rating
• IK10 High Impact Vandalproof Rating
• 4KV Surge Protection
• DC 12V or PoE+ Support

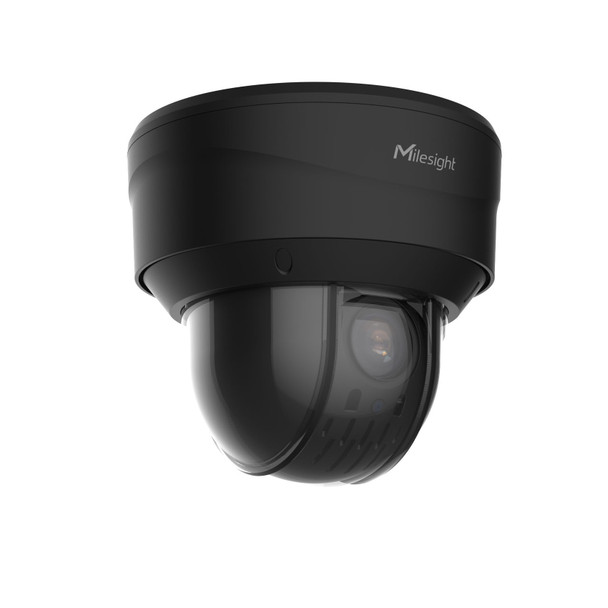

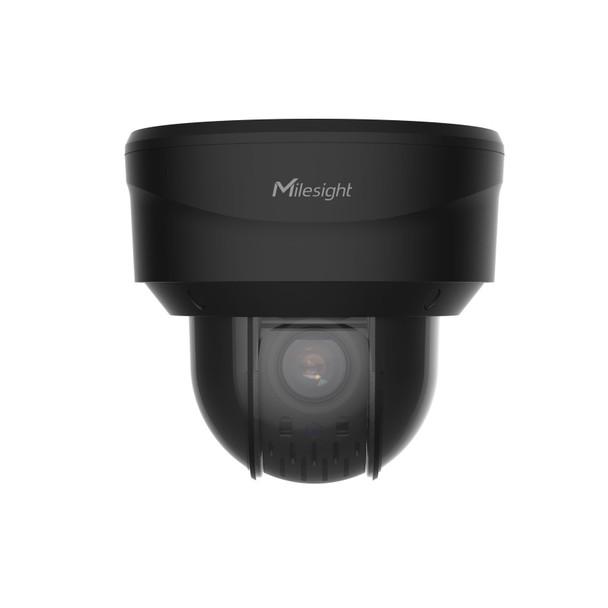

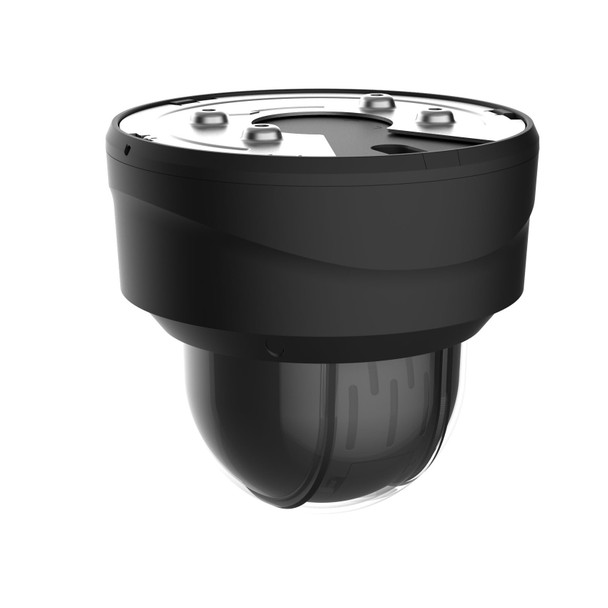

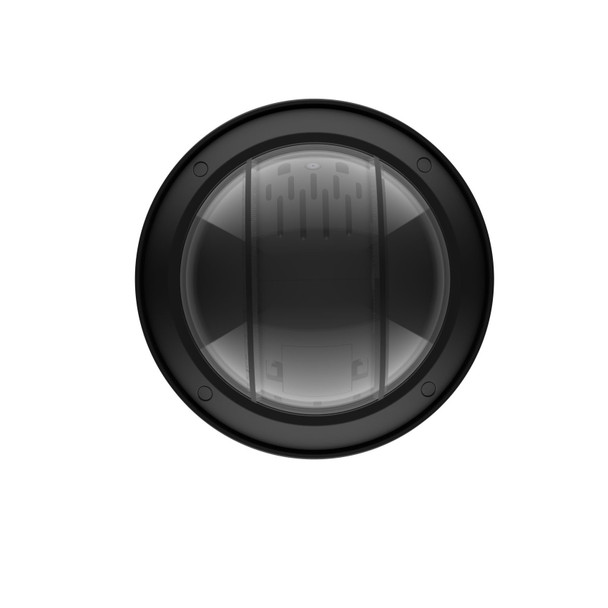

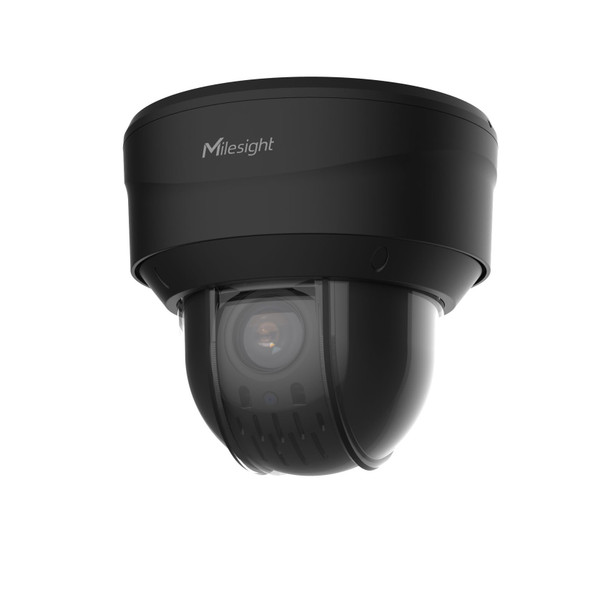

• Special Order: Black Housing & Smoked Dome Cover Options

Milesight MS-C5371-X12PE Specifications:

5MP NDAA AI 12X PTZ Dome Network Camera
Image Sensor: 1/2.8" Progressive Scan CMOS
Min. Illumination: Color: 0.002 Lux @F1.2, Color: 0.005 Lux @F1.6, B/W: 0 Lux with IR on
WDR: 120dB Super Wide Dynamic Range
Shutter Time: 1/100000s~1s
Day/Night Modes: Day/Night/Auto/Customize/Schedule
S/N: >55dB
Digital Zoom: 16X
Lens 5.3~64mm, 12X Optical Zoom Lens
Zoom Speed: Approx 4s (Wide-Tele)
Field of View: HFOV 57° ~ HFOV 4°/ DFOV 69° ~ DFOV 5°/ VFOV 44° ~ VFOV 1°
Focus Control: Auto/Semi-Auto/Manual
Minimum Working Distance: 100/1500mm (Wide/Tele)
Aperture: F1.6~F2.8
Iris Control: Auto
PTZ Pan Range/Pan Speed 360° endless/ Pan Manual Speed: 0.1°∼450°/s, Pan Preset Speed: 450°/s
Tilt Range/Tilt Speed: -5°~90° (Auto Flip)/ Tilt Manual Speed: 0.1°~360°/s, Tilt Preset Speed: 360°/s
Proportional Zoom: Support
Preset Quantity: 300
Patrol: 8 Patrols, up to 48 presets each patrol
Pattern: 4 Patterns
Power Off Memory: Support
Other Function Auto Scan, Auto Home, Preset Freezing, 3D Positioning, PTZ Limits, Initial Position
IR Night Vision Irradiation Distance: Up to 160m
Irradiation Angle: Auto/Manual
Video Max. Image Resolution: 1920x1080 (1080p / 2 Megapixel)
Primary Stream:
60Hz/50Hz: 30fps@ (2592x1944, 2592x1520), 45fps@(2048x1536), 60fps@ (1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream:
60Hz/50Hz: 30fps@ (704x576, 640x480, 640x360, 352x288, 320x240, 320x180)
Tertiary Steam:
60Hz / 50hz: 30fps@ / 25fps@ (1280x720, 704x576, 640x480, 640x360, 320x240, 320x180)
Video Compression: H.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate 16Kbps~16Mbps (CBR/VBR Adjustable)
Privacy Masking: Up to 24 areas
ROI: Up to 8 areas
Image Settings: Saturation/Brightness/Contrast/Sharpness
Interface Ethernet: 1*RJ45 10M/100M Ethernet Port
Audio I/O: 1/1 for External Devices
Alarm I/O: 1/1 for External Devices
Network Storage Support: NAS (Support NFS, SMB/CIFS), ANR
Network Protocols: IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
Audio Compressions: G.711/AAC/G.722/G.726
Audio Sampling Rate: 8/16/32/44.1/48KHz
Audio Bit Rate: 16~256kbps
Two-way Audio: Support
Intelligent Analytics / Video Analysis Intrusion Detection, Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
Face Detection & Face Attribute Recognition: Detect and capture faces, get real-time snapshots; The attributes include Age, Gender, Glasses, Mask and Cap; Support Faces Privacy Mode, the detected faces in the face detection area will be mosaic automatically.
Object Counting & Report: Count the number of objects crossing the line, optionally human and vehicle, Support regional people counting for up to 4 detection areas
On-board Storage Support: microSD/SDHC/SDXC Card Local Storage, up to 1TB
Advanced Function: BLC, HLC, 2D DNR, 3D DNR, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP Support: Yes, Voice & Video-over-IP
Event Trigger: Motion Detection, Network Disconnection, External Input, Audio Alarm, etc.
Event Action: FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, PTZ Motion, HTTP Notification, etc.
3rd Party Security System Compatibility: ONVIF Profile G & Q & S & T, API
General Working Condition: Temperature: -40° ~ 60° C / Humidity: 0~90%(Non-condensing)
Power Supply: PoE(802.3at)/ DC 12V/3A ±10%
Power Consumption: 12W MAX/ 20W MAX (With IR on)
Weather Proof: Up to IP66-rated for Weather-resistant Performance
Housing Vandal-proof IK10-rated Metal Housing
Surge Protection: 4KV
Dimensions: Φ183mm X 174.8mm
Weight: 2Kg
Warranty: 2 Years/ (3 Years Optional)
