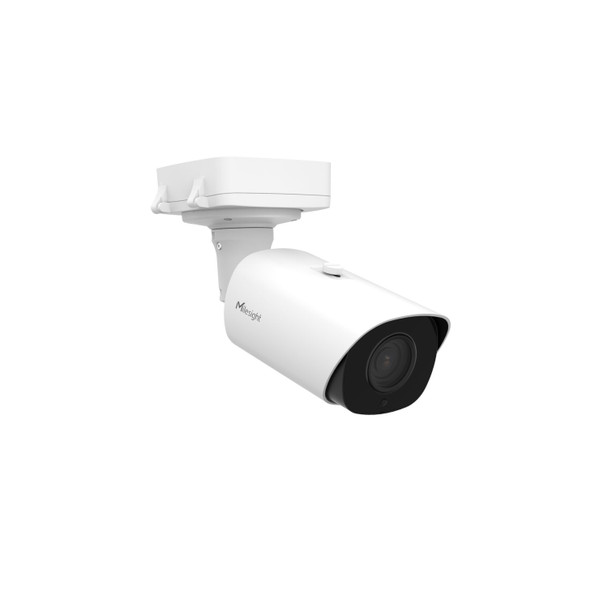

Milesight MS-C2966-X12RPE 1080p AI 12X Pro+ Zoom IR Bullet IP Security Camera

Milesight MS-C2966-X12RPE 1080p AI 12X Pro IR Bullet Plus Network Security Camera is a top performance solution for surveillance and more. The unit boast twice that of real-time frame rates at up to 60fps in up to 1080p resolution and especially notable is it is equipped with a powerful 12x zoom lens allowing the acquisition of covering distant areas compared to typical bullet cameras. Additionally, a long-range, market leading high-powered IR night vision ensures image clarity even in zero light while true WDR promises clear viewing in challenging high contrast scenes. The units are likewise built with all the pro perks one could desire ranging from A.I. (Artificial Intelligence) based detection to open-platform system integration with ONVIF as well as stand-alone recording with high-capacity micro-SD card slot and multi-browser, plug-in free support. The units are also equally robust in their construction including weatherproof, vandalproof design while also featuring an integrated junction box and surge protection. Support for external devices including Alarm and Audio I/O promise a unit highly capable of satisfying countless requirements.

Milesight MS-C2966-X12RPE Main Features:

• 1/2.8" 2 MegaPixel (1920x1080) 1080p @ 60fps Real-time
• Special Order 100fps version available
• Zoom lens: 5.3~64mm, 12X Optical Zoom: HFOV 61° ~ HFOV 5°/ VFOV 36° ~ VFOV 2°
• High Power IR Night Vision up to 180m
• Color: 0.008 Lux @F1.6, B/W: 0 Lux with IR on
• Super Wide Dynamic Range (WDR 140dB)
• A.I. (Artificial Intelligence) Vehicle/Human Detection
• 3-Axis Camera Orientation
• ONVIF for 3rd Party Security Systems
• Multi-Web Browser Support
• Micro SD Card Support
• Audio External I/O device
• Alarm/Relay External I/O device support
• White Housing
• Weatherproof up to IP67 rating
• Vandalproof High Impact IK10
• Optional Heating Module (for -60°C)
• A62 Junction Box Included
• Surge Protection
• PoE OR 12VDC Power Support

Milesight MS-C2966-X12RPE Specifications:

2MP NDAA AI 12X Pro Bullet Plus Network Camera
Image Sensor: 1/2.8" Progressive Scan CMOS
Min. Illumination: Color: 0.005Lux @F1.6, B/W: 0Lux with IR on
WDR 140dB (Super Wide Dynamic Range)
Shutter Time: 1/100000s~1s
Day/Night Modes: Day/Night/Auto/Customize/Schedule
Long Range IR Night Vision up to 180m
S/N : >55dB
Zoom Lens: 5.3~64mm, 12X Optical Zoom
Field of View: HFOV 61° ~ HFOV 5°/DFOV 69° ~ DFOV 5°/VFOV 36° ~ VFOV 2°
Lens Mount: Φ14
Focus Control: Auto/Manual
Aperture: F1.6~F2.8
Iris Control: Auto
Video Max. Image Resolution: 2 Megapixel 1920x1080 (1080p)
Frame Rates Per Stram:
Main Stream:
60Hz: 90fps @ (1920x1080 Special Order), 60fps@ (1920x1080, 1280x960, 1280x720, 704x576)
50Hz: 90fps@ (1920x1080 Special Order) 50fps@ (1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream
60Hz: 90fps@ (704x576 Special Order), 60fps@ (704x576, 640x480, 640x360, 352x288, 320x240)
50Hz: 90fps@ (704x576 Special Order), 50fps@ (704x576, 640x480, 640x360, 352x288, 320x240)
Tertiary Stream:
60Hz: 30fps@ (1280x720, 704x576, 640x480, 640x360, 352x288, 320x240)
50Hz: 25fps@ (1280x720, 704x576, 640x480, 640x360, 352x288, 320x240)
Video Compressions: H.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate: 16Kbps~16Mbps (CBR/VBR adjustable)
Privacy Masking: Up to 24 areas
ROI: Up to 8 areas
Image Settings: Saturation/Brightness/Contrast/Sharpness
Web Access Support: IE/Firefox/Chrome/Safari Browser
Audio Compressions: G.711/AAC/G.722/G.726
Audio Sampling Rate: 8/16/32/44.1/48KHz
Audio Bit Rate: 16~256kbps
Two-way Audio: Support
Interface Ethernet: 1*RJ45 10M/100M Ethernet Port
Audio I/O: 1/1 Input/Output for external Microphone / Speaker
Alarm I/O: 1/1 Input/Output for external Sensor / Relay devices
Network Storage: NAS (Support NFS, SMB/CIFS), ANR
Network Protocols: IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL

Intelligent Analytics
Video Analysis: Intrusion Detection, Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
Face Detection Face Attribute Recognition Detect and capture faces, get real-time snapshots; The attributes include Age, Gender, Glasses, Mask and Cap.
Object Counting & Report: Count the number of objects crossing the line, optionally human and vehicle,
Support regional people counting for up to 4 detection areas

System
Storage Support: microSD/SDHC/SDXC Card Local Storage, up to 1TB
Advanced Function: Heat Map, BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP Support: Yes, Voice & Video-over-IP
Event Trigger: Motion Detection, Network Disconnection, External Input, Audio Alarm, etc.
Event Action: FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc.
System Compatibility: ONVIF Profile G & M & S & T, API

General
Working Temperature:
-40°~60°
-60°~60°C (Optional for Heater Version)
Working Humidity: 0~95%(Non-condensing)
Power Supply: PoE (802.3af) / DC 12V±10%
Power Consumption:
14W MAX (With IR on)
10W Max (With Heater on)
Heater on: below 10°C, Heater off: above 25°C
Housing: Vandal-proof IK10-rated Metal Housing / Up to IP67-rated for Weather-resistant Performance
Surge Protection: 4KV
Weight: 1447g
Dimensions: 320mm X 134mm X 126mm
Warranty: 3/5 Years
