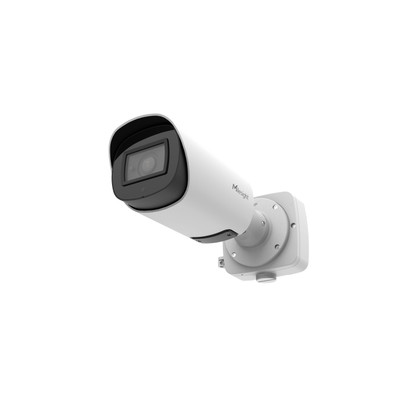

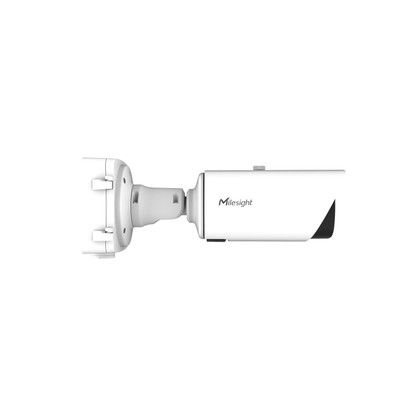

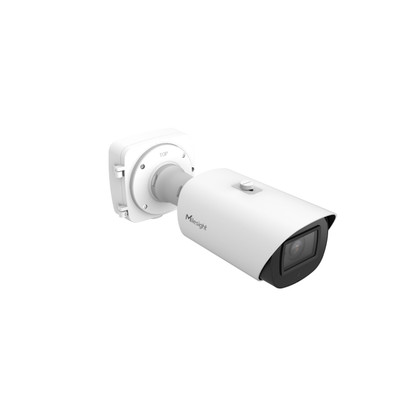

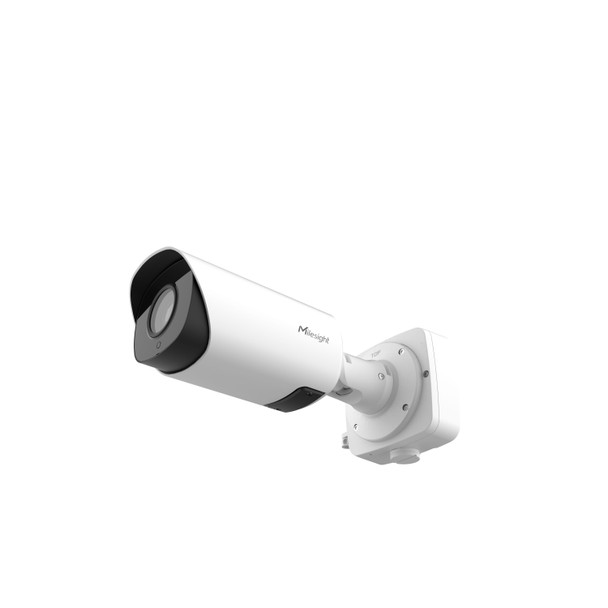

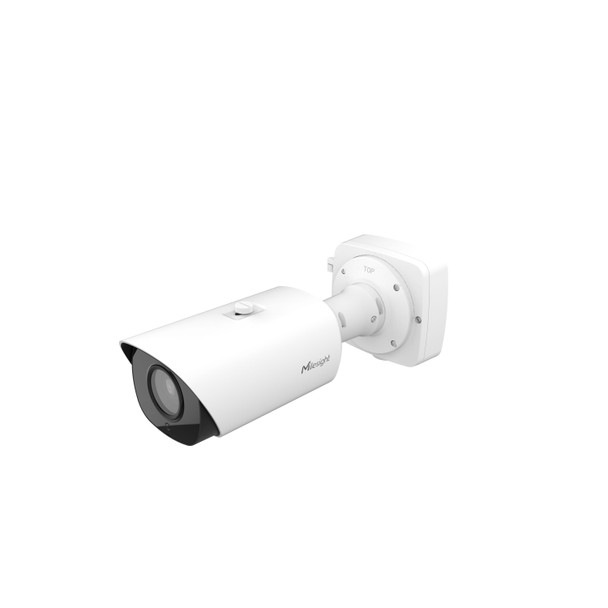

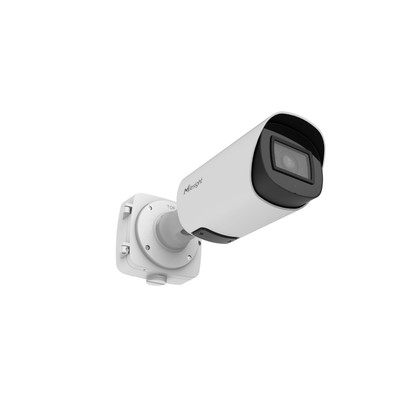

Milesight MS-C4466-X4RPE 4MP AI 4X Pro Plus Zoom IR Bullet IP Security Camera

Milesight MS-C4466-X4RPE 4MP AI 4X Pro Plus Zoom IR Bullet IP Security Camera is a top performer among high-end surveillance cameras, rich in attributes and outfitted with a powerful lens for long-range capabilities. Constructed with a high-end large format Sony Starvis Super Low Light 4-Megapixel Sensor, the device provides impressive QHD or 2K video at high frame rates of up to 60fps or twice real-time speeds, making it ideal for detailed capture of high-speed scenes. Optimal video clarity is further ensured thanks partially to its range of advanced image processing such as its highly rated 140db Wide Dynamic Range. Industry leading IR Night Vision pairs with a long-range 4x Optical Zoom Lens allowing capture of distant areas with exceptional results any time of day.

Milesight MS-C4466-X4RPE 4MP AI 4X Pro Plus Zoom IR Bullet IP Camera delivers not only top tier performance, but likewise best in class features and functions. On every aspect, attributes ranging from highly capable integration, including third party systems is all achievable via a vast selection of pro IT protocols like SIP, RTSP, RTMP or ONVIF. Likewise ample perks like Alarm and Audio I/O, high-capacity edge storage, to of course advanced A.I. powered Video Content Analysis are all on-board to satisfy countless demands. Built tough, the device is weatherproof, vandalproof, includes an integrated junction box and supports wide temperature operation for reliable use even in the harshest outdoor conditions.

Milesight MS-C4466-X4RPE 4MP AI 4X Pro+ Bullet Main Features:

• 1/1.8" 4 MegaPixel (2688x1520) 2k @ 60fps Real-time
• Zoom lens: 8~32mm, 4X Optical Zoom: HFOV 44° ~ HFOV 13°/ VFOV 25° ~ VFOV 7°
• High Power IR Night Vision up to 180m
• Color: 0.002 Lux @F1.6, B/W: 0 Lux with IR on
• Super Wide Dynamic Range (WDR 140dB)
• A.I. (Artificial Intelligence) Vehicle/Human Detection
• 3-Axis Camera Orientation
• ONVIF for 3rd Party Security Systems
• Multi-Web Browser Support
• Micro SD Card Support
• Audio External I/O device
• Alarm/Relay External I/O device support
• White Housing
• Weatherproof up to IP67 rating
• Vandalproof High Impact IK10
• Optional Heating Module (for -60°C)
• A62 Junction Box Included
• Surge Protection
• PoE OR 12VDC Power Support

Milesight MS-C4466-X4RPE Specifications:

Camera
NDAA AI 4X/12X Pro Bullet Plus Network Camera
Image Sensor: 1/1.8″ Progressive Scan CMOS
Min. Illumination: Color: 0.002Lux@F1.6, B/W: 0Lux with IR on
WDR 140dB Super WDR
Lens: 8~32mm, 4X Optical Zoom
Mount: Φ14
Field of View: H44°~H13°/D51°~D15°/V25°~V7°
Focus Control: Auto/Manual
Aperture: F1.6-F1.7
Iris Control: Auto
Shutter Time: 1/100000s~1s
IR Distance Up to 180m
Day/Night Mode: Day/Night/Auto/Customize/Schedule
S/N: >55dB

Video
Max. Image Resolution: 2688x1520 (2K / 4-Megapixel)
Primary Stream:
60Hz: 60fps@ (2688x1520, 2304x1296, 1920x1080, 1280x720)
50Hz: 50fps@ (2688x1520, 2304x1296, 1920x1080, 1280x720)
Secondary Stream:
60Hz: 60fps@ (704x576, 640x480, 640x360, 352x288, 320x240)
50Hz: 50fps@ (704x576, 640x480, 640x360, 352x288, 320x240)
Tertiary Stream:
60Hz: 30fps@ (1280x720, 704x576, 640x480, 640x360, 320x240)
50Hz: 25fps@ (1280x720, 704x576, 640x480, 640x360, 320x240)
Video Compression: H.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate: 16Kbps~16Mbps (CBR/VBR Adjustable)
Privacy Masking: Up to 8 Areas (Mask Area and Mosaic Area are optional)
ROI: Up to 8 areas
Image Setting: Brightness/Contrast/Saturation/Sharpness

Interface
Ethernet: 1*RJ45 10M/100M Ethernet Port
Audio I/O: 1/1
Alarm I/O: 1/1

Network
Network: Storage NAS (Support NFS, SMB/CIFS), ANR
Protocol: IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL, TLS 1.2
Audio
Audio Compression: G.711/AAC/G.722/G.726
Audio Sampling Rate: 8/16/32/44.1/48KHz
Audio Bit Rate: 16~256kbps
Two-way Audio: Support

Intelligent Analytics
Video Analysis: Intrusion Detection, Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
Face Detection & Face Attribute Recognition: Detect and capture faces, get real-time snapshots; The attributes include Age, Gender, Glasses, Mask and Cap.
Object Counting & Report: Count the number of objects crossing the line, optionally human and vehicle,
Support regional people counting for up to 4 detection areas
System
Storage Support: microSD/SDHC/SDXC Card Local Storage, up to 1TB
Advanced Function: Heat Map, BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP Support: Yes, Voice & Video-over-IP
Event Trigger: Motion Detection, Network Disconnection, External Input, Audio Alarm, etc.
Event Action: FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc.
System Compatibility: ONVIF Profile G & M & S & T, API

General
Working Temperature:
-40°C~60°C
-60°C~60°C (Optional for Heater Version)
Working Humidity: 0~95%(Non-condensing)
Power Supply: PoE (802.3af) / DC 12V±10%
Power Consumption: 8W MAX
14W MAX (With IR on)
10W Max (With Heater on)
Heater on: below 10°C, Heater off: above 25°C
Housing: Vandal-proof IK10-rated Metal Housing / Up to IP67-rated for Weather-resistant Performance
Surge Protection: 4KV
Weight: 1445.8g
Dimensions: 320mm X 134mm X 126mm
Warranty: 3/5 Years
