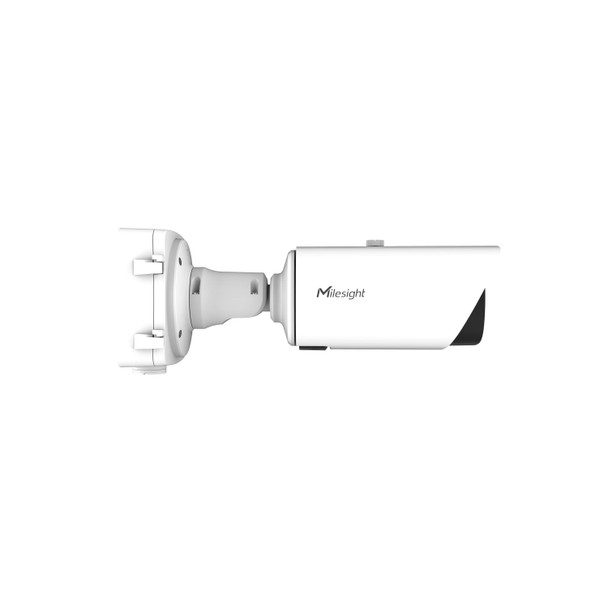

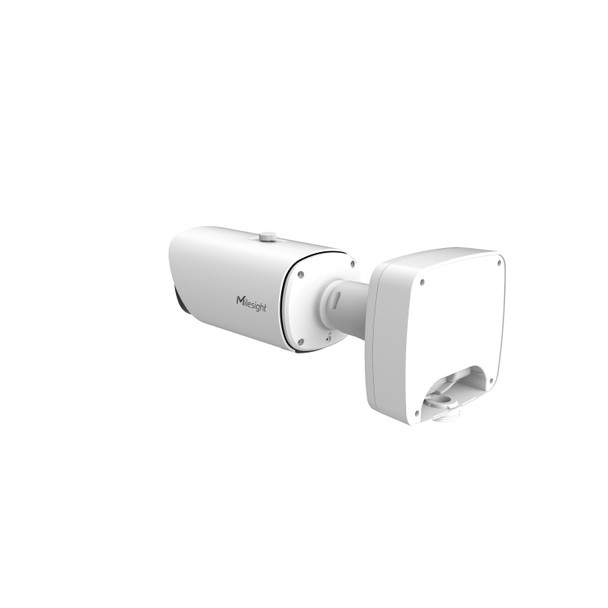

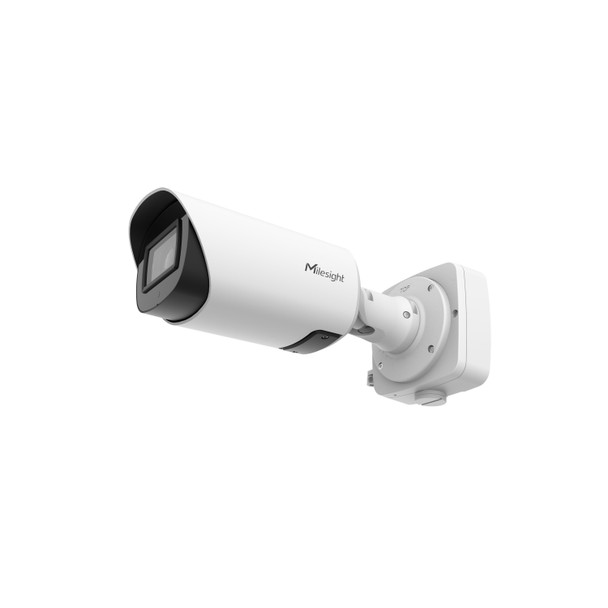

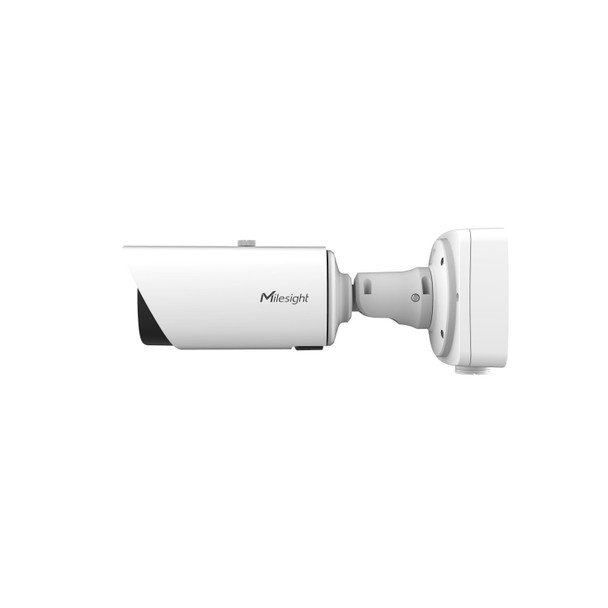

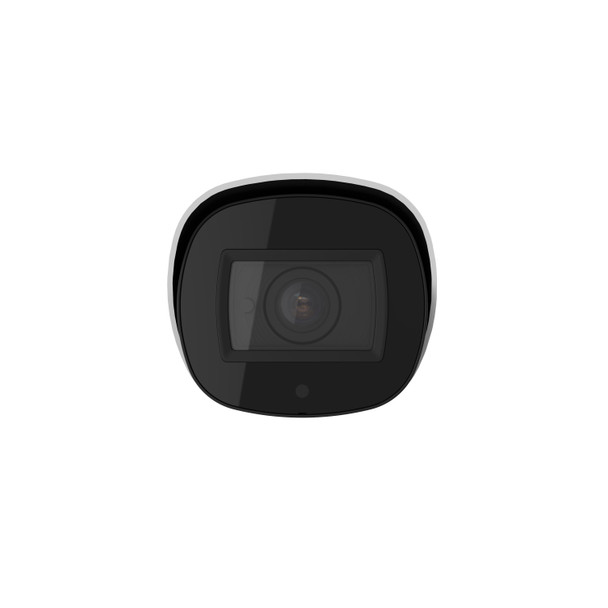

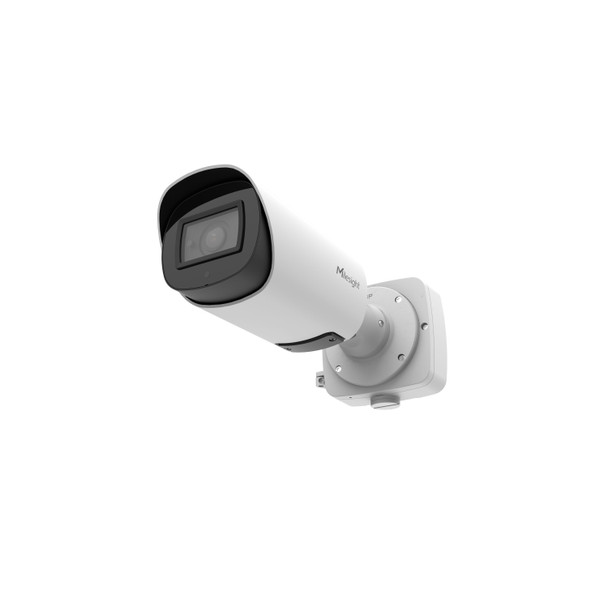

Milesight MS-C2966-RFIPE 2MP AI Pro Plus IR Bullet IP Security Camera

Milesight MS-C2966-RFIPE 2MP AI Motorized Pro Plus IR Bullet IP Security Cameras are a top choice for the most professional surveillance system demands. The units are equipped with high performance video including superior frame rates and video compression selections. Outfitted with motorized P-Iris lens, powerful IR night vision and Super WDR promise absolute image performance and flexible adjustment to all sorts of scenes. The units boast the complete set of pro features including A.I. enhanced detection, ONVIF compliance, on-board edge storage to external device support for sensor, relay, microphone and speaker connections. Additionally, a weatherproof design, vandalproof build including outdoor junction box assure a robust design ready for challenging outdoor applications. Plus, there is plenty more including plug-in free web browser support with rich web user interface and NDAA compliance to name a few more notable facts. Finally, installation is achieved in a fully professional manner thanks to a built-in integrated cable junction box.

Milesight MS-C2966-RFIPE Main Features:

• 1/2.8" 2MP Sensor for 1080p or 1920x1080 @ 60fps
• Special Order 90FPS option Supreme Frame Rate
• Motorized lens: 2.7~13.5mm - P-Iris - HFOV 113° ~ HFOV 33°/ VFOV 83° ~ VFOV 25°
• Powerful IR Night Vision 65m (100m & 7~22mm Lens Special Order)
• Color: 0.005 Lux @F1.4 / B/W: 0 Lux IR ON
• Super Wide Dynamic Range (WDR 140dB)
• A.I. (Artificial Intelligence) Vehicle/Human Detection
• 3-Axis Camera Orientation
• Multi-Web Browser Support
• ONVIF for 3rd Party Security Systems
• Micro SD Card Support
• Audio External I/O device
• Alarm/Relay External I/O device support
• White Housing
• Weatherproof up to IP67 rating
• Vandalproof High Impact Rating
• A62 Junction Box Included
• PoE OR 12VDC Power Support

Milesight MS-C2966-RFIPE Specifications:

2MP NDAA AI Motorized Pro Bullet Plus Network Camera
Image Sensor 1/2.8″ Progressive Scan CMOS
Min. Illumination Color: 0.005 Lux @F1.4, B/W: 0 Lux with IR on
WDR 140dB Super Wide Dynamic Range
Shutter Time: 1/100000s~1s
Day/Night Mode: Day/Night/Auto/Customize/Schedule
IR Distance Up to 65m (3~10.5mm/2.7~13.5mm), up to 100m(7~22mm)
S/N: >55dB
Motorized Lens: 2.7~13.5mm/3.0~10.5mm/7~22mm@F1.4, P-Iris (Optional I models)
Field of View: HFOV 113° ~ HFOV 33°/DFOV 130° ~ D38° /VFOV 60° ~ VFOV 18° (2.7~13.5mm)
HFOV 104° ~ HFOV 34°/DFOV 120° ~ D39° /VFOV 57° ~ VFOV 19° (3~10.5mm Special Order)
HFOV 45° ~ HFOV 17°/DFOV 53° ~ D20° /VFOV 25° ~ VFOV 9° (7~22mm Special Order)
Lens Mount: Φ14
Focus Control: Auto/Manual
Iris Control: P-Iris with Auto/Manual Control
Video Max. Image Resolution 1920x1080
Frame Rates Per Stream:
Main Stream:
60Hz: 60fps@ (1920x1080, 1280x960, 1280x720, 704x576) - (Special ORDER 90fps option)
50Hz: 60fps@ (1920x1080, 1280x960, 1280x720, 704x576) - (Special ORDER 90fps option)
Secondary Stream:
60Hz: 30fps@ (704x576, 640x480, 640x360, 352x288, 320x240)
50Hz: 25fps@ (704x576, 640x480, 640x360, 352x288, 320x240)
Tertiary Stream:
60Hz: 30fps@ (1280x720, 704x576, 640x480, 640x360, 352x288, 320x240)
50Hz: 25fps@ (1280x720, 704x576, 640x480, 640x360, 351x288, 320x240)
Video Compression: H.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate: 16Kbps~16Mbps (CBR/VBR adjustable)
Privacy Masking: Up to 24 areas
ROI: Up to 8 areas
Image Settings: Saturation/Brightness/Contrast/Sharpness
Web Access: Support IE/Firefox/Chrome/Safari Browser
Audio Compressions: G.711/AAC/G.722/G.726
Audio Sampling Rate: 8/16/32/44.1/48KHz
Audio Bit Rate: 16~256kbps
Two-way Audio: Support

Interface
Ethernet: 1*RJ45 10M/100M Ethernet Port
Audio I/O: 1/1 input/output for External Mic/Speaker
Alarm I/O: 1/1 input/output for External Sensor/Relay
Network Storage: NAS (Support NFS, SMB/CIFS), ANR
Network Protocols: IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL

Intelligent Analytics
Video Analysis: Intrusion Detection, Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
Face Detection & Face: Attribute Recognition, Detect and capture faces, get real-time snapshots; The attributes include Age, Gender, Glasses, Mask and Cap; Support Faces Privacy Mode, the detected faces in the face detection area will be mosaic automatically.
Object Counting & Report: Count the number of objects crossing the line, optionally human and vehicle,
Support regional people counting for up to 4 detection areas

System
Storage Support: microSD/SDHC/SDXC Card Local Storage, up to 1TB
Advanced Function: Heat Map, BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP Support: Yes, Voice & Video-over-IP
Event Trigger: Motion Detection, Network Disconnection, Audio Alarm, External Input, etc.
Event Action: FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc.
System Compatibility: ONVIF Profile G & M & S & T, API

General
Working Temperature: -40°~60° C
Working Humidity: 0~90%(Non-condensing)
Power Supply: PoE (802.3af) / DC 12V±10%
Power Consumption: 6W MAX, 8W MAX (With IR on)
Weather Proof: Up to IP67-rated for weather-resistant performance
Housing Vandal-proof IK10-rated metal housing
Surge Protection: 4KV
Dimensions: 301mm X 108mm X 98mm
Weight: 1630g
Warranty: 3 Years (5 Year option)
