Messoa SDF418-HN5 Vandal Proof Dome Security Camera 700TVL

Write a Review
SKU:
SDF418-HN5
  • Messoa SDF418-HN5 WDR Vandal Dome Camera side view

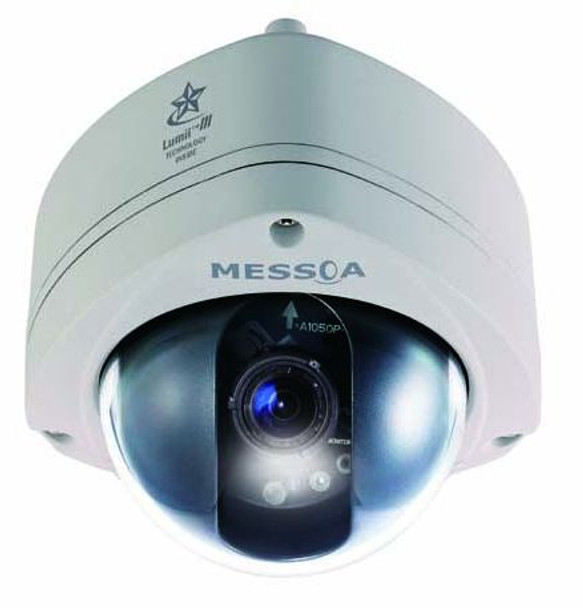

  • Messoa SDF418-HN5 Front View Vandal Proof Dome Security Camera
  • Messoa SDF418-HN5 key features
  • Messoa SDF418-HN5 dome camera dimensions
Contact Us for Replacements

Description

NOTICE: This product has been discontinued or is EOL and therefore in most cases no longer available - Please contact our Experts or search the category link below for related categories.

https://www.a2zsecuritycameras.com/cctv-security-cameras.html

Messoa SDF418-HN5 Vandal Proof Dome Security Camera is a class leading 700TVL high resolution CCTV Vandal Dome Camera for professional Video Surveillance. The Messoa SDF418-HN5 Vandal Dome is built with the latest Sony EXview Super HAD CCD II for superior 700TVL and features a variety of other benefits including Messoa Lumii Technology. Advanced image processing attributes like WDR (Wide Dynamic Range) for high contrast lighting and DNR (Digital Noise Reduction) for low light environment. Attributes like HLC (high Light Compensation) and True Day/Night operation also ensure powerful video surveillance in a range of lighting conditions.

The Messoa SDF418-HN5 Vandal Dome Camera is equipped with a 3 axis camera bracket and 3.7-12mm varifocal lens for flexible installation and adjustment. Further easing installation is support for 12VDC or 24VAC power sources which are most common among CCTV Camera systems. The Messoa Vandal Dome Security Camera also offers a solid construction rated for outdoor use with an IP66 weatherproof rating. Furthermore the Vandal Proof Dome Camera is designed to meet IK10 high impact standards. The Messoa SDF418-HN5 is powerful dome camera full of features and ensured to provide the professional video surveillance desired. The Vandal Dome Camera is also available with optional mounting brackets for a variety of security applications.

Messoa SDF418-HN5 Main Features:

  • Superb 1/3" SONY Exview HAD CCD II
  • Superior 700TVL High Resolution (12-bit Enhanced)
  • 3.7-12mm Varifocal DC Auto Iris Lens
  • WDR - Wide Dynamic Range for applications with high contrast lighting.
  • HLC - High Light Compensation for bright light sources like a torch, headlights, etc.
  • DNR - Digital Noise Reduction for image clarity in Low Light Conditions.
  • Weatherproof IP66 Rated Outdoor ready
  • IK10 Rated Impact Resistant Protection
  • Variety of optional mounts available
  • Dual Voltage 12VDC or 24VAC


Messoa SDF418 Specifications:

Image System
Image Pickup Device 1/3" SONY Exview HAD CCD II
Effective Pixels (HxV) 976 (H) × 494 (V) 976 (H) × 582 (V)
Signal System NTSC PAL
Scanning System 2:1 Interlace V: 59.94 Hz , H: 15.734KHz 2:1 Interlace V: 50 Hz , H: 15.625 KHz
Electric
Sync System Internal/Line lock
Horizontal Resolution 700 TV lines
Built-in Lens f=3.7~12mm, F1.4 DC iris varifocal
View Angle Horizontal:76.9°(wide) ~ 22.7°(tele), Vertical:56.8°(wide) ~ 17.°(tele)
Gamma Correction 0.45
Minimum Illumination F 1.4, 0.03 lux@50 IRE, 0.015 lux@30 IRE
S/N Ratio More than 50dB (AGC off)
Gain Control On / Off (selectable)
White Balance ATW/ Manual/ User/ Push/ Push lock
Electric shutter 1/60 sec 1/50 sec
Flickerless On / Off (selectable)
BLC Off/ BLC/ HLC (high Light Compensation) (selectable)
Day/Night Mode Digital Day/Night
DNR Yes
Motion Detection Yes, 4 areas (max)
Privacy Mask Yes, 8 zones (max)
High Light Compensation Yes
ATR* On / Off (selectable)
OSD Yes
Multi Language English, Japanese, German, France, Russia, Portuguese, Spanish, Simplify Chinese
Video Output 1Vpp composite output, 75 ohm
Power Supply
Power Requirement DC 12V & AC 24V ± 10%
Power Consumption 2.5W Max
Environment
Operating Temperature -10°C ~ 50°C
Operating Humidity 90% MAX
Storage Temperature -20°C ~ 60°C
Storage Humidity 70% MAX
Mechanism
Dimension(WxLxH) 131 x 132 x 112 mm (5.16" x 5.20" x 4.41")
Weight 750g (1.66 lbs.) approx.
Protection IK10 Vandal-resistant, IP66
Ordering information SDF418-HN5 SDF418-HP5
Accessory
L-Type Wall Mount: SAB749-1W
Cable Management Wall Mount: SAB755+SAD712
Pendant Mount: SAB755M+SAD712
