Description
The Hanwha Vision ARN-810S offers robust performance for small-to-midsize IP surveillance systems with support for up to 8 channels of 8MP cameras. With built-in 8-port PoE switch, automatic camera registration, and H.265, H.264, and MJPEG support, it offers an efficient and simplified deployment experience.

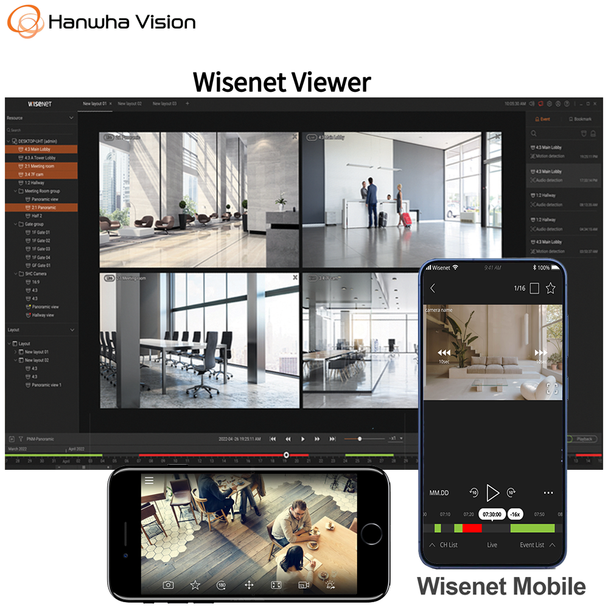

Capable of streaming and recording at up to 60Mbps, it supports real-time video analytics and smart events like motion detection and tampering. The NVR also integrates seamlessly with WAVE, WebViewer, and Wisenet Viewer, with QR-code based P2P for easy remote access.
It offers ARB redundancy, N+1 failover, and various video search modes including smart search and bookmark playback. With support for up to 6TB storage, 4K HDMI output, and compatibility with Wisenet Mobile, the ARN-810S delivers professional-grade performance in a compact form factor.
✨ Key Features:
- 8CH input for up to 8MP IP cameras
- Built-in 8-port PoE switch (10/100Mbps)
- H.265, H.264, MJPEG support
- Up to 60Mbps recording bandwidth
- Local HDMI output with 4K UHD support
- Multi-layout display including fisheye dewarping
- 6TB HDD storage support via 1 SATA bay
- P2P QR code connection for mobile and remote use
- WAVE, SSM, Wisenet Viewer, and WebViewer support
- Security features including TLS encryption, access logs, and TPM firmware
✅ Specifications Summary:
✨ Video & Display:
- Input: Max. 8CH (8MP ~ CIF)
- Local Display: HDMI
- Display Modes: 1/2V/2H/3V/4/6/8/9, Sequence
- HDMI Resolution: 8M@30fps, 1080p@120fps, etc.
✨ Recording & Playback:
- Compression: H.265, H.264, MJPEG
- Max Recording Bandwidth: 60Mbps
- Recording Modes: Normal, Dual Stream, Schedule, Event, Bookmark
- Playback: Max 16CH (4CH local/remote per user)
- Playback Search: Calendar, Event list, Smart Search, Text
⚖️ Storage:
- HDD: 1x SATA (Max 6TB)
- Backup: BU/Exe, JPG/AVI
- Multi-channel Play: Up to 4CH
↔️ Network:
- Protocols: IPv4/6, TCP/IP, RTSP, SNMP, HTTPS, ONVIF (Profile-S), SUNAPI, etc.
- Max Bandwidth: 60Mbps
- DDNS: Hanwha DDNS
- LAN: 8x RJ-45 (PoE 10/100), 1x WAN (1Gbps)
⚡ Audio:
- Input: 8CH (network)
- Codecs: G.711, G.726, AAC
- 2-Way Audio: Supported
⚠️ System / Security:
- OS: Embedded Linux
- Max Users: 4
- Logs: 100,000 (System/Event)
- Encryption: TLS, 802.1x, Signed firmware
✨ Interface & Ports:
- USB: 2x USB 2.0
- HDMI: 1EA (4K)
- Alarm: 1 Out
- Indicators: Power, Record, Network
⚡ Power, Environmental, Mechanical:
- Input: 54VDC / 1.67A
- Consumption: Max 84W
- PoE Budget: 65W
- Temperature: 0–40°C
- Dimensions: 300 x 47 x 208.7 mm
- Weight: 1.05kg
