Dahua OEM NVR4208-8P 8ch Network Video Recorder 8 PoE

Write a Review
Calculated at Checkout
  • Dahua OEM NVR4208-8P Linux NVR 8 channel 8 PoE
  • DMSS Dahua Mobile Surveillance System Viewing Applications

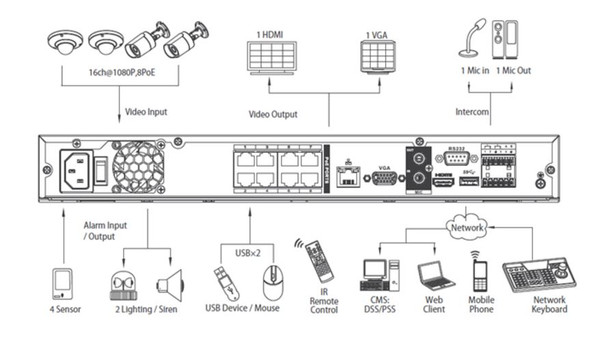

  • Dahua NVR4208-8P NVR rear diagram


Dahua OEM NVR4208-8P 8ch 8 POE Network Video Recorder is a superb NVR for economic yet feature rich IP Surveillance. The device is an example of innovative video security technology in a modernized Linux Recorder for up to 8 IP Cameras at up to 5 Megapixel HD video quality per security camera. This compact form factor 1U NVR delivers a solid foundation for modern IP Security Camera Systems and matches features with performance plus low cost. Local to remote viewing are all well-equipped then add high capacity on-board storage plus built-in 8 Port PoE Network Switch and its obvious why this unit is so popular. Essentially the modern DVR but instead NVR for IP Cameras this Linux recorder works perfectly with Dahua IP Cameras and can also support a wide set of 3rd party brands on a per model basis. Comprehensive Security System management is included in this small form factor NVR such as local HDMI display, remote Mobile Applications and CMS Software are available at no extra cost.

Dahua OEM NVR4208-8P NVR Main Features:

  • Linux Embedded Network Video Recorder
  • 8 channel IP camera Support up to 5 Megapixel Streams
  • Built-in 8 Port PoE 802.3af/802.3at Network Switch
  • 200Mbps bandwidth throughput with H.264 or MJPEG dual codec decoding
  • HDMI/VGA simultaneous HD video output
  • All channel synchronous real-time playback, GRID interface
  • Full Function Web Interface plus PC or MAC supported VMS and CMS Software (DSS/SmartPSS)
  • DMSS Dahua Mobile Viewing Applications are also available for Windows, iPhone, iPad and Android devices
  • 3rd Party IP cameras: Dahua, Arecont, AXIS, Bosch, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek and more
  • ONVIF Compliant plus IT functions like IPv4/IPv6, UPNP, RTSP, DNS, IP Filter, DDNS, FTP, Alarm Server
  • 3D intelligent positioning with Dahua PTZ camera
  • RS-232 Keyboard Joystick Controller interface
  • RS-485 PTZ Control interface
  • On-board Two Way Audio Talk 1ch Input and 1ch Output
  • Supports 2 SATA HDD up to 4TB, 2x USB2.0
  • Power Supply Included: Auto AC 100~240V, 50/60Hz to 48VDC
  • Power Consumption NVR: 60W (without HDD) PoE: Maximum 25.5W per port
  • Temperature Range: -10°C~+55°C / 10%~90%RH / 86~106kpa
  • Dimension (W×D×H) 1U, 375mm × 327mm × 53mm
  • Weight: 4.4lbs. Or 2.5KG (without HDD)

NOTICE: OEM products are original to referenced model except produced without brand labels for re-branding.


Pro Linux NVR System:
Linux Embedded Network Video Recorder Dahua OEM NVR4208-8P delivers the full set of pro security system functions in an high performing, amazingly low cost unit. The device delivers H.264 or MJPEG video recording at up to 5 Megapixel resolution on up to 8 IP Cameras with a throughput capability of 200Mbps total. All sorts of Recording and Detection Options to User Management or Back-up task are all easily achieved as well as capable for maximum user convenience.

Fully Equipped Linux NVR Hardware:
Supporting up to two internal SATA hard drives as well as USB and Network Backup options this recorder covers you storage and storage management needs. The Addition of RS-232 as well as RS485 enable joystick and PTZ control in the traditional manner. Even more the unit features a 1Gbps Ethernet uplink for smooth DATA transmission and of course the innovative built-in 8 Port Power over Ethernet enabled Network Switch. Alarm I/O and Two Way Audio interface on the NVR itself help complete a satisfying selection of integration options.

Last Updated May 2nd, 2016
