Hanwha (Samsung) ARD-810 8ch HD CCTV Digital Video Recorder

Write a Review
SKU:
ARD-810
  • Hanwha (FKA Samsung) ARD-810 8ch HD CCTV + 2ch IP Hybrid Digital Video Recorder - DVR - Front View

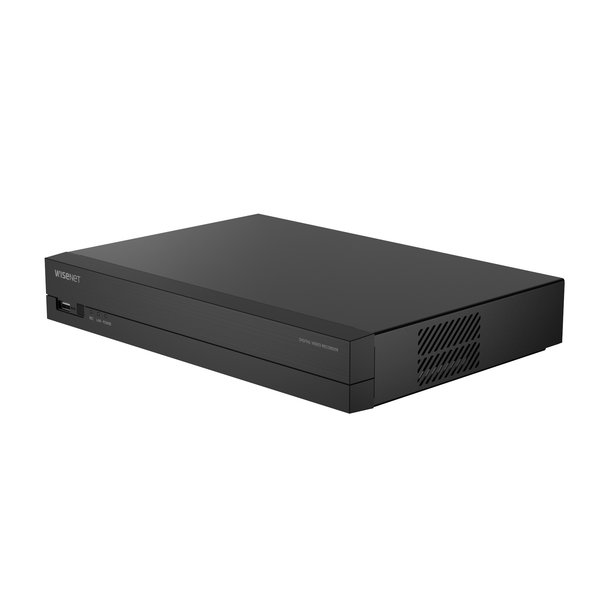

  • Hanwha (FKA Samsung) ARD-810 8ch HD CCTV + 2ch IP Hybrid Digital Video Recorder - DVR - Side view
  • Hanwha (FKA Samsung) ARD-810 8ch HD CCTV + 2ch IP Hybrid Digital Video Recorder - DVR - Side view 2

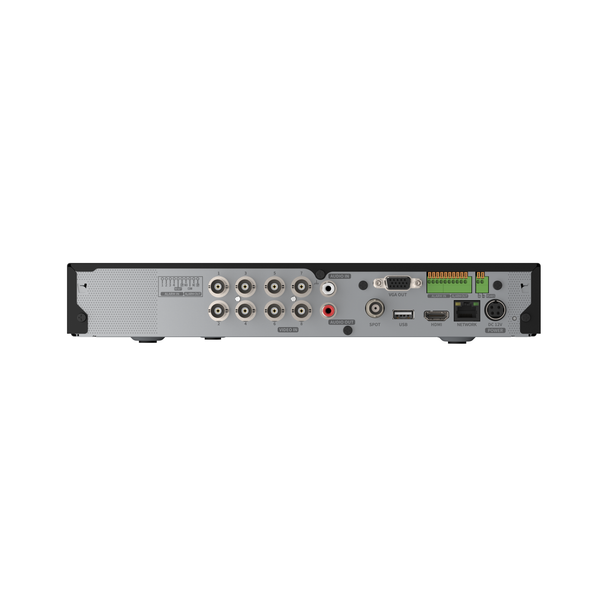

  • Hanwha (FKA Samsung) ARD-810 8ch HD CCTV + 2ch IP Hybrid Digital Video Recorder - DVR - rear panel view
Contact us to Configure & Price

Description

Hanwha (FKA Samsung) ARD-810 8ch HD CCTV Hybrid Digital Video Recorder is superb choice for professional, modern CCTV video security at a great cost. The Hanwha ARD-810 8ch Linux DVR is a purpose-built recorder from a world leading factory that has been a pioneer in the industry for decades. The ARD-810 supports easy integration for both traditional analog as well as the new HD CCTV formats (TVI, CVI, AHD) in any combination up to a total of 8 channels. The additional support of two more IP channels for a total of 10 cameras further promises a flexible recording system that is easily adaptable for new or existing security camera system projects.

The Hanwha ARD-810 8 channel DVR (10ch w/2ch IP) provides rich local integration as well as easy remote operation. Along with quality design, excellent performance and affordable cost the Hanwha A-series DVRs promise professional surveillance is achievable for the widest range of applications. Supporting an intuitive local GUI with HD monitor support and even traditional connectivity to a spot monitor the DVR grants diverse interface options. Those like RS-485 terminal for PTZ controls, USB ports to I/O Alarm terminal and I/O Audio connectors are all on-board too. Even more, remote monitoring and operation has never been easier thanks to new Q-Code setup featuring easy P2P (Peer-2-Peer) network connectivity that in most cases requires no extra network configurations for off-site viewing. Furthermore, Hanwha's Wisenet Viewer Software and Wisenet Mobile Apps grant a full solution for pro-grade security camera system management.

Hanwha ARD-810 DVR Product Summary:
Hanwha A-Series 8CH DVR, AHD / TVI / CVI up to 5MP Half, CVBS (NTSC/Pal), Max. Analog 8CH + NW 2CH(2MP), 12/12fps@5MP(Half), 15/12fps@4MP(Half), 15/12fps@2MP recording, H.265/H.264/MJPEG, Recording Bandwidth Max. 40Mbps. 1CH audio input/ 1CH audio output, 4 alarm input and 1 relay output, coaxial control, HDMI/VGA video output, 1 x spot monitor output, QR code, up to one 6TB SATA HDD (Max. 6TB).

Hanwha ARD-810 Feature Summary:

  • 5-in-1 8-Channel Pentabrid DVR
  • AHD/HDTVI/HDCVI/CVBS/IP inputs
  • Total 10-Channels available (8-Channel Analog Maximum + 2 additional Channel Network, Network Maximum 10 Channel supported, depending on number of analog channels), up to 5MP. 1 IP channel can be utilized for each analog channel not being used.
  • H.265, H.264, MJPEG codec
  • 12fps@5MP (Half resolution recording), 15fps@4MP (Half resolution recording), 15fps@2MP recording
  • Recording Bandwidth Max. 40Mbps
  • 4 alarm input and 1 relay output, coaxial control
  • Up to 1 SATA HDD (6TB/HDD)
  • HDMI/VGA Dual monitor output, 1x spot monitor output
  • P2P service (QR code connect) for easy mobile app connection
  • NDAA & FCC Compliant
