Geovision GV-LX4C3V GV-COMPACT 4ch Mobile DVR V3 120fps D1/1 Bay

Write a Review
  • Geovision GV-LX4C3V GV-COMPACT 4 channel Mobile DVR V3

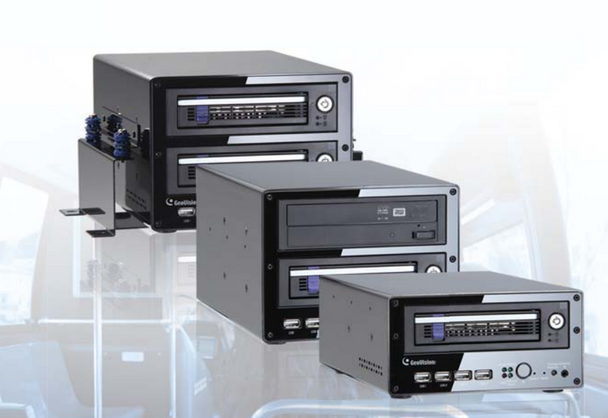

  • Geovision GV-LX4C3V GV-COMPACT DVR V3 Series Preview

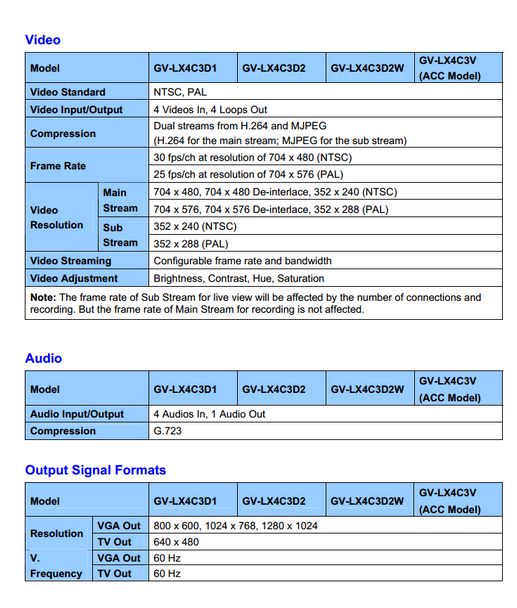

  • Geovision GV-LX4C3V GV-COMPACT 4 Channel DVR V3 Specifications PG 1

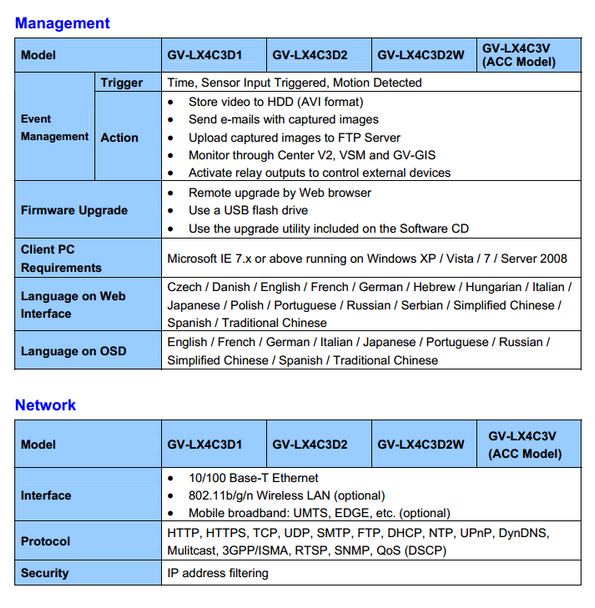

  • Geovision GV-LX4C3V GV-COMPACT 4 Channel DVR V3 Specifications PG 2
  • Geovision GV-LX4C3V GV-COMPACT 4 Channel DVR V3 Specifications PG 3

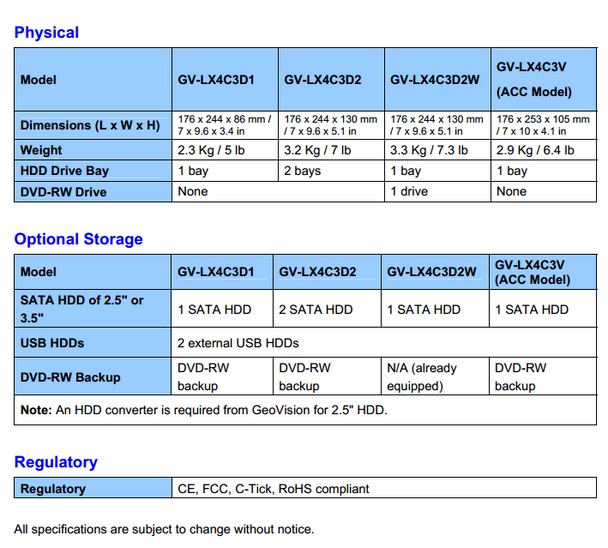

  • Geovision GV-LX4C3V GV-COMPACT 4 Channel DVR V3 Specifications PG 4
No Longer Available - Contact Us


Geovision GV-LX4C3V GV-COMPACT DVR V3 series is the 4 channel Mobile DVR version of the latest Geovision compact Digital Video Recorder series. The system is equipped for tough transportation surveillance systems requirements and is ideal for vehicles, cars, buses, trains, planes and boats. Geovision GV-LX4C3V Mobile DVR offers real-time 4CIF (D1) high resolution video recording and includes the latest H.264 compression methods. The solution is built for CCTV security camera systems in a mobile environment and provides a full range of professional local and remote monitoring abilities.

The Geovision GV-LX4C3V GV-COMPACT DVR V3 is a super small form factor Digital Video Recorder enhanced with all the traditional functions of a modern DVR system. Included are interface support for RS-485 PTZ camera control, I/O communications to Two Way Audio. Also integrated is the removable hard drive bay offering convenient storage and back-up options. Furthermore USB ports, IR remote control plus Local Monitor output make localized CCTV video security and surveillance easy to achieve. The Mobile DVR is built rugged with anti-shock and vibration resistance including mobile mount featuring vibration absorbers.

From a remote monitoring perspective the Geovision GV-LX4C3V 4 channel Mobile DVR couldn't be better. The units GPS option allows real-time mapping of DVR system locations and a wealth of Geovision Surveillance Software is supported for maximum flexibility. The solution allows web browser support, remote client software and CMS support alongside other Geovision Security systems. The Digital Video Recorder also allows mobile viewing for the ultimate in convenience and control, image utilizing the PTZ Camera on your car, truck or SUV while outside the vehicle or even across the country. Geovision Mobile DVR systems are one of the top choices for transportation and transit video security.

Geovision GV-LX4C3V Main Features:

  • Geovision Compact 4 channel, 1 Bay Mobile DVR
  • 4 channel D1 High Resolution Recording in Real-time 120fps
  • H.264/MJPEG Video Compression with dual Streaming
  • Simultaneous Display output to VGA, TV and Spot Monitor
  • Supports 3.5" or 2.5" SATA Hard Drives (2.5 requires adapter)
  • Supports External Mass USB Storage and optional DVD-RW Back-up
  • Intelligent Record Modes and Video Management with Multi-language support
  • Easy back-up Solutions to Removable Hard Drive Bays
  • USB Interface, I/O Connections, RS-485 PTZ Camera Communication
  • Diverse Remote Monitoring abilities including Web Browser, Client Software to CMS platforms
  • Complete Mobile Viewing with Android, IPhone, IPad, Blackberry and more
  • Smart functions for Detection, Event Trigger and Event Notifications or Actions
  • Optional DVD-RW Backup
  • Optional GPS Module provide Tracking, Speed overlay, event alarms, real-time mapping GV=GIS
  • Mobile Version Includes AAC Audio
  • Includes Specialized Mobile Mounting bracket with anti-shock and vibrations absorbers
  • Operation Temperature: -20 ~ 50 °C / 4 ~ 122 °F | Humidity: 5 ~ 85% RH (non-condensing)
  • Power Input: 12VDC 5A (60 W Max.)
