Geovision GV-LX4C3D1 GV-COMPACT DVR V3 4ch 120fps D1/1 HDD bay

Write a Review
  • Geovision GV-LX4C3D1 GV-COMPACT DVR V3 4 channel 1 HDD bay
  • Geovision GV-LX4C3D1 GV-COMPACT DVR V3 Series Preview

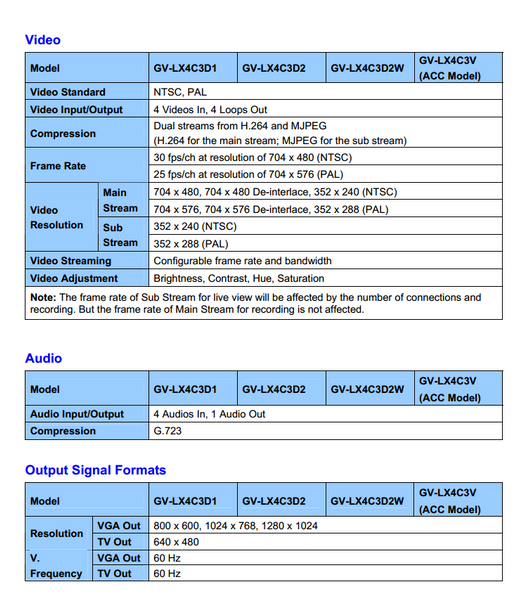

  • Geovision GV-LX4C3D1 DVR SPEC PG 1
  • Geovision GV-LX4C3D1 DVR SPEC PG 2
  • Geovision GV-LX4C3D1 DVR SPEC PG 3
  • Geovision GV-LX4C3D1 DVR SPEC PG 4
No Longer Available - Contact Us


Geovision GV-COMPACT DVR V3 GV-LX4C3D1 is the next generation of small form factor Digital Video Recorders from Geovision. These tested and proven units provide a full featured Geovision Digital Surveillance System in an all-in-one ultra-low profile design. Features D1 or 4CIF high resolution video recording in real-time 30fps per channel the units offer quality solutions for CCTV or Analog security cameras. The Geovision GV-LX4C3D1 GV-COMPACT DVR is the smallest of the series featuring a single (1) SATA hard drive bay. These units are built for CCTV video surveillance systems only. However they do offer otherwise a full range of the Geovision software and hardware advantages.

Geovision GV-LX4C3D1 4ch GV-COMPACT DVR V3 is the perfect solution for all types of applications from home security systems to small business and retail. These Geovision DVR systems include 4 channel audio input plus one output for Two Way Audio as well as I/O alarm sensor inputs and relay outputs for easy device integration. The DVR unit also provides two USB ports which further support external storage and DVD-RW add-on is an option. Support for PTZ Cameras with RS-485 Control enables full system abilities including easy on-screen Pan/Tilt/Zoom.

Geovision GV-LX4C3D1 is a professional grade 4 channel Digital Video Recorder and includes superior Geovision remote viewing abilities. Support for Web Browser, Multi-view Client Software, CMS to mobile devices is all achievable. The local viewing is also covered with support for options like IR remote, mouse and SXVGA monitor output. Consider the Geovision GV-COMPACT DVR V3 the next best thing to having a full scale Geovision PC DVR for your security camera system.

Geovision GV-LX4C3D1 Main Features:

  • Geovision Compact 4 channel, 1 Bay Mobile DVR
  • 4 channel D1 High Resolution Recording in Real-time 120fps
  • H.264/MJPEG Video Compression with dual Streaming
  • Simultaneous Display output to VGA, TV and Spot Monitor
  • Supports 3.5" or 2.5" SATA Hard Drives (2.5 requires adapter)
  • Supports External Mass USB Storage and optional DVD-RW Back-up
  • Intelligent Record Modes and Video Management with Multi-language support
  • Easy back-up Solutions to Removable Hard Drive Bays
  • USB Interface, I/O Connections, RS-485 PTZ Camera Communication
  • Diverse Remote Monitoring abilities including Web Browser, Client Software to CMS platforms
  • Complete Mobile Viewing with Android, IPhone, IPad, Blackberry and more
  • Smart functions for Detection, Event Trigger and Event Notifications or Actions
  • Operation Temperature: -20 ~ 50 °C / 4 ~ 122 °F | Humidity: 5 ~ 85% RH (non-condensing)
  • Power Input: 12VDC 5A (60 W Max.)
