Geovision GV-LX4C3D2 GV-COMPACT DVR V3 4ch 120fps D1/2 Bay

Write a Review
$20.00 (Fixed Shipping Cost)
  • Geovision GV-LX4C3D2 GV-COMPACT DVR V3 4ch 2 Bay

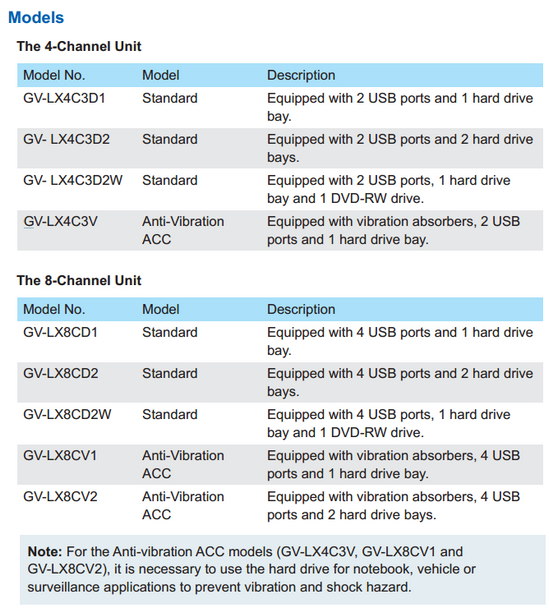

  • Geovision GV-LX4C3D2 GV-COMPACT DVR V3  Series Preview
  • Geovision GV-LX4C3D2 DVR V3 4 Channel SPEC PAGE 1
  • Geovision GV-LX4C3D2 DVR V3 4 Channel SPEC PAGE 2

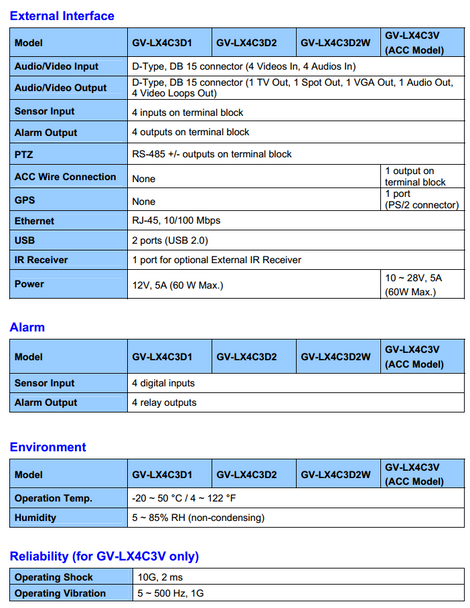

  • Geovision GV-LX4C3D2 DVR V3 4 Channel SPEC PAGE 3
  • Geovision GV-LX4C3D2 DVR V3 4 Channel SPEC PAGE 4
No Longer Available - Contact Us


Geovision GV-LX4C3D2 GV-Compact DVR V3 is the next generation of the compact 4 channel Digital Video Recorder series. This unit enables real-time 30fps per channel D1 video surveillance and utilizes the latest in H.264 compression with intelligent networking for powerful CCTV video security systems. This DVR model includes two SATA Hard Drive Bays for extended storage range or optional DVD-RW. The unit is an analog security camera system video recorder however it otherwise includes nearly all the advantages of a full scale Geovision DVR System.

The Geovision GV-COMPACT DVR V3 is an effective solution for projects ranging from home security systems to retail, business and more. The units are loaded with all the professional characteristics of a Linux DVR such as integrated Two Way Audio with 4 input/1 output or the I/O communications for alarm sensors and relays. The unit also provides RS-485 interface for PTZ Camera support including on-screen Pan/Tilt/Zoom controls. The unit is also provided with USB ports serving mouse to external hard drive support.

Geovision GV-LX4C3D2 GV-Compact DVR V3 is a superb choice for CCTV Camera systems requiring a small form factor Digital Video Recorder packed with the most advanced remote monitoring solutions. The unit is built for CCTV security cameras only, yet it otherwise provides maximum versatility including the full range of Geovision Surveillance Software. Remote Viewing via CMS, Web Browser, Client Software and mobile devices is all possible. Locally output for the SXVGA monitor to convenient IR Remote make video surveillance systems that are easy to use and effective.

Geovision GV-LX4C3D2 Main Features:

  • Geovision Compact 4 channel, 2 Bay Mobile DVR
  • 4 channel D1 High Resolution Recording in Real-time 120fps
  • H.264/MJPEG Video Compression with dual Streaming
  • Simultaneous Display output to VGA, TV and Spot Monitor
  • Supports 3.5" or 2.5" SATA Hard Drives (2.5 requires adapter)
  • Supports External Mass USB Storage and optional DVD-RW Back-up
  • Intelligent Record Modes and Video Management with Multi-language support
  • Easy back-up Solutions to Removable Hard Drive Bays
  • USB Interface, I/O Connections, RS-485 PTZ Camera Communication
  • Diverse Remote Monitoring abilities including Web Browser, Client Software to CMS platforms
  • Complete Mobile Viewing with Android, IPhone, IPad, Blackberry and more
  • Smart functions for Detection, Event Trigger and Event Notifications or Actions
  • Operation Temperature: -20 ~ 50 °C / 4 ~ 122 °F | Humidity: 5 ~ 85% RH (non-condensing)
  • Power Input: 12VDC 5A (60 W Max.)
