Geovision GV-FE3403 3MP WDR IR Fisheye IP Camera

  • Geovision GV-FE3403 3 MegaPixel IR Fisheye IP Camera
  • Geovision GV-FE3403 3MP WDR IR Fisheye IP Security Camera
  • Geovision GV-FE3403 IR Fisheye IP Camera Functions diagram

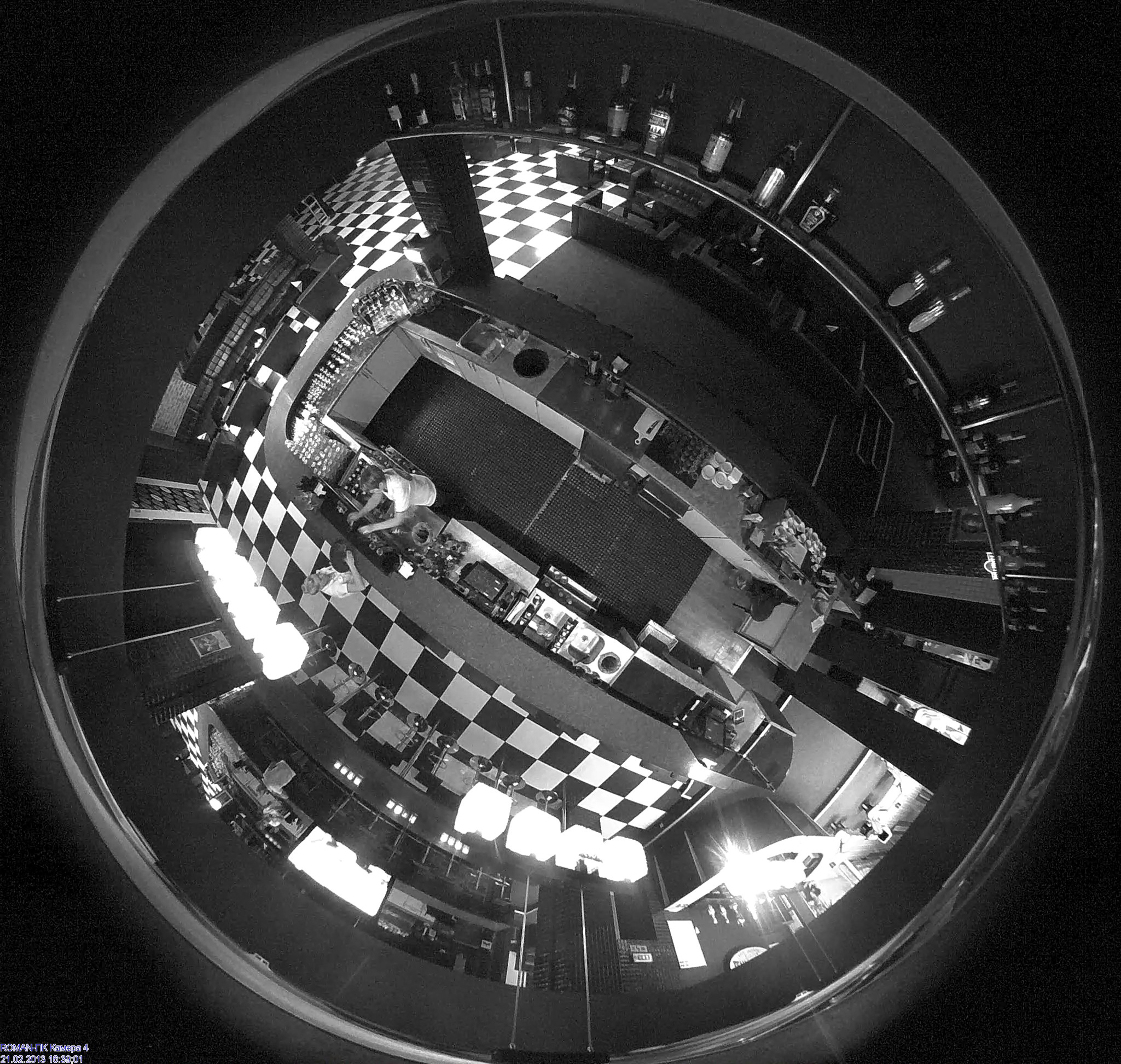

  • Fisheye Source image Sample
  • Geovision Fisheye Tilting Wall Mount
  • Geovision Fisheye Wall Mount Bracket
  • Geovision Fisheye Electrical Power Box Adapter
  • Geovision Pendant Wall Mount Bracket

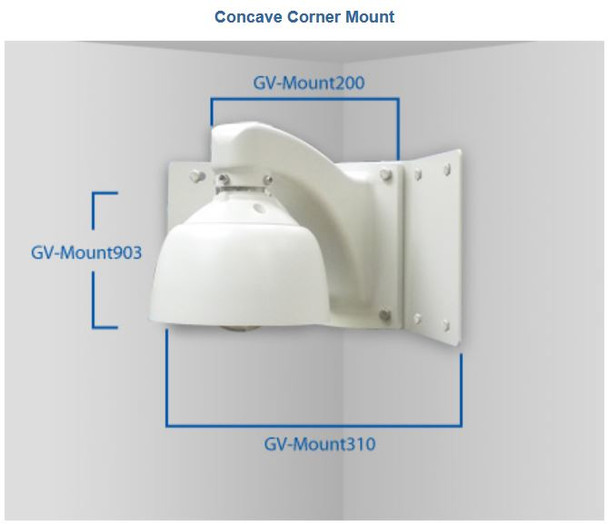

  • Geovision Pendant Wall Mount Bracket with Concave Wall Mount Adapter
  • Geovision Pendant Wall Mount Bracket with Convex Wall Mount Adapter

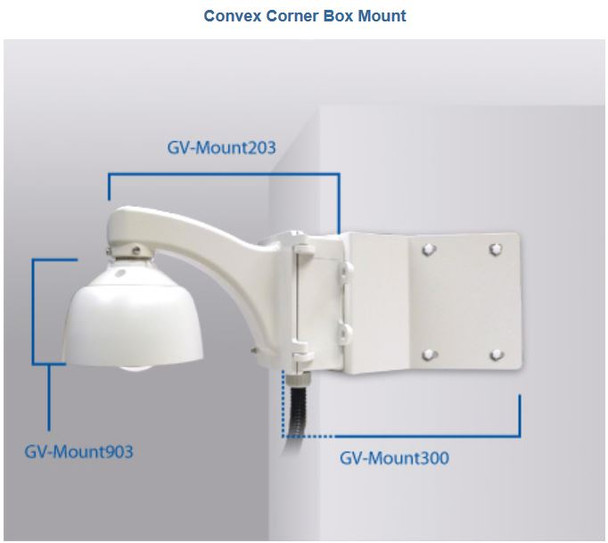

  • Geovision Pendant Wall Mount Bracket with Convex Wall Mount Adapter and Back Box
  • Geovision Pendant Wall Mount Bracket with Pole Mount Adapter
  • Geovision Pendant Wall Mount Bracket with Pole Mount Adapter and Back Box

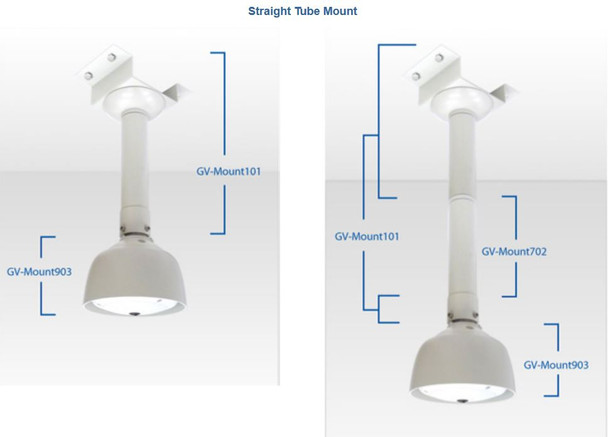

  • Geovision Pendant Straight Tube Mount
  • Geovision Pendant Straight Tube Mount with Back Box
Calculated at checkout

Product Description

Geovision GV-FE3403 3MP WDR IR Fisheye IP Cameras are a new breed of 360 degree, High Definition surveillance system solutions. These units incorporate a powerful CMOS sensor delivering up to 3 Megapixel resolution in real-motion and features the latest H.264 compression methods. Adding to its superior performance is a mechanical IR cut-filter and IR LED ring for absolute night vision. Numerous other Imaging benefits are included from WDR Pro to Digital Noise Reduction. In-depth camera configurations for video settings to network protocol or security operations are all easily achieved. Built for indoor applications the units mount on a wall or ceiling and include both surface and recessed mounting cases. Even more these innovative units offer WiFi wireless communications to local video storage in high capacity. ONVIF complaint they are also provided with the Geovision GV-NVR software FREE of charge for all types of security system needs.


Geovision GV-FE3403 Main Features:

  • 1/3.2" progressive scan CMOS
  • Single stream from H.264 and MJPEG
  • Real-motion 15fps at (2048 x 1536) 3 Megapixel HD
  • Day/Night (w/mechanical IR-cut filter)
  • IR ring for 360° Infrared Night Vision 10 meters (32.81 ft.)
  • Mini USB slot for GV-WiFi Adapter or USB hard drive (up to 2TB)
  • Micro SD card slot (SD/SDHC) for on-board video storage
  • Complete 360° and 180° panorama surveillance
  • Live Viewing or Playback from any viewing angle and zoom level
  • Two-way audio, integrated microphone and speaker
  • WDR Pro (Wide Dynamic Range Pro), 2DNR (Digital Noise Reduction) and Defog
  • Digital Object Tracking, Virtual PTZ function, Auto Pan Function
  • Tampering alarm, Privacy mask, Visual automation, Text overlay
  • Web interface w/31 language support
  • ONVIF (Profile S) Support
  • 0 °C ~ 50 °C (32 °F ~ 122 °F)
  • Power Inputs: 12VDC, 24VAC, PoE (IEEE 802.3af) or PoE+ (IEEE 802.3 at) with PoE Converter
  • IR LED ring: 12VDC (direct or from PoE Converter with PoE+)
  • Size: Hard-Ceiling Mount (w/IR Ring): Ø 175 x 48.36 mm (6.89” x 1.93”)
  • Weight 870 grams (1.92 lbs.) w/PoE Converter 1.045 kg (2.3 lbs.)


Complete 360 Fisheye HD Surveillance, All the time:
Geovision GV-FE3403 3 Megapixel IR Fisheye IP Camera is a long awaited, full featured 360 degree/Panoramic Security Camera. Built on a 3MP HD CMOS image sensor yielding up to 15fps of real-motion video, these units combine True Day/Night operation (ICR) with advancements like DNR (Digital Noise Reduction) or WDR (Wide Dynamic Range) to ensure optimal video capture in all lighting. The integrated Infrared (IR) LED illumination further assures absolute video security even in zero light. In-depth image settings, H.264 or MJPEG video streaming to integrated Two Way Audio with on-board speaker and microphone make total 360 degree IP Surveillance easy.


Intelligent Features and Functions:
Every aspect of the Geovision GV-FE3403 IR Fisheye security camera points to a professional IP camera. Beyond its comprehensive video coverage and superb video performance, this Geovision Fisheye IP camera includes a wide range of security system features to support for numerous IT network protocol standards. The device is capable of providing a complete IP security camera system on its own, with built-in detection methods, local recording to viewing, playback and video export. The web interface is well developed, easily learned plus operated, yet feature packed for a generous amount of functions within the camera alone. Exceptional performance is met with more than just the common capabilities, users can expect the best and find it. Attributes like optional WiFi communications and high capacity local storage via USB hard drive make this device not only a best in class, but a truly market leading Fisheye IP camera.


Smart Design, Sleek Construction:
The Geovision GV-FE3403 360 IR Fisheye IP Camera both internally and externally are well designed for a vast amount of possible installations. Qualities like ONVIF compliance help ensure third party integration while options like Geovision's GV-NVR software is also provided FREE with the purchase of the security camera. Pro IP Surveillance depends on equipment flexibility and such characteristics are frequently found in this product, like triple power input support for 12VDC, 24VAC or PoE (Power over Ethernet). Likewise included is both a surface or recessed (a.k.a. in-ceiling) case mount plus a variety of optional mounting accessories like pendant or wall mounts, tilting wall mounts, dome covers and electrical box adapters are all available. The list literally goes on and on, SD Card Recording, Multi-language support to full function PTZ modes like Object Tracking, Auto Pan, or Virtual PTZ. Overall a great device for indoor IP surveillance system requirements.


Included in the box:

1. GV-Fisheye Camera
2. Support Bracket x 3
3. Camera Cover (Hard Ceiling Mount)
4. Camera Cover (In-Ceiling Mount)
5. Screw (Hard Ceiling Mount) x 3
6. Screw (In-Ceiling Mount) x 3
7. Torx Wrench
8. Plastic Screw Anchor x 3
9. Mini USB Extension Cable
10. IR LED Ring
11. PoE Converter set (Module, DC Power Y-Cable, RJ-45 Cable, and PoE Screw x 3)
12. Installation Sticker
13. GV-IPCAM H.264 Software DVD
14. GV-Fisheye IP Dome Hardware Installation Guide
15. GV-NVR Software DVD
16. GV-NVR Quick Start Guide
