Bosch NIN-932-V03IP FlexiDome Vandal HDR 1080P HD IP Dome Camera IVA

Write a Review
SKU:
NIN-932-V03IP
Shipping:
Calculated at Checkout
  • Bosch NIN-932-V03IP FlexiDome HD HDR 1080P Vandal-Resistant IP Dome Camera plus IVA
  • Bosch NIN-932-V03IP Key Features
  • Bosch NIN-932-V03IP IVA (Intelligent Video Analysis) Edge-based Video Analytics
  • Bosch NIN-932-V03IP 3 Axis Camera rotation

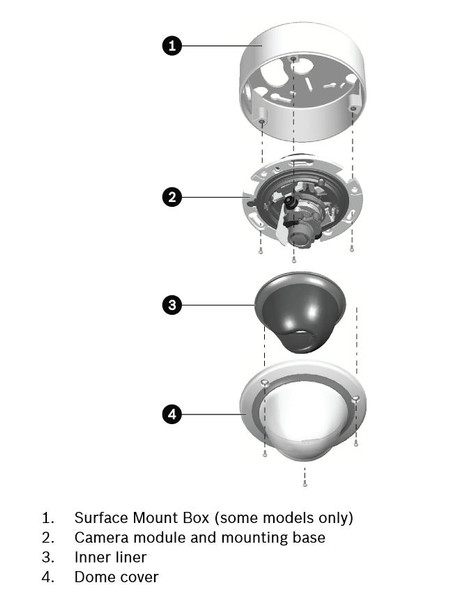

  • Bosch NIN-932-V03IP part assembly

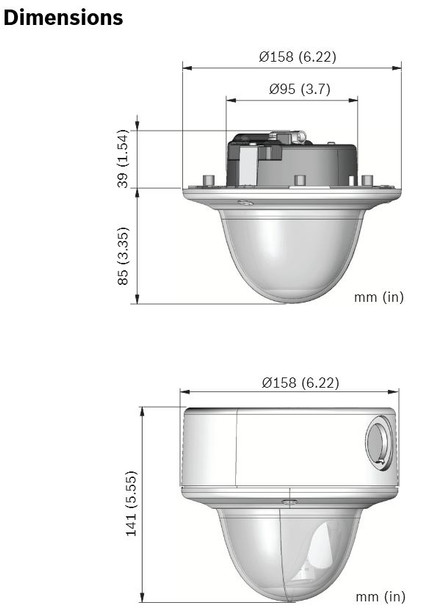

  • Bosch NIN-932-V03IP dimensions

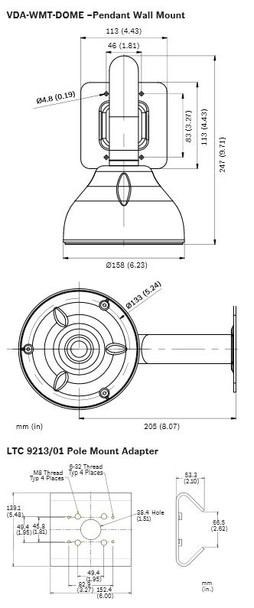

  • Bosch NIN-932-V03IP optional mounts 1
  • Bosch NIN-932-V03IP optional mounts 2
$1,170.00

Description

Bosch NIN-932-V03IP FlexiDome HD IP Dome Security Camera is an innovative, full featured Vandal proof FlexiDome IP Camera with Bosch IVA and HDR. The Bosch FlexiDome Vandal Resistant HD IP Camera NIN-932-V03IP produces real-time (30fps) 10180P High Definition video surveillance with True Day/Night and Bosch HDR (High Dynamic Range) for clear imaging in adverse lighting. The Bosch FlexiDome HD also takes advantage of C-BIT (Content-based Image Technology) for automatic enhancement of total image and specific image areas lacking adequate clarity. The device is equipped with an IR Cut-filter for True Day/Night function, includes Intelligent Dynamic Noise Reduction(iDNR) and a diverse range of selectable video settings for perfect adaptation to any scene. The Bosch FlexiDome HD 1080P Vandal-Resistant Dome Camera HDR is provided with either a 3-9mm or 10-23mm Automatic Varifocal Lens which features motorized zoom and focus adjustment with setup wizard for absolute perfect IP surveillance every time.
The NIN-932-V03IP Vandal Proof Bosch FlexiDome is designed for superior product performance, the unit includes a heavy duty IK10 High Impact Resistant rating and is IP66 weatherproof with a sleek and compact design perfect for indoor or outdoor applications. The unit supports flexible installation with triple axis, internal camera adjustment and various mounting accessories for integration into any security camera system requirement. An assortment of professional attributes are included in the FlexiDome series including external device connections, flexible power inputs and the cameras include six preset optimal image setting modes for quick setup. The unit provides multi-streaming with H.264 and MJPEG video codecs plus quality AAC Audio codec support for the best surveillance quality. Embedded with Bosch IVA these Cameras deliver Intelligent Video Analysis with multiple video analytic functions for edge-based detection of the highest levels. The on-board MicroSD memory card slot allows high capacity local recording for up to 2TB MicroSDXC cards. Thus the Bosch FlexiDome HD Dome Security Cameras with IVA provide a powerful solution capable of operating completely on its own as an all in one IP Security Camera System or via ONVIF as part of other third party systems.

Bosch NIN-932-V03IP Main Features:

  • 1080P HD (High Definition) IP Video Surveillance
  • Intelligent C-BIT Image Enhancement (Content-Based Image Technology)
  • Real-time 30fps Multi-streaming of H.264 and MJPEG compression methods.
  • True Day/Night with SensUP and Intelligent Dynamic Noise Reduction (iDNR).
  • HDR (High Dynamic Range) for adverse lighting conditions.
  • IVA Intelligent Video Analysis) Embedded Edge-based Video Analytic Suite (IVA Motion+ model optional)
  • 3-9mm or 10-23mm Automatic Varifocal Lens (features motorized zoom and focus adjustment)
  • Lens Supports Automatic motorized back focus with pixel mapping
  • Vandal Proof High Impact IK10 Tamper Resistant design.
  • Weatherproof IP66 Outdoor Ready.
  • Variety of Mounting options and accessories.
  • On-Board Memory Card Slot for local Recording.
  • ONVIF Compliant for integration with third party IP Camera Systems.
  • Flexible power input with 12VDC, 24VAC or PoE (power over Ethernet) support.


Bosch NIN-932-V03IP Technical specifications:

Electrical
Power Supply
24 VAC 50/60 Hz
12 VDC
Power-over-Ethernet 48 VDC nominal
Current Consumption
600 mA (12 VDC)
500 mA (24 VAC)
175 mA (PoE 48 VDC)
Power Consumption
7.2 W
Sensor
Type
1/3-inch CMOS HD
Active Pixels
1920 x 1080
Video streams
Video compression
H.264 (ISO/IEC 14496-10); M-JPEG, JPEG
Streaming
Multiple individually configurable
streams in H.264 and M-JPEG,
configurable frame rate and bandwidth.
Overall IP Delay
Min. 120 ms, Max. 240 m
GOP structure
IP, IBP, IBBP
Encoding interval
1 to 30 (25) ips
Resolutions (H x V)
• 1080p HD
1920 x 1080
• 960p HD 4:3
(cropped)
1280 x 960
• 720p HD
1280 x 720
• D1 4:3 (cropped)
704 x 480
• SD upright
(cropped)
400 x 720
• 480p SD
Encoding: 704 x 480;
Displayed: 854 x 480
• 432p SD
768 x 432
• 288p SD
512 x 288
• 240p SD
Encoding: 352 x 240;
Displayed: 432 x 240
• 144p SD
256 x 144
Sensitivity
(3200 K, scene reflectivity 89%, 30 IRE)
Lens 3 - 9 mm (F1.2)
• Color
0.25 lx (0.025 fc)
• Monochrome
0.08 lx (0.008 fc)
Lens 10 - 23 mm (F1.6)
• Color
0.45 lx (0.045 fc)
• Monochrome
0.15 lx (0.015 fc)
Day/Night
Color, Mono, Auto
White Balance
ATW (2500 to 10000K), ATW hold and manual
Indoor and Outdoor ATW
Shutter
Automatic Electronic Shutter (AES)
Fixed (1/30 [1/25] to 1/150000)
selectable
Default shutter
Backlight compensation
Off/Auto/IntelligentAE
Wide dynamic range
On/off
Noise reduction
Intelligent Dynamic Noise Reduction
(iDNR) with separate temporal and spatial adjustments
Contrast enhancement
On/off
Sharpness
Sharpness enhancement level selectable
Dynamic Range
90 dB typical
Privacy Masking
Four independent areas, fully
programmable
Video Motion Analysis
Intelligent Video Analysis (IVA MODEL)
Audio
Standard
AAC
G.711, 8kHz sampling rate
L16, 16kHz sampling rate
Signal-to-noise ratio
> 50 dB
Audio Streaming
Full duplex / half duplex
Input/output
Analog Video out
CVBS (PAL/NTSC), 1 Vpp, BNC, 75 Ohm
Analog Video out
(service only)
CVBS (PAL/NTSC), 1 Vpp, 2.5 mm jack, 75 Ohm (non-protected)
Audio
1 x mono line in, 1 x mono line out
• signal line in
12 kOhm typical, 1 Vrms max
• signal line out
1 Vrms at 1.5 kOhm typical,
Alarm
2 inputs
• activation
voltage
+5 VDC to +40 VDC
(+3.3 VDC with DC-coupled 22 kOhm pull-up resistor)
Relay
1 output
• voltage
30 VAC or +40 VDC Max.
Maximum 0.5 A continuous, 10VA
Local Storage
Memory card slot
Supports SDHC and SDXC MicroSD cards
Recording
Continuous recording, ring recording.
alarm/events/schedule recording
Software Control
Unit Configuration
Via web browser or Configuration Manager
Software update
Flash ROM, remote programmable
Network
Protocols
IPv4, IPv6, UDP, TCP, HTTP, HTTPS, RTP, IGMP V2/V3, ICMP, RTSP, FTP, Telnet, ARP, DHCP, SNTP, SNMP (V1, MIB-II), 802.1x, SMTP, iSCSI, UPnP (SSDP)
Encryption
TLS 1.0, SSL, AES (optional)
Ethernet
STP, 10/100 Base-T, auto-sensing, half/
full duplex, RJ45
PoE supply
IEEE 802.3at Type-2 compliant
Connectivity
ONVIF Profile S
Auto-MDIX
Optical
Lens
3 to 9 mm Automatic Varifocal (AVF) SR lens
- or –
10 to 23 mm Automatic Varifocal (AVF) SR lens
Adjustment
Motorized zoom/focus
Iris control
Automatic iris control
Viewing angle (3-9mm)
Wide: 83º x 45º (H x V)
Tele: 28º x 15º (H x V )
Viewing angle (10-23mm)
Wide: 24º x 13º (H x V)
Tele: 10.9º x 6º (H x V )
Mechanical
Dimensions (D x H)
158 x 124 mm (6.22 x 4.89 in)
Weight
0.85 kg (1.87 lb.)
1.28 kg (2.82 lb.) with SMB
Mounting
Flush mount or surface mount
Color
White (RAL9010) trim ring with black inner
liner
Adjustment range
360º pan, 90º tilt, ±90º twist
Dome bubble
Polycarbonate, clear with UV blocking anti-
scratch coating
Trim ring
Aluminum
Environmental
Operating temperature
-30 ºC to +50 ºC (-22 ºF to +122 ºF)
Cold start temperature
-20 ºC (-4 ºF )
Storage temperature
-50 ºC to +70 ºC (-58 ºF to +158 ºF)
Operating humidity
5% to 93% relative humidity
Storage humidity
Up to 98% relative humidity
Impact protection
EN 50102, IK 10
Water/dust protection
IP 66 and NEMA Type 4X
Environmental
Test Method
EN50130-5:2011 Alarm systems Part 5
(Class IV Outdoor in general)

Ordering information
FLEXIDOME HD 1080p HDR VR 3-9 mm IVA
High Dynamic Range, 1/3-inch CMOS, IP Vandal-Resistant Dome Camera, 1080p30, 3-9 mm SR lens, IVA
Order number
NIN-932-V03IP

FLEXIDOME HD 1080p HDR VR 3-9 mm IVA SMB
High Dynamic Range, 1/3-inch CMOS, IP Vandal-Resistant Dome Camera, 1080p30, 3-9 mm SR lens, IVA, SMB
Order number
NIN-932-V03IPS

FLEXIDOME HD 1080p HDR VR 10-23 mm IVA
High Dynamic Range, 1/3-inch CMOS, IP Vandal-Resistant Dome Camera, 1080p30, 10-23 mm SR lens, IVA
Order number
NIN-932-V10IP

FLEXIDOME HD 1080p HDR VR 10-23 mm IVA SMB
High Dynamic Range, 1/3-inch CMOS, IP Vandal-Resistant Dome Camera, 1080p30, 10-23 mm SR lens, IVA, SMB
Order number
NIN-932-V10IPS

LTC 9213/01 Pole Mount Adapter
Pole mount adapter with stainless steel straps, light
gray finish
Order number
LTC 9213/01
VGA-IC-SP In-ceiling Support Kit for Various Bosch
Dome Cameras
Suspended ceiling support kit for various families of
Bosch dome cameras
Order number
VGA-IC-SP
UPA-2420-50 Power Supply
220 VAC, 50 Hz, 24 VAC, 20 VA Out
Order number
UPA-2420-50
UPA-2430-60 Power Supply
120 VAC, 60 Hz, 24 VAC, 30 VA Out
Order number
UPA-2430-60
UPA-2450-50 Power Supply, 220 V, 50 Hz
Indoor, 220 VAC, 50 Hz In; 24 VAC, 50 VA Out
Order number
UPA-2450-50
UPA-2450-60 Power Supply, 120 V, 60 Hz
Indoor, 120 VAC, 60 Hz In; 24 VAC, 50 VA Out
Order number
UPA-2450-60
S1460 Service/Monitor Cable
2.5 mm connector to BNC for analog and IP cameras,
1 m
Order number
S1460
VJT-XTCXF
Videojet XTC XF, H.264 video transcoder
Order number
VJT-XTCXF
MVS-FENC-AES BVIP AES 128 Bit Encryption
BVIP AES 128-bit encryption site license. This license
is required only once per installation. It enables
encrypted communication between BVIP devices and
management stations.
Order number
MVS-FENC-AES
Accessories
VDA-WMT-DOME Wall Pendant Mount Bracket
Wall pendant mount bracket for FlexiDome cameras
Order number
VDA-WMT-DOME
VDA-CMT-DOME Corner Mount Bracket
Corner mount bracket for FlexiDome cameras
Order number
VDA-CMT-DOME
VDA-PMT-DOME Pendant Pipe Mount Bracket
Pendant pipe mount bracket for FlexiDome cameras
Order number
VDA-PMT-DOME
VDA-PLEN-DOME In-ceiling Housing for Plenums Kit
FLEXIDOME in-ceiling housing installation kit (plenum-
rated) for various FLEXIDOME cameras
Order number
VDA-PLEN-DOME
VDA-455TBL Tinted bubble
Tinted bubble for FlexiDome series
Order number
VDA-455TBL
VDA-455CBL Clear bubble
Clear Bubble for FlexiDome series
Order number
VDA-455CBL
Surface Mount Box FLEXIDOME VR
Surface Mount Box for FLEXIDOME VR Cameras
Order number
VDA-455SMB-IP
