Bosch

Bosch DINION AN 4000 960H D/N Box Security Camera VBN-4075

Write a Review
SKU:
VBN-4075-C21
Shipping:
Calculated at Checkout

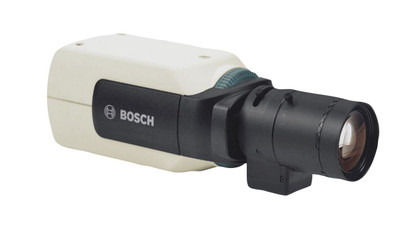

  • Bosch DINION AN 4000 Day/Night Box Security Camera VBN-4075

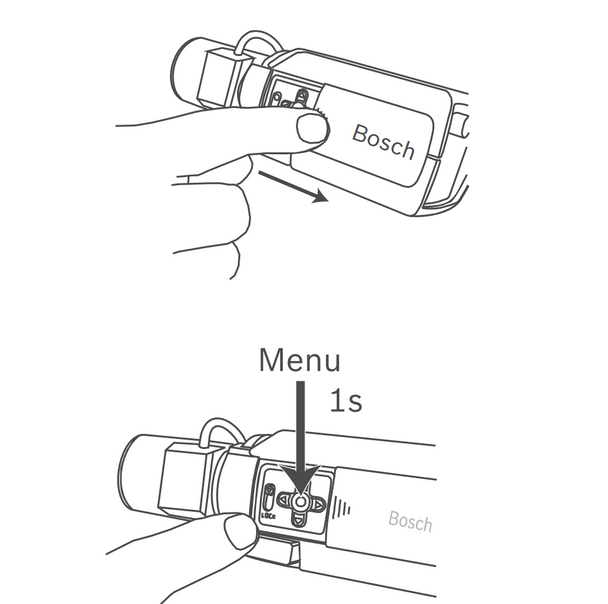

  • Bosch DINION AN 4000 Box VBN-4075 OSD Menu Access

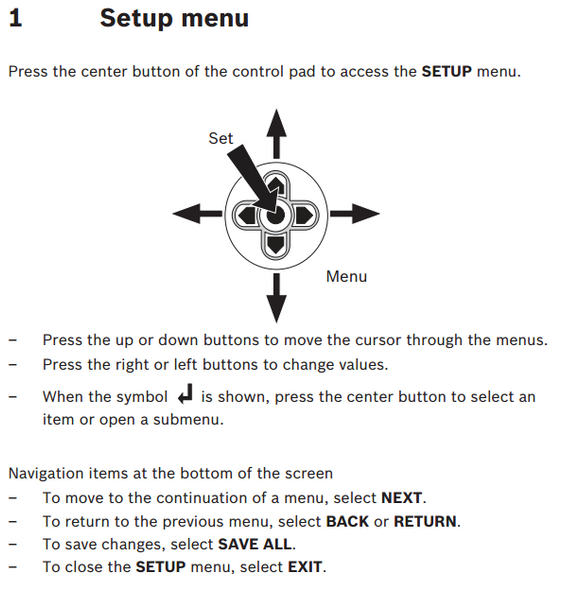

  • Bosch DINION AN 4000 VBN-4075 Menu Instructions
$190.00

Description

Bosch DINION AN 4000 VBN-4075-C21 Day/Night Box Security Camera is a high performance 960H surveillance solution with cutting-edge image enhancements. Utilizing the latest 960H premier resolution CCTV standard, these units deliver 720TVL ultra-high res and include true Day/Night function for strict protection in even low light applications. Though considered a Mid-range unit in comparison to the AN 5000, this model still exceeds the performance of many competitor's top tier selections. Bosch DINION AN 4000 VBN-4075-C21 Box Security Camera can be equipped for indoor or outdoor use and is a truly professional grade choice.

Advanced image processing including the functions like 2DNR (digital noise reduction), HLC (high light compensation) and Digital Dynamic Range combine for superior image quality in challenging lighting. The unit includes additional fine tune image settings accessible via OSD (on-screen display) for easy surveillance system configuration. The Bosch DINION AN 4000 VBN-4075-C21 Day/Night Box Security Camera 720TVL premium video clarity and excellent low light imaging to as little as 0.02 Lux enables round the clock surveillance in all types of scenarios.

Bosch DINION AN 4000 VBN-4075-C21 Day/Night CCTV Box Camera is also available in a Digital Day/Night version (VBC-4075-C21) for projects with adequate lighting. Like nearly all box style designs, the Bosch DINION AN 4000 supports interchangeable CCTV lenses, can allow indoor or outdoor install (with housing) and with 12VDC plus 24VAC dual voltage input is easily adapted to all kinds of security systems. Contact the A2Z experts if you need assistance or more information selecting the best surveillance equipment.

Bosch DINION AN 4000 VBN-4075-C21 Main Features:

  • Premium high Resolution 960H (1/3“CCD) 720TVL
  • Minimum Illumination (F1.2, 30IRE) Color: 0.05 lux - B/W: 0.01 lux
  • Digital Noise reduction 2DNR
  • Digital Extended Dynamic Range
  • White Balance, Light compensation OFF/BLC/HLC
  • VMD- Video Motion detection 4 configurable zones)
  • Privacy 8 configurable zones (4 zones w/VMD on)
  • Multiple Language OSD (On-Screen Display Menu)
  • Supports DC Iris Lenses and CS mount or C-mount Lens Types
  • Operating Temperature -20 °C to +55 °C (-4 ºF to +131 ºF)
  • Operating Humidity 20% to 90% RH
  • Dimensions (without lens) 58mm x 66mm x 122mm (2.28 x 2.6 x 4.8-inches)
  • Weight (12 VDC/24 VAC) 500 g (1.10 lbs) without lens
  • Weight (230 VAC) 600 g (1.32 lbs) without lens
  • Power Input (VBx-4075-C11, VBx-4075-C21) 12VDC / 24VAC
  • Power Input (VBx-4075-C51) 230 VAC PAL OPTION
  • Power Consumption (True D/N) 3.6 Watts max. / 0.3 Amp

Ordering information
DINION AN 4000
True day/night; 12VDC/24VAC; PAL: Order number VBN-4075-C11
DINION AN 4000
True day/night; 12VDC/24VAC; NTSC: Order number VBN-4075-C21
DINION AN 4000
True day/night; 230VAC; PAL Order number VBN-4075-C51
DINION AN 4000
Electronic day/night; 12VDC/24VAC; PAL: Order number VBC-4075-C11
DINION AN 4000
Electronic day/night; 12VDC/24VAC; NTSC: Order number VBC-4075-C21
DINION AN 4000
Electronic day/night; 230VAC; PAL: Order number VBC-4075-C51
