Bosch VBN-5085-C21 DINION AN 5000 960H D/N Box Security Camera

  • Bosch VBN-5085 DINION AN 5000 960H Day/Night CCTV Box Security Camera

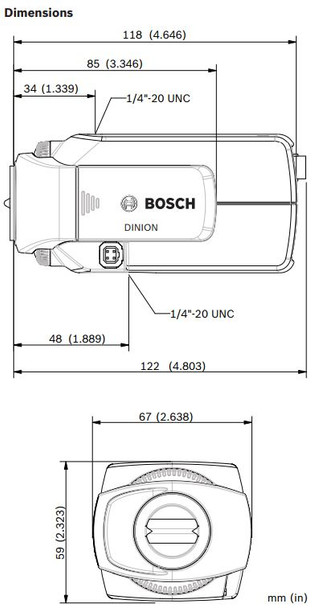

  • Bosch VBN-5085 DINION AN 5000 size
Price:
$365.00
SKU:
VBN-5085-C21
Brand:
Shipping:
Calculated at checkout
Quantity:


Product Description

Bosch VBN-5085-C21 DINION AN 5000 960H Day/Night Box Security Camera is the latest edition and current leader of the Bosch CCTV Box Camera series. Boasting the latest 960H premium video quality standard, Bosch HDR (High Dynamic Range) and advanced image processing the device provides next level CCTV Video security. Additionally the model offers true day/night function with exceptional performance in all lighting conditions. The models is highly flexible as all Box units are and can easily adapt to indoor and outdoor surveillance system needs.

Bosch DINION AN 5000 960H Box Security Camera yields 720TVL ultra-high resolution and together with 960H video recorders allows over thirty percent finer detail when compared to 4CIF CCTV systems. The Bosch VBN-5085-C21 advanced image production using the XF-Dynamic Engine, HDR and Smart BLC is truly optimized with evermore layers of technology like DNR (Digital Noise Reduction), SensUp, WDR and six pre-programmed video modes or completely customized video settings. The highest quality performance in CCTV Security Systems can be realized with the Bosch DINION AN 5000.

The VBN-5085-C21 also accommodates the full range of Professional integration requirements including I/O interface, Privacy Masking, Motion Detection, Image Stabilizer, E-Zoom and all settings are accessible through a convenient OSD. Another notable advantage among the many is the cable compensation feature allowing extended cable runs. In general, the Bosch DINION AN 5000 960H Box Security Camera offers flexible dual voltage, interchangeable lens types and supports added accessories like IR LED Illuminators for unfailing security in zero lux (light) environments. Contact the A2Z Experts today for assistance in selecting the best surveillance equipment for your project.

Bosch DINION AN 5000 Main Features:

  • 960H, 1/3" DS CCD 720TVL, WDR dual shutter
  • Minimum Illumination for Usable picture (30 IRE)
  • Color
  • 0.04 lx with SensUp 10x 0.004 lux
  • Monochrome
  • 0.02 lx with SensUp 10x 0.002 lux
  • Dynamic Engine XF-Dynamic, HDR, Smart BLC
  • Wide Dynamic Range 94 dB (WDR)
  • Dynamic Noise Reduction 2DNR + 3DNR
  • Professional Video Settings: AGC, Smart BLC, Peak White Invert, White Balance, Contrast Enhancement, Sharpness enhancement
  • Alarm Input/Output Interface
  • Bilinx Cable Compensation Up to 1000 m (3000 ft.)
  • Supports Interchangeable C-Mount and CS-Mount Lenses plus DC Auto Iris
  • Preset and Programmable Image Modes
  • Bilinx Two Way Communication via coaxial
  • Video Motion Detection 4 zones, Privacy Masking 15-zone, E-Zoom Off-16x Digital Image Stabilizer,
  • OSD Includes soft-key configuration and Multi-Language Support
  • Temperature Range: -20°C to +55°C (-4°F to 131°F) - Humidity 20% to 93% RH
  • POWER - CONSUMPTION:
  • VBN-5085/11 12VDC / 24 VAC 50Hz - 360mA (12VDC) 330mA (24 VAC)
  • VBN-5085/21 12VDC / 24 VAC 60Hz - 360mA (12VDC) 330mA (24 VAC)
  • VBN-5085/51 230VAC 50Hz - 60mA (230 VAC)
  • Dimensions (H x W x L) 58mm x 66mm x 122 mm (2.28 x 2.6 x 4.8-inches)
  • Weight (12 VDC/24 VAC) 500 g (1.10 lbs) NO lens
  • Weight (230 VAC) 600 g (1.32 lbs) NO lens


Ordering info:

DINION AN 5000 12VDC/24VAC; 50Hz PAL
Order number VBN-5085-C11

DINION AN 5000 12VDC/24VAC; 60Hz NTSC
Order number VBN-5085-C21

DINION AN 5000 230VAC; 50Hz PAL Chinese
Order number VBN-5085-C51
