Bosch

Bosch AUTODOME IP PTZ Camera Dynamic 7000 HD 1080p

Write a Review
SKU:
VG5-7230-EPC4
  • Bosch AUTODOME IP PTZ Camera Dynamic 7000 HD Pendant Housing
  • Bosch AUTODOME IP Dynamic 7000 HD Pendant and In-Ceiling Housing
  • Bosch AUTODOME IP PTZ Camera Dynamic 7000 HD Flyer
  • Bosch AUTODOME Dynamic 7000 HD PTZ enhanced imaging
  • Bosch AUTODOME IP PTZ Camera Dynamic 7000 HD easy use and integration
  • Bosch AUTODOME IP 7000 HD PTZ with Bosch IVA intelligent Video Analysis

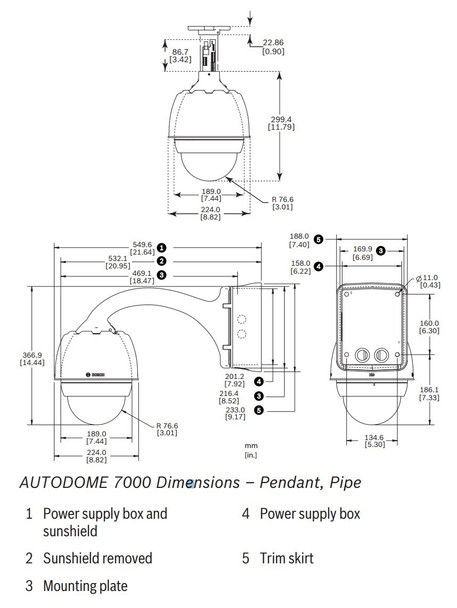

  • Bosch AUTODOME IP PTZ 7000 HD Pendant dimensions

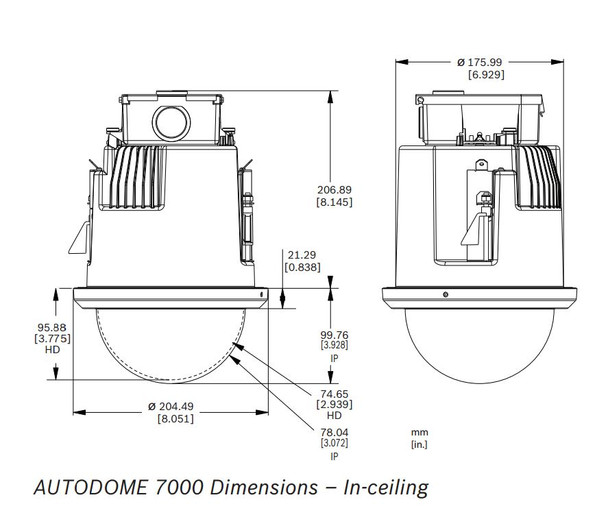

  • Bosch AUTODOME IP PTZ 7000 HD in-ceiling dimensions
  • Bosch AUTODOME IP PTZ 7000 optional mounts dimensions
Call Us

Description

NOTICE: This product has been discontinued or is EOL - Please contact our Experts or search the category link below or other related categories.

https://www.a2zsecuritycameras.com/megapixel-hd-ip-ptz-cameras.html

Moved to EOL: February 25, 2020

Bosch AUTODOME Dynamic 7000 HD IP PTZ Camera is an industry top performing speed dome Pan/Tilt/Zoom Security Camera for all sorts of professional system demands. The latest line of Bosch AUTODOME PTZ IP Cameras such as the AUTODOME Dynamic 7000 HD introduce new standards for highly intelligent, superbly flexible and truly pro-grade IP Surveillance. The Bosch IP PTZ Dynamic 7000 HD delivers superior 1080P High Definition video with enhanced image processing for maximum clarity. Smart Streaming options are also built-in, such as H.264 compression with multi-stream support while users will marvel at on-board intelligent like the Bosch IVA PTZ Auto Tracking. In addition, highlights like on-board recording, ONVIF third party integration, and High Poe Power input to all types of other sophisticated requirements are well covered, continuously proving Bosch AUTODOME PTZ IP Cameras are a best choice for top notch protection.

Bosch AUTODOME Dynamic 7000 HD PTZ Main Features:

  • 1/2.8-inch Exmor CMOS Image Sensor
  • HD 1080P at 30fps Real-time or 720P at 60fps
  • True Day/Night Superb Low Light, High Dynamic Range, iDNR, C-BIT, Image Stabilization, Anti-Fog, and SensUp
  • Advanced Streaming of H.264 with no motion stream reduction and multiple streams
  • 30x Optical Zoom w/ Auto-Focus/Auto Iris plus 12x Digital Zoom
  • 360 Degree Continuous Pan, 18 Degrees above Horizon (Pendant) 1 Degree (Recessed)
  • Supports two types of Guard Tours (Preset or Recorded) and 256 Preset Positions
  • Bosch IVA (Intelligent Video Analysis) PTZ Auto Tracking Analytic Included
  • Privacy Masking, Motion Detection and on-board recording with SD Card Slot
  • ONVIF Profile S, (Auto-MDIX) Compliant for easy third party IP System integration
  • Numerous IT Network Protocols such as HTTPS, RTSP, ARP, FTP, UPnP, QoS, IPv6, DDNS, to encryptions like TLS, SSL, and AES
  • Rugged Outdoor Construction with IP66 weatherproof rating (Pendant) NEMA 4X (Except for Impact with Acrylic Dome)
  • Temperature Operating Range: -40°C to 55°C (-40°F to 131°F)
  • 24VAC or High PoE (Power over Ethernet IEEE 802.3at)
  • AVAILABLE as Pendant Style (VG5-7230-EPC4) or In-ceiling Style (VG5-7230-CPT4)


Bosch Dynamic 7000 HD IP Video Performance:
Featuring a powerful low light, 2 Megapixel Exmor CMOS image sensor coupled with True Day/Night operation, iDNR (Digital Noise Reduction), SensUp, C-BIT (Content Based Image Technology) to Wide Dynamic Range, the Bosch AUTODOME IP PTZ Dynamic 7000 HD quickly outperforms the competition. Numerous video enhancements are included like Anti-Fog or Image Stabilization to ensure optimal performance in a wide range of environments. Users can enjoy 1080P HD in full Real-time 30fps or utilize the 720P setting for outstanding 60fps. Layers of configurable video settings to pre-programmed image modes allows the full range of custom adjustments or simply an easy setup. H.264 video compression with advanced reduction methods that minimize bandwidth during no motion frames to multi-streaming benefits are all incorporated.

Bosch AUTODOME IP Dynamic 7000 HD Pure Intelligence:
Additionally, the latest Bosch AUTODOME PTZ Cameras cover practically all requirements be it network settings, intelligent Functions or 3rd Party Adaptability. Foremost these units include a common platform web interface (CPP4) that is easy to navigate yet immensely feature rich. Not only does the unit include multiple modes of Bosch IVA PTZ Auto Tracking but the Video Analysis ties together with on-board actionable rule system to enable a variety of reactive or automatic operations. Third Party IP Security Camera System can benefit to from the Bosch AUTODOME PTZ thanks to universal ONVIF compliance. Dozens of Network standard protocols and encryptions are further available for selection while every other popular demand like Two Way Audio or I/O alarm interface is also provided. Even on-board recording is not overlooked with high capacity local storage that is able to work with many types of SD memory cards.

Bosch Quality, Adaptability, Reliability:
Manufactured to the highest standards, the Bosch AUTODOME PTZ have legacy of providing high quality video surveillance that is widely adaptable and fully reliable. Innovative Design is quickly apparent with layers of features seamlessly combined to deliver a Pan/Tilt/Zoom solution that yields maximum satisfaction. There are Two Bosch AUTODOME IP Dynamic 7000 HD PTZs, one as a Pendant Style (VG5-7230-EPC4) for any outdoor needs or an in-ceiling style (VG5-7230-CPT4) for low profile indoor installations. Various accessories are offered from mounts to tinted dome cover bubbles allowing easy customization in a variety of professional installs. The Pendant Model is IP66 weatherproof rated and even NEMA 4X compliant (except the impact rating of the acrylic dome) proving it’s absolutely ready for rugged outdoor applications. Another key benefit to consider is the dual power option with High PoE (power over Ethernet) function for simple, single cable install. If you need assistance with selecting the best parts for your Bosch Security System, call the A2Z Experts today.


Available Models:

Bosch AUTODOME dynamic 7000 HD PTZ camera, PENDANT
1080p 30fps, 30x zoom, pendant, Bosch IVA; PoE; Quad-streaming; IP66; pendant mount,Clear bubble.
Order number VG5-7230-EPC4

Bosch AUTODOME dynamic 7000 HD PTZ camera, IN-CEILING
1080p 30fps, 30x zoom, in-ceiling, Bosch IVA, PoE, Quad-streaming, IP54, in-ceiling mount, Tinted bubble.
Order number VG5-7230-CPT4

Accessories:

Power Supplies:

High PoE Midspan, 60W, single port, AC input
Order number NPD-6001A

24VAC 100W Power Supply Unit AUTODOME or MIC7000 Series PTZ camera. White, aluminum enclosure rated IP66 and IK08.
Order number VG4-A-PSU0

120VAC 100W Power Supply Unit AUTODOME or MIC7000 Series PTZ camera. White, aluminum enclosure rated IP66 and IK08.
Order number VG4-A-PSU1

230VAC 100W Power Supply Unit AUTODOME or MIC7000 Series PTZ camera. White, aluminum enclosure rated IP66 and IK08.
100 W output. Optional trim skirt (sold separately).
Order number VG4-A-PSU2

Mounts:

VG4-A-PA0 Pendant Arm Mount
Pendant Arm Mount with power supply box for AUTODOME PENDANTS, white
Order number VG4-A-PA0

Pendant Arm Mount with 120VAC Transformer power supply box for 120VAC AUTODOME PENDANTS, white
Order number VG4-A-PA1

Pendant Arm Mount with 230VAC Transformer power supply box for 230VAC AUTODOME PENDANTS, white
Order number VG4-A-PA2

Pendant Arm with Wiring for an AutoDome PTZ pendant housing
Order number VGA-PEND-ARM

Wall mounting plate for VGA-PEND-ARM used with AUTODOME PTZs
Order number VGA-PEND-WPLATE

Roof Parapet mount, white (VG4-A-9543 Pipe Mount Cap required. Available separately.)
Order number VGA-ROOF-MOUNT

Flat Roof Mount Adapter used to mount unit in an upright position on a flat surface with roof parapet mount VGA-ROOF-MOUNT
Order number LTC 9230/01

Pole Mount Adapter for an AUTODOME pendant arm designed for poles with a diameter of 100-380mm (415 in.), white
Order number VG4-A-9541

Corner Mount Adapter for an AUTODOME pendant arm
Order number VG4-A-9542

Pipe mount, white, for an AutoDome Series pendant housing
Order number VG4-A-9543

In-ceiling - Suspended ceiling support kit for AUTODOME 100/600/7000 Series
Order number VGA-IC-SP

VGA-SBOX-COVER Cover for AutoDome Power Supply Boxes
Order number VGA-SBOX-COVER

Trim Skirt for AutoDome Power Supply Boxes - VG4-A-PSU0, VG4-A-PSU1, and VG4-A-PSU2
Order number VG4-A-TSKIRT

HD High-resolution Acrylic Dome Bubble, Low Impact for a Pendant Housing

Order number VGA-BUBBLE-PCLA - CLEAR DOME
Order number VGA-BUBBLE-PTIA - TINTED DOME

HD High-Resolution Acrylic Bubble for In-Ceiling Housing

Order number VGA-BUBHD-CCLA - CLEAR DOME
Order number VGA-BUBHD-CTIA - TINTED DOME

Fiber Optic Ethernet Media Converter Kit - Ethernet media converter video transmitter/data Receiver fiber optic kit
Order number VG4-SFPSCKT

Small Form factor Pluggable Fiber Optical Interfaces:

SFP Fiber Optic Module, Multi-mode, 1310 nm, 2 km (1.2 miles), 2 LC connectors
Order number SFP-2

SFP Fiber Optic Module, Single-mode, 1310 nm, 20 km (12.4 miles), 2 LC connectors
Order number SFP-3

SFP Fiber Optic Module, Multi-mode, 1310/1550 nm, 2 km (1.2 miles), 1 SC connector
Order number SFP-25

SFP Fiber Optic Module, Multi-mode, 1550/1310 nm, 2 km (1.2 miles), 1 SC connector
Order number SFP-26

Last Updated: December 23, 2014
