Description

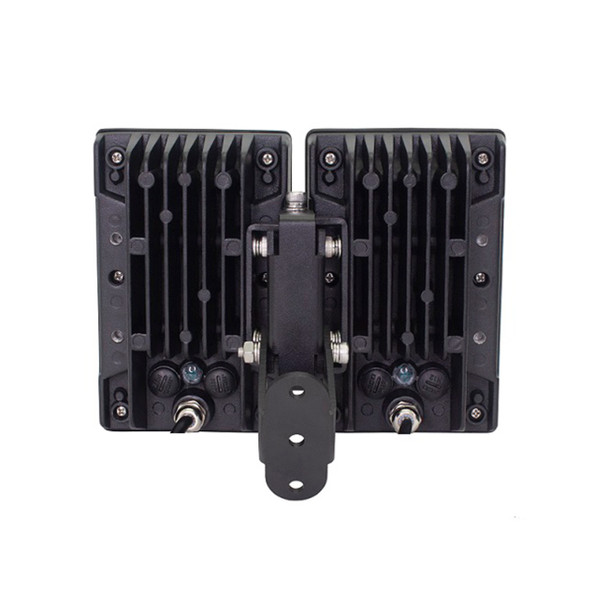

The ALX-SG122-IR Vandal-Proof IR Illuminator is engineered for mid to long-range infrared lighting, providing surveillance-grade illumination to security cameras during low-light or complete darkness. It features a durable IK10 vandal-resistant aluminum housing and IP66-rated environmental protection, making it a reliable choice for outdoor and industrial security camera installations.
This model is offered in fixed configurations with light beam angles from 15° to 180° and 850nm or 940nm infrared wavelength options. By featuring dual LED array, the device allows some adjustability between its degree of spread versus its range. At 850nm, the ALX-SG122-IR delivers IR distances up to 250 meters in narrow-angle mode. Each unit includes 24 high-power infrared LEDs and supports adjustable brightness via current control. The illuminator is automatically activated with a built-in day/night sensor for hand-free operation.
The ALX-SG122-IR supports a range of applications including perimeter protection, critical infrastructure, parking zones, and large open areas. With vandal-resistant polycarbonate panels and optimized thermal management, this illuminator ensures stable, long-lasting IR output over its 50,000-hour rated life. It comes complete with a wall-mount bracket and compact design for streamlined installation.
Key Features:
- 24 high-power IR LEDs with uniform illumination
- Available beam angles: 15° to 180° (per model)
- Infrared wavelength: 850nm (semi-covert) or 940nm (covert)
- IR distance up to 250 meters (850nm, narrow)
- Automatic day/night activation
- Rugged IK10 aluminum housing and PC panel
- Wide temperature range and weather-resistant
- Compatible with analog and IP surveillance systems
- Wall mount bracket included
Specifications:
- LED Type: 24 pieces high power IR LED
- Wavelength: 740nm / 850nm / 940nm (options - default 850nm)
- Beam Angle: 15° to 180°
- Beam Distance: 250m to 35m (850nm)
- Voltage: DC12V
- Current: 3A adjustable (850nm)
- Switch: Automatic day/night
- Operating Temp: -30°C to 50°C
- Protection: IP66 / IK10
- Panel: Vandal-proof PC
- Housing: Aluminum die-casting
- Weight: N.W. 1.6KG, G.W. 2KG
- Packing Dimensions: 250×220×160mm
Model Order Info:
850nm Semi-Covert
ALX-SG122-IR15 15°-30° 250m-165m
ALX-SG122-IR30 30°-60° 165m-110m
ALX-SG122-IR45 45°-90° 115m-80m
ALX-SG122-IR60 60°-120° 80m-55m
ALX-SG122-IR90 90°-140° 70m-45m
ALX-SG122-IR120 120°-180° 50m-35m
940nm Fully Covert
ALX-SG122-9IR15 15°-30° 100m-65m
ALX-SG122-9IR30 30°-60° 65m-45m
ALX-SG122-9IR45 45°-90° 45m-30m
ALX-SG122-9IR60 60°-120° 30m-23m
ALX-SG122-9IR90 90°-140° 25m-18m
ALX-SG122-9IR120 120°-180° 15m-13m
