ACTI B94 1.3MP 10x Mini PTZ Vandal Dome IP Camera

Write a Review
Calculated at Checkout
  • ACTI B94 1.3MP Mini PTZ Vandal Dome IP Security Camera

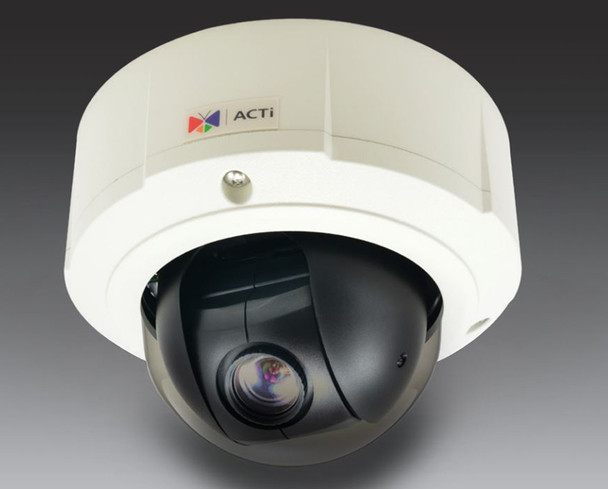

  • ACTI B94 Outdoor Vandal Dome MInI PTZ IP Camera 1.3MP

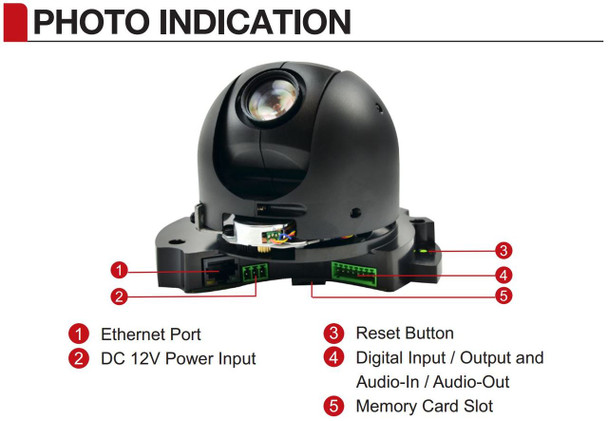

  • ACTI B94 internal PTZ Diagram

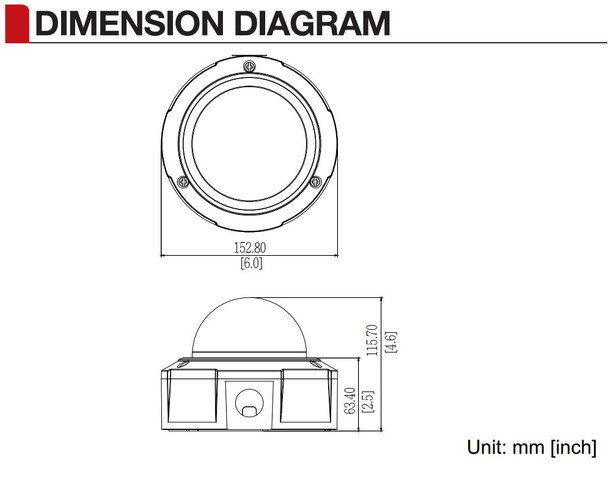

  • ACTI B94 MIni PTZ dimensions
  • ACTI B94 Standard Default Surface Mounting
  • Optional Mini PTZ Electrical Power Box Adapter Plate PMAX-0804
  • Optional Mini PTZ In-ceiling recessed (flush) mount kit PMAX-1013
  • Optional Mini PTZ Wall Mount SMAX-0246

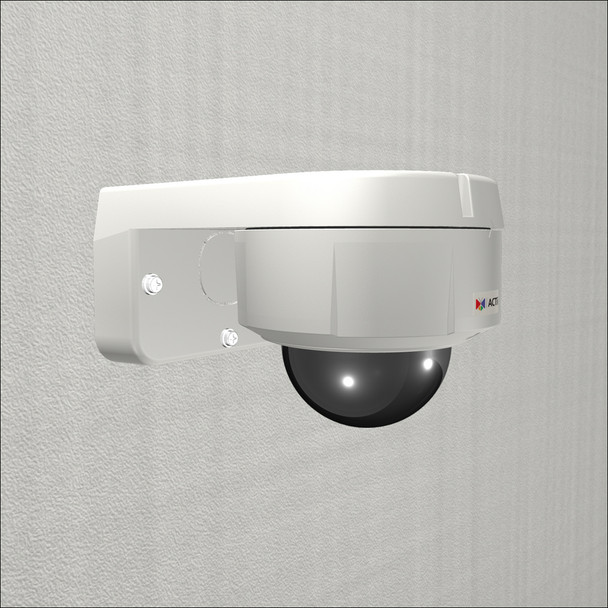

  • Optional Mini PTZ Wall Mount L Type Bracket PMAX-0308

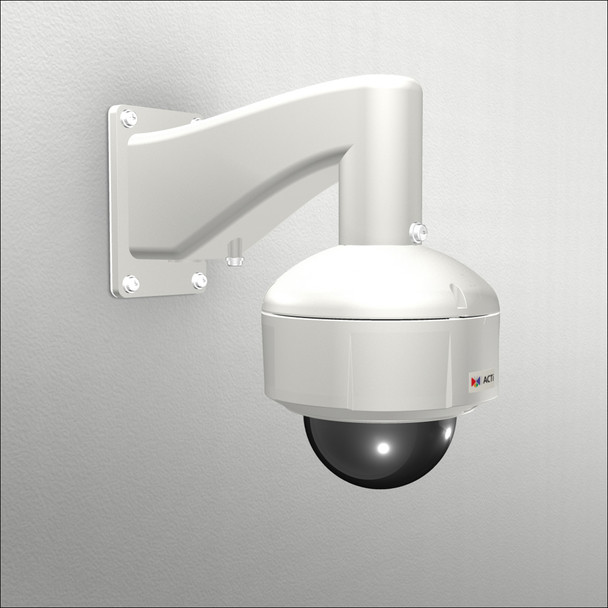

  • Optional Outdoor Wall Mount Pendant Mini PTZ Kit SMAX-0150
  • Optional Outdoor Mini PTZ Ceiling Pendant Tube Mount Short Kit SMAX-0051
  • Optional Outdoor Mini PTZ Ceiling Pendant Tube Mount Extended Kit SMAX-0047
  • Optional Outdoor Mini PTZ Vertical Pole Pendant Tube Mount Extended Kit SMAX-0100

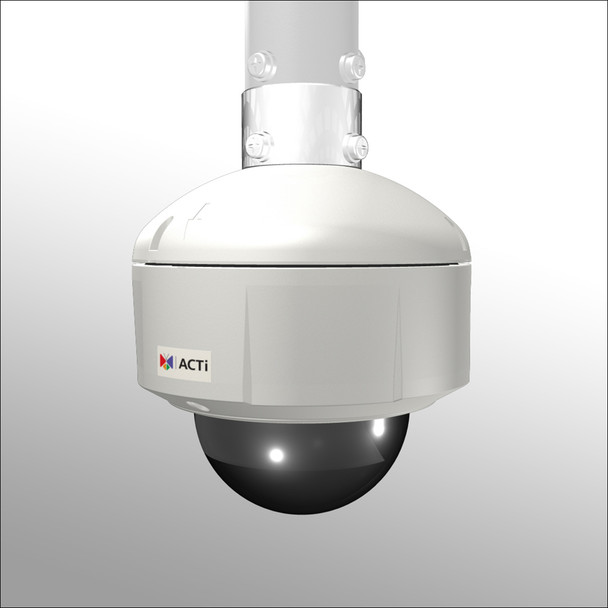

  • Optional Pendant NPT Adapter Kit SMAX-0152
  • Optional Goose-neck Mini PTZ Wall Mount Kit SMAX-0065

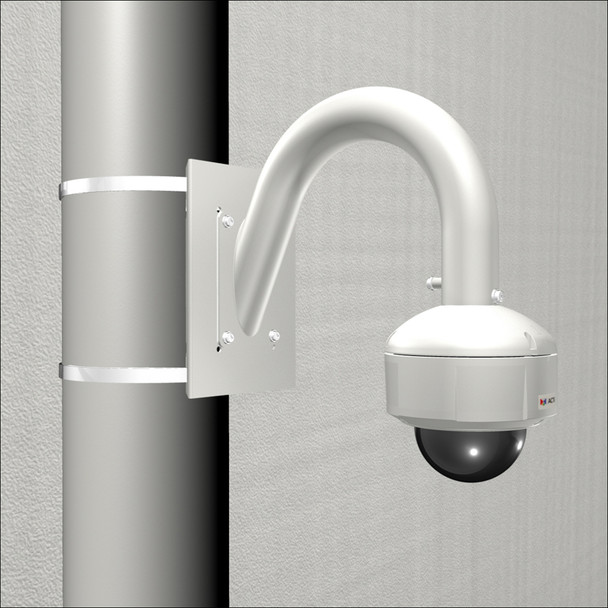

  • Optional Goose-neck Mini PTZ Wall plus Pole Mount Adapter Kit SMAX-0110
  • Optional Mini PTZ Wall and Pole Mount Adapter Kit SMAX-0252


ACTI B94 1.3MP Mini IP PTZ Camera is the base model in a new line of superior compact Pan/Tilt/Zoom security cameras for professional IP video. Integrated around a progressive Scan CMOS 1.3 megapixel Image sensor the device is equipped with a mechanical IR cut-filter and various video enhancements for great day/night operation. ACTi B94 Mini PTZ benefits users with Real-time 1.23 Megapixel (1280x960) at up to 30fps or even Full 720P HD at 60fps delivers excellent results for high speed applications. Dual Streaming including H.264 to Two Way Audio Support, these units are well rounded. Encased in a traditional style and sized Vandal Proof Dome, these compact devices provide IP67 weatherproof and IK10 vandal resistant protection. Support for PoE, ONVIF, optional mounts and a 3 year warranty make the ACTi B94 Mini PTZ IP Cameras a solid choice.


ACTi B94 Main Features:

  • 1.3MP Progressive Scan CMOS HD Sensor
  • Dual Streaming with H.264 or MJPEG
  • 1.23MP (1280x960) at 30fps or 720P HD (1280x720) at 60fps
  • 10x Optical Zoom Lens (f4.9mm-49mm DC Iris Auto Focus)
  • Pan: -175°-175°, Tilt: 0°-180° (with E-flip)
  • True Day/Night ICR Color: 0.1 lux, B/W: 0.05 lux at F1.8
  • Basic WDR (88dB Wide Dynamic Range), SLLS (Superior Low Light Sensitivity), DNR (Digital Noise Reduction)
  • On-Board Storage via MicroSDHC or MicroSDXC
  • Two Way Audio with Line Input (Terminal)
  • Alarm Digital I/O 1 input/1 output (Terminal)
  • Alarm Triggers: Motion, Sound and Digital Input Detection
  • Alarm Response: FTP, Email Notification, Activate External Output, Trigger PTZ, Local Save/Record and more
  • Operating Temperature: -20°C ~ 50°C (-4°F ~ 122 °F)
  • Weatherproof IP67 and IK10 High Impact, Vandal Resistant
  • Dimensions (Φ x H): 153mm x 116mm (6" x 4.6")
  • Weight: 1263 grams (2.78 lbs)
  • Power Source / Consumption: PoE Class 3 (IEEE 802.3af) / 12.95 Watts (built-in heater and fan on)
  • 12VDC / 10.36 Watts (built-in heater and fan on)
  • Countless Optional Mounting Configurations, Call our Experts for Assistance


Excellent Video Surveillance Performance:
ACTI B94 1.3MP Mini IP PTZ Camera serves a wide range of applications with ease thanks to a powerful combination of imaging attributes. The built-in 1.3MP Image Sensor benefits from advanced ACTi image processing including Wide Dynamic Range (WDR), Superior Low Light Sensitivity (SLLS) and of course Digital Noise Reduction (DNR). Furthermore true Day/Night operation with mechanical IR Cut-filter provides automatic switching between Color to B/W video as well as makes the B94 an Infrared sensitive PTZ IP Camera. Advantages are found across the board, like dual streaming with MJPEG or H.264 and each individually configurable. Users will also enjoy Real-time (1280 x 960) 1.23 Megapixel Video at up to 30fps or for really high speed capture users can select a full 720P HD (1280x720) stream with stunning 60fps. Additionally the 10x optical zoom lens featuring DC Iris plus Auto Focus to a full range Pan/Tilt with Auto Flip, Preset Positions, and Preset Tours these units are very similar to full sized Pan/Tilt/Zoom systems in ability.


Smart Design, Intelligent Features:
ACTi IP Cameras provide professional solutions with highly adaptable capabilities, quality, performance and cost effectiveness. This Mini HD PTZ Camera is just the same with a full range of Pro attributes, factors like intelligent on-board Detection Methods, Alarm I/O and Two Way Audio provide a wide set of application possibilities. Smart Alarm Management also allows a diverse set of actions to be achieved automatically from email notification to device control. Local Recording is supported with MicroSDHC or MicroSDXC card slot or users can easily route to an FTP. A well-developed web interface allows complete control and in-depth settings to customize the device for various project requirements. Over a dozen IT network protocols are also included, so be it RTSP video streaming or DDNS routing, the ACTi B94 IP PTZ security cameras are well prepared.


Flexible Install, Highly Adaptable:
ACTi delivers complete end-to-end solutions for professional IP Surveillance Systems. Their devices like the ACTi B94 PTZ Camera can be used alone as its own stand-alone security system to integrated with third part IP solutions via ONVIF and otherwise. ACTi further gives FREE access to applications like their NVR software or innovative Edge Recorder Software ensuring powerful surveillance options. The ACTi B94 Mini PTZ also has hardware aspects that enable it to adapt to nearly any installation need. Constructed in a rugged, IK10 High Impact, Vandal Proof Dome design these devices also feature IP67 weatherproof rating for absolutely the harshest demands. Numerous optional mounts and brackets promise complete adaptability for any type of Security camera systems.
Easy Installation with included Software Utilities to PoE or 12VDC power input users can rest assured they've selected a quality product.


acti-ptz-wall-mount-with-junction-box-smax-0089.jpg flushmount.jpg
pmax-0308-l-type-wall-bracket.jpg vertical-pipe-mount-junction-box-pendant-tube-and-adapter-kit-dome-smax-0206.jpg
smax-0063-goose-neck-wall-mount-bracket.jpg npt-dome-ptz-mount-adapter-smax-0152.jpg smax-0015.jpg

Last Updated March 25, 2015
