ACTi B96 Vandal Dome Mini PTZ IP Camera 5MP IP67 10x

Write a Review
SKU:
B96
MPN:
B96
  • ACTi B96 Outdoor Dome Mini PTZ IP Camera 5 Megapixel

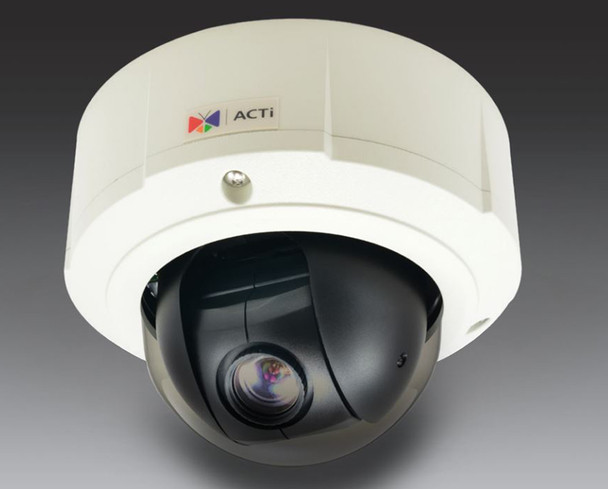

  • ACTi B96 Mini PTZ IP Camera IP67 10x 5 Megapixel
  • ACTi B96 Mini Dome Internal Diagram

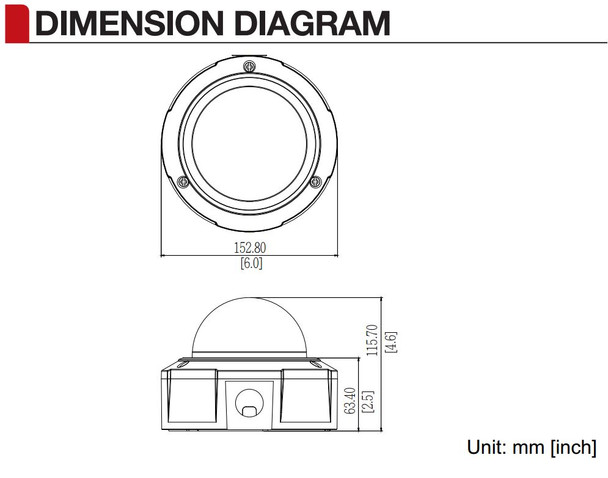

  • ACTi B96 Dimensions
  • ACTI B96 Standard Surface Mounting

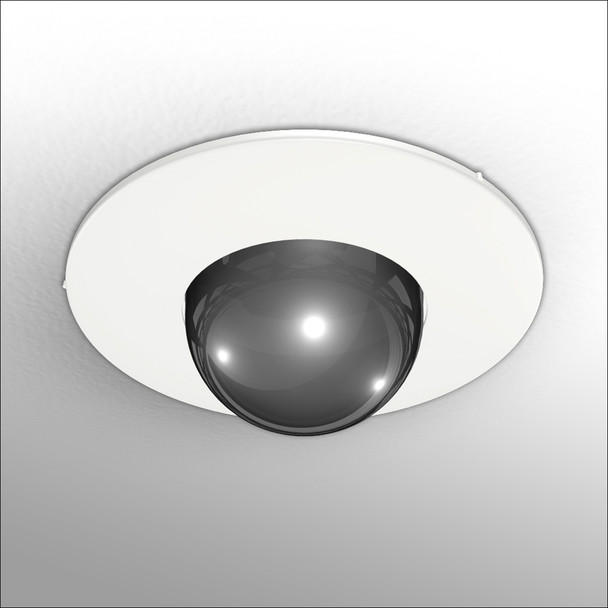

  • Optional Mini PTZ In-ceiling recessed (flush) mount kit PMAX-1013
  • Optional Mini PTZ Electrical Power Box Adapter Plate PMAX-0804
  • Optional Mini PTZ Wall Mount SMAX-0246
  • Optional Mini PTZ Wall Mount L Type Bracket PMAX-0308
  • ACTi B96 Vandal Dome Mini PTZ IP Camera 5MP IP67 10x

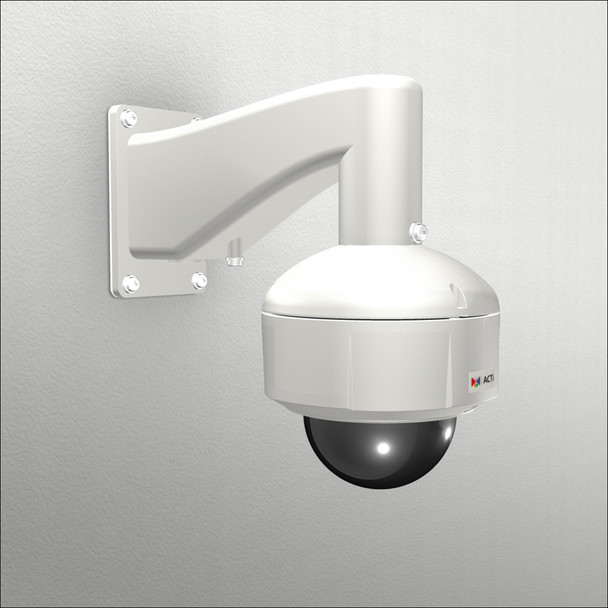

  • Optional Outdoor Wall Mount Pendant Mini PTZ Kit SMAX-0150

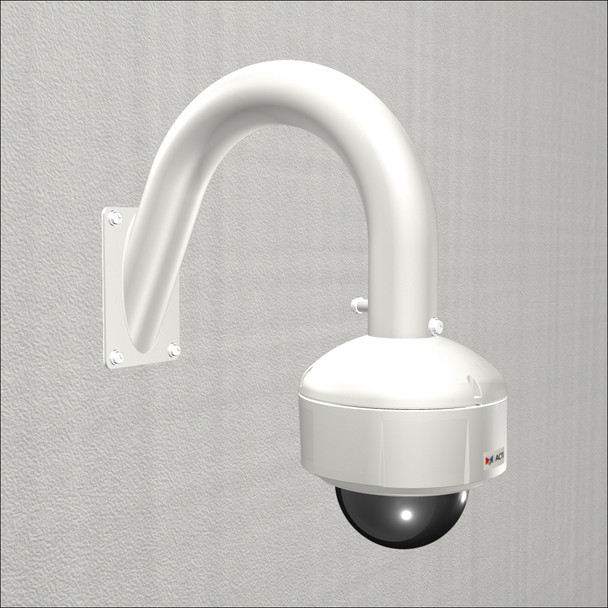

  • Optional Goose-neck Mini PTZ Wall Mount Kit SMAX-0065
  • Optional Mini PTZ Wall and Pole Mount Adapter Kit SMAX-0252
  • Optional Goose-neck Mini PTZ Wall plus Pole Mount Adapter Kit SMAX-0110

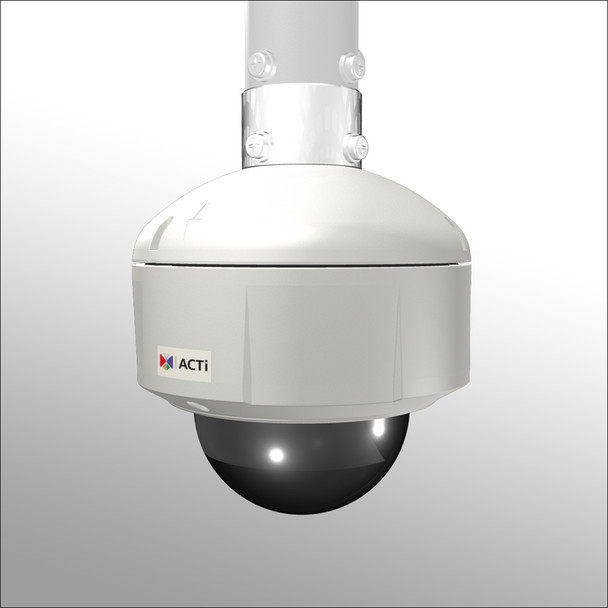

  • Optional Pendant NPT Adapter Kit SMAX-0152

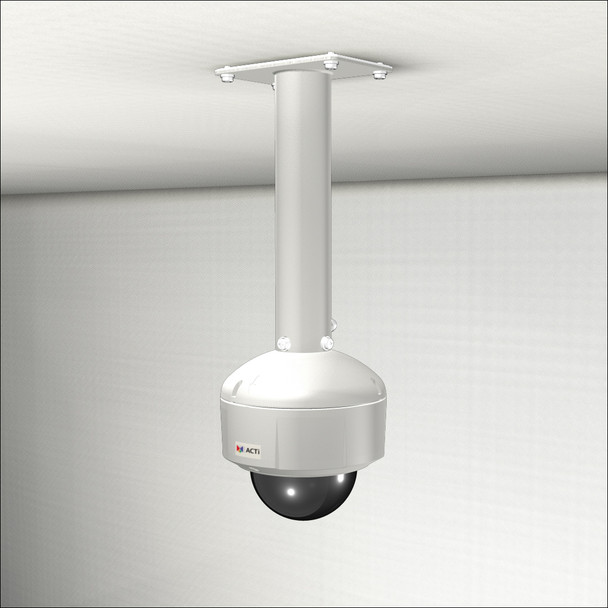

  • Optional Outdoor Mini PTZ Ceiling Pendant Tube Mount Short Kit SMAX-0051

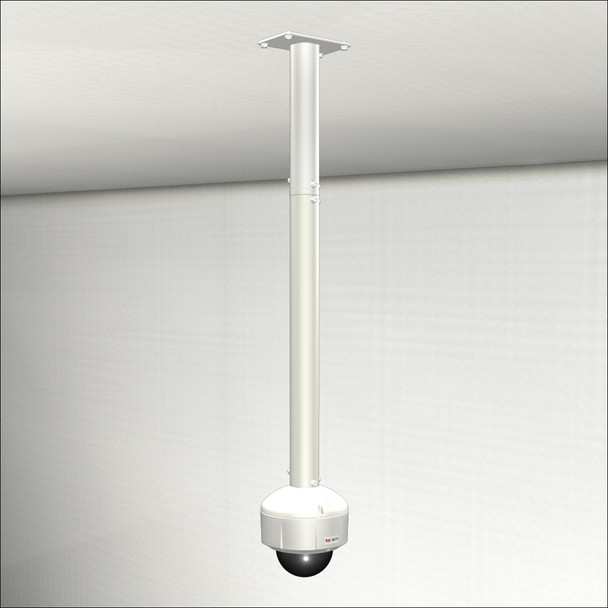

  • Optional Outdoor Mini PTZ Ceiling Pendant Tube Mount Extended Kit SMAX-0047

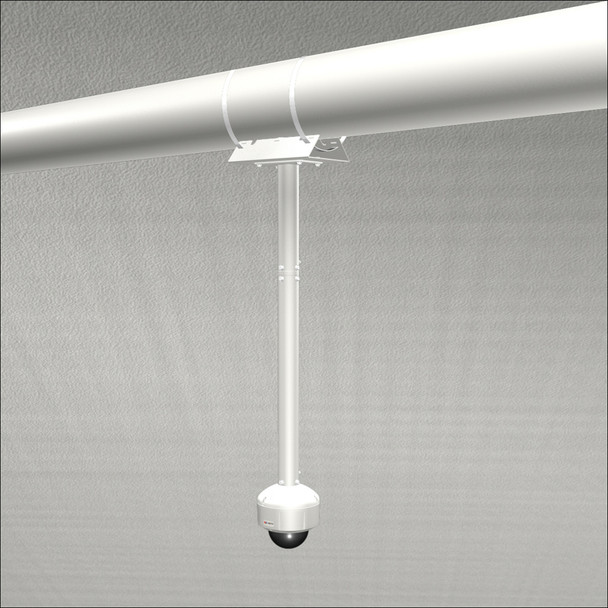

  • Optional Outdoor Mini PTZ Vertical Pole Pendant Tube Mount Extended Kit SMAX-0100
Contact Us

Description

NOTICE: This product has been discontinued or is EOL - Please contact our Experts or search the category link below or other related categories.

https://www.a2zsecuritycameras.com/megapixel-hd-ip-ptz-cameras.html

Moved to EOL: February 26, 2020

ACTi B96 5 Megapixel Mini PTZ IP Camera is a market leading solution for ultra-high definition and high versatility. This unique Pan/Tilt/Zoom security camera boast a 5 megapixel image sensor that yields real-motion (15fps) video in 5MP or 3MP resolution or real-time (30fps) video surveillance in full 1080P HD Surveillance. Added benefits from Dual Streaming with H.264 or MJPEG to True Day/Night operation plus DNR and WDR promise excellent video security in all aspects. Likewise intelligent on-board functionality in both hardware accessories like audio or alarm devices to smart software functions including detection, trigger actions or local recording are all available. The ACTi B96 5MP Mini PTZ IP Cameras also have a rugged build with an outdoor IP67 traditional vandal proof dome design that is truly discreet. Along with numerous mounting options, flexible integration like ONVIF support to PoE power input the ACTi 5MP Mini PTZ IP Camera is a best in class solution for professional surveillance systems.


ACTi B96 Main Features:

  • 5MP Progressive Scan CMOS HD Sensor
  • Dual Streaming with H.264 or MJPEG
  • 5MP (2592 x 1944) or 3MP (2048 x 1536) at 15fps or
  • 2MP (1920 x 1080) 1080P HD at 30fps Real-time
  • 10x Optical Zoom Lens (f4.9mm-49mm DC Iris Auto Focus)
  • Pan: -175°-175°, Tilt: 0°-180° (with E-flip)
  • True Day/Night ICR Color: 0.1 lux, B/W: 0.05 lux at F1.8
  • Basic WDR (74 dB Wide Dynamic Range) and DNR (Digital Noise Reduction)
  • On-Board Storage via MicroSDHC or MicroSDXC
  • Two Way Audio with Line Input (Terminal)
  • Alarm Digital I/O 1 input/1 output (Terminal)
  • Alarm Triggers: Motion, Sound and Digital Input Detection
  • Alarm Response: FTP, Email Notification, Activate External Output, Trigger PTZ, Local Save/Record and more
  • Operating Temperature: -20°C ~ 50°C (-4°F ~ 122 °F)
  • Weatherproof IP67 and IK10 High Impact, Vandal Resistant
  • ONVIF, TCP, UDP, HTTP, HTTPS, PPPoE, RTP, RTSP, DDNS, NTP, ICMP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour, Sony VISCA, Pelco D, Pelco P
  • Dimensions (Φ x H): 153mm x 116mm (6" x 4.6")
  • Weight: 1263 grams (2.78 lbs)
  • Power Source / Consumption: PoE Class 3 (IEEE 802.3af) / 12.95 Watts (built-in heater and fan on)
  • 12VDC / 10.36 Watts (built-in heater and fan on)
  • Countless Optional Mounting Configurations, Call our Experts for Assistance


Superior 5 Megapixel Pan/Tilt/Zoom Surveillance:
The ACTi B96 Mini IP PTZ Security Cameras yield stunning 5 Megapixel video security including powerful Pan/Tilt/Zoom function in a compact vandal dome casing. Featuring excellent low light capabilities the mechanical IR Cut-filter delivers True Day/Night operation and added DNR (Digital Noise Reduction) helps keep imaging crisp and clean. The units Basic WDR (Wide Dynamic Range) also help ensure optimal video in what would otherwise be challenging lighting conditions. Individually configurable, dual video streams of either H.264 or MJPEG compression with support for 5MP, 3MP, 1080P HD, 720P HD and other resolution formats offers total adaptability. The device is equipped with a 10x optical, DC iris, Auto Focus Zoom lens plus a 350 degree Pan and 180 degree Tilt (with E-Flip) allowing highly versatile viewing in all directions, on demand.


Innovative Functions, Smart Design:
All around the ACTi B96 Mini PTZ Cameras are smart devices capable of completely stand-alone IP Surveillance. Complete system operations for detection methods from Sound, motion or external devices to event triggers from local recording on MicroSDHC (or MicroSDXC) card to FTP upload, email notification or PTZ movement are just a few examples. Certainly Two Way Audio, Alarm Input and Relay output are all included and likewise ACTi offers a full selection of FREE Surveillance Software such as ACTi NVR or Edge Recorder. Simple integration for all kinds of security system requirements the devices are rich with network protocols like RSTP, ICMP, IGMP, UPnP, ARP, PPPoE or PTZ Protocols such as Pelco D or Sony VISCA and Security Interoperability standards like ONVIF. Pan/Tilt/Zoom operation equally professional as well with preset tours, preset points, Auto Scan and absolute positioning. Precision control is certain too and up to 90 degrees a second speed allows effective tracking of quick moving objects.


Flexible Installation and Adaptation:
In addition to all the software capabilities and added hardware abilities, these PTZ Cameras have a wide set of optional mounting accessories. Units can be customized for Pendant, Wall Mount or even in-ceiling applications to perfect all kinds of security systems. The PTZ units are outdoor ready out of the box with a weatherproof IP67, vandal proof and high impact IK10 rating making them perfect for almost any harsh scenario, yet likewise unobtrusive in areas larger dome PTZs would stand out. Optional PoE with standard Power over Ethernet (IEEE 802.af) or 12VDC input also allows ease in accommodating all sorts of system needs. Optional smoked dome, PC served Analytics to third party IP camera system integration the ACTi B96 5MP Vandal Dome Mini PTZ Camera is an impressive product.

TONS OF OPTIONAL MOUNTING ACCESSORIES:

acti-ptz-wall-mount-with-junction-box-smax-0089.jpg flushmount.jpg
pmax-0308-l-type-wall-bracket.jpg vertical-pipe-mount-junction-box-pendant-tube-and-adapter-kit-dome-smax-0206.jpg
smax-0063-goose-neck-wall-mount-bracket.jpg npt-dome-ptz-mount-adapter-smax-0152.jpg smax-0015.jpg

Last Updated March 25, 2015
