Unitek UK-WM9616H 960H 16ch H.264 DVR

  • Unitek UK-WM9616H 960H 16 channel H.264 Digital Video Recorder
  • Unitek UK-WM9616H 960H Watchman DVR Rear Panel, CMS Software, Mobile App

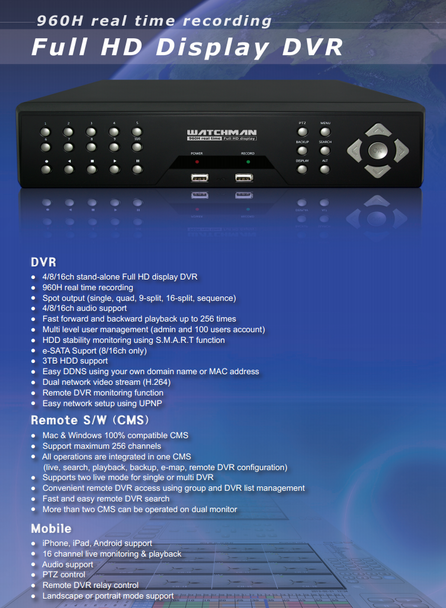

  • Unitek UK-WM9616H Watchman 960H 16ch DVR Features
  • Unitek UK-WM9616H 960H Watchman DVR Specifications
No Longer Available - Contact Us

Product Description

Unitek Watchman UK-WM9616H 960H 16 channel H.264 Digital Video Recorder delivers a new age in high performance CCTV video security. The unit employs the latest 960H (a.k.a. WD1 960 x 480 pixel) technology for higher resolution CCTV video recording in up to real-time 480fps, 30fps per security camera. The Unitek Watchman 960H DVR also provides dual streaming H.264, High Definition Local Monitoring, Complete Control via a 256-channel Remote Client CMS Software and flexible, full function Mobile Viewing. All of these features combine with other security interface standards plus more to provide a completely professional, CCTV solution with cutting edge abilities.

Complete Cross-Platform Remote Viewing and HD Local Viewing:
The Unitek Watchman DVR series allows superior multi-site video surveillance monitoring and management via its 256 channel CMS Remote Client Software. This software provides feature rich, ease of use for the Watchman Digital Video Recorders and the CMS platform is MAC and PC compatible for maximum user flexibility. Whether remotely or locally, this DVR has your security operations covered with full feature front panel and USB mouse operation. HDMI high definition output, VGA output and Spot monitor output all further enable unique security system designs. Regardless of its low cost, the Watchman Digital Video Recorders deliver a powerful and pro-grade option to satisfy almost any security system need.

Full Range of Professional Features and Mobile Viewing:
Unitek UK-WM9616H 960H 16ch H.264 DVR of course covers all the primary CCTV system integration options, from Alarm I/O to RS-485 PTZ Camera Controls. The device supports two on-board hard drives at up to 3TB each while alternatively eSATA can be used in-place of one SATA storage devices. Network and USB back up is also supported and all sorts of functions like Search, Audio or even PTZ Control is supported by the IPhone, IPad and Android mobile applications. Contact the A2Z Security Experts for more info and more advantages of the Unitek Watchman DVRs.


Unitek UK-WM9616H Main Features:

  • Linux Embedded DVR: 16 Channel Video/16 Channel Audio Input
  • 960H or WD1 (960 x 480 pixels) High-Resolution at up to 480fps Real-time Recording
  • Support for High Definition HDMI output, VGA and BNC Spot Monitor Connections
  • Full Function Front Panel and USB Mouse Control
  • 256-channel CMS Remote Client Software that is fully MAC and PC compatible
  • Remote S/W (CMS) Supports Multi-Site Surveillance, Dual Monitors to Full DVR Settings
  • Android, IPhone, IPad Mobile App support with Live 16ch Multi-screen, Search, Playback, PTZ, Audio
  • 1 Admin and 100 User Accounts
  • S.M.A.R.T HDD Monitoring - Up to 3TB Hard Drive Support - Includes 2 Hard Drive Bays
  • RS-485 PTZ Control Interface
  • DVR Software upgrade via Network, USB flash memory
  • Alarm Sensor Inputs: 16 Alarm Relay Outputs: 1
  • Network: 10/100M, Static, DHCP, UPNP and DDNS Server Options
  • Power: +12VDC/4A adaptor (100 –240VAC, 50Hz/60Hz, and 60W)
  • Dimensions (mm): 320(W) x 340(D) x 70(H)



Last Updated November 15, 2015
