Unitek UK-B28V114ED Infrared Bullet Security Camera

Write a Review
Calculated at Checkout

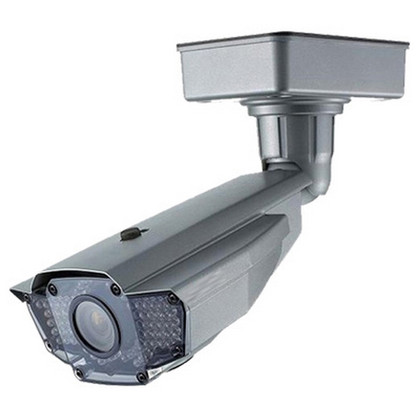

Unitek UK-B28V114ED Infrared Bullet Security Camera is a professional grade CCTV camera that delivers on performance, quality and reliability. The Unitek UK-B28V114ED IR Security Camera features a powerful array of 40 LEDs for an effective night vision range of upto 140ft. The Unitek UK-B28V114ED is equipped with a 2.8-12mm varifocal lens and mount with multi axis positioning. The Unitek UK-B28V114ED IR CCTV Camera is a fully weatherproof with a sun shield and mount included for outdoor ready installation. The Unitek Bullet Camera ensures razor sharp video surveillance imaging with 620tvl color and 700tvl Black/White. The Unitek is further benefited with advanced features such as Dynamic IR (adjustable) and D-WDR (Digital Wide Dynamic Range) for adverse lighting conditions. The Unitek UK-B28V114ED also has a multi language OSD and supports both 12VDC and 24VAC voltage input. The unitek UK-B28V114ED IR Bullet Security Cameras are an excellent choice for high performance security camera systems.

Unitek UK-B28V114ED Main Features:

  • Image Sensor: 1/3" Color Sony Super HAD CCD II
  • Pixel: 410K
  • Scanning: 2:1 interlace
  • Sync. Type: Internal
  • High Resolution: 620TVL Color / 700TVL B/W
  • S/N: 48db or More (AGC OFF)
  • Video Output: 1.0 Vp-p (Sync. Negative) Termination 75ohm
  • Min. Illumination: 0 Lux (IR LED On) upto 140ft
  • LEDS: 40 Infrared LEDs, Dynamic IR
  • Gamma: y=0.45 typical
  • OSD: YES (Multi Language)
  • Lens: 2.8-12mm Varifocal Lens
  • Shutter Speed: 1/60(1/50)-1/100,000sec
  • White Balance: ATW/MANUAL/AWC
  • Backlight: BLC ON/OFF, D-WDR, HLC ON/OFF
  • Power Supply Voltage: 12VDC/24VAC 10%
  • Current Consumption: Max. 850ma (LED On)
  • Operating Temp: 14F-122F
  • Storage Temp: -4F-140F
  • 2.42(W)x2.42(H)x4.02(D)
  • Weight: Approx. 1.21lbs
