NOTICE: This product has been discontinued or is EOL - Please contact our Experts or search the category link below or other related categories.

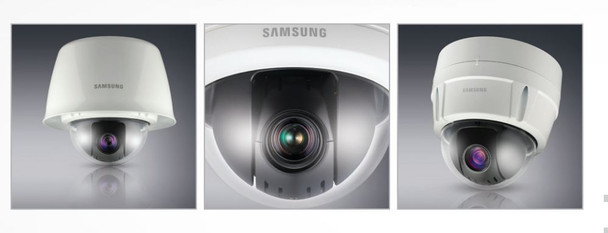

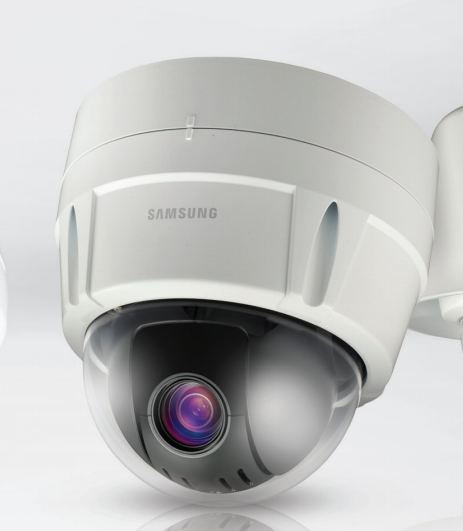

Samsung SNP-3120V 12x IP Network PTZ Security Cameras is outdoor PTZ with a IP66 rated vandal resistant housing and a Wide Dynamic Range feature with a powerful 12x optical zoom and 16x digital zoom power with a 650 degrees of rotating power with 256 presets. This camera has a wide 3.69mm to zoom lens and a True Day/Night with ICR combined with the WDR feature gives it the ability to transmit clear video any time of the day. This outdoor PTZ has a 4CIF resolution at up to 30 frames per second with compressed formats like triple codecs, as H.264, MJPEG and MPEG, this camera has the compatibly to transmit video data to different locations for monitoring and recordings. This PTZ dome camera has SD Memory slot for on board storage. It has Extreme Power over Ethernet which makes sure that all the data are transmitted securely while passing the currents and connections before it reaches the monitors and recording devices. The camera has features such as WDR (Wide Dynamic Range) and XDR (Extreme Dynamic Range). These features make sure that the camera can yield clear outputs by adjusting to different lighting conditions and interference. Added to it is the True Day/Night (ICR) function making sure that the camera is able to fit certain high contrast situations. The Samsung SNP-3120V can be used in both outdoor and indoor operations but it is vandal resistant for outdoor use. The SNP-3120V is an ONVIF approved progressive scanning camera.

Samsung SNP-3120V Main Features:

• Real-time 30(25)fps at 4CIF
• 12x optical zoom, 16x digital zoom
• H.264 / MPEG4 / MJPEG multiple codec
• PoE Plus, SD memory, bi-directional audio support


Samsung SNP-3120V Specifications:

Imaging Device 1/4" Ex-view HAD PS CCD
Total Pixels 811(H) x 508(V)
Horizontal Resolution Color : 600 TV linesCCD
Min. Illumination Color : 0.7 Lux (F1.65, 50IRE), 0.001 Lux (Sens up 512x), B/W : 0.07Lux (F1.65, 50IRE), 0.0001 Lux (Sens up 512x)D"
S / N Ratio 50dB
Focal Length (Zoom Ratio)- 3.69~44.32mm (12x)
Max. Aperture Ratio- F1.65(Wide) / F2.01(Tele
Angular Field of View- H : 54.44(Wide) ~ 4.62(Tele) / V : 42.32(Wide) ~ 3.58(Tele)
Min. object Distance- 0.2m (Wide) / 0.8m (Tele
Focus Control- AF / One-Shot AF / Manual
Lens Type- DC Auto Iris
Pan Range- 360 Endless
Pan Speed- Preset : 650/sec, Manual : 0.05/sec ~120/sec (Turbo:200/sec)
Tilt Range- -5~185
Tilt Speed- Preset : 650/sec, Manual : 0.05/sec ~120/sec
Preset- 255 ea
Preset Accuracy- ±0.1
on Screen Display- English, French, German, Spanish, Italian, Korean, Portuguese
Camera Title- Off / On (Displayed up to 12 characters)
Day & Night- Auto (ICR) / Color / B/W
Backlight Compensation- Off / BLC / WDR
Wide Dynamic Range- 128x
Dynamic Range- XDR(extended Dynamic Range) (Off/Low/Medium/High)
Digital Noise Reduction- Motion Adaptive 2D+3D Noise Filter (Off/Low/Medium/High)
Digital image Stabilization- Off/On
Motion Detection- Yes
Privacy Masking- Off/On (12 Polygonal programmable zones)
Sens-up (Frame integration)- Off / Auto (2x ~ 512x
Gain Control- (Off /Low / Medium / High / Manual)
White Balance- ATW (In) / ATW (Out) / AWC / Manual
electronic Shutter Speed- Off / A.FLK / Manual (1/120 ~ 1/10Ksec)
Digital Zoom- 16x
Flip / Mirror- Digital Flip
VPS- Off/On
intelligent Video Analytics- Moved/Fixed
Alarm i/o- Input 2ea / Output 2ea (Relay)
Remote Control interface- RS-485, CCVC(PELCO Coaxitron)
RS-485 Protocol- SAMSUNG T/E, PELCO-P/D, Panasonic, Honeywell, AD, Vicon, GE, Bosch
ethernet- RJ-45 (10/100BASE-T)
Video Compression Format- H.264, MPEG4, MJPEG
Resolution- 704 x 480, 640 x 480, 352 x 240, 320 x 240
Max. Framerate- 30fps
Video Quality Adjustment- H.264 / MPEG4 : Compression Level, Target Bitrate Level Control, MJPEG : Quality Level Contro
Bitrate Control Method- H.264 / MPEG4 : CBR or VBR, MJPEG : VBR
Streaming Capability- Multiple Streaming (Up to 10 Profiles)
Audio i/o- Line In/Line Out
Audio Compression Format- G.711 u-law
Audio Communication- 2-way
iP- IPv4, IPv6
Security- HTTPS(SSL) Login Authentication, Digest Login Authentication, IP Address Filtering, User access Log
Streaming Method- Unicast/Multicast
Max. User Access- 10 users at Unicast mode
Memory Slot- SD/SDHC Memory Slot
ONVIF Conformance- Yes
Web Viewer- Supported OS : Windows XP / VISTA / 7, MAC OS
Supported Browser : Internet Explorer 6.0 or Higher, Firefox, Google Chrome, Apple Safari
Central Management Software- NET-i viewer
operating Temperature / Humidity- SNP-3120 : -10C ~ +50C (+14F ~ +122F) / Less than 90% RH , SNP-3120V /
SNP-3120VH : -50C ~ +50C (-58F ~ +122F) / Less than 90% RH
input Voltage / Current- 24V AC, PoE+ (IEEE 802.3at)
Power Consumption- SNP-3120 : Max. 15W
Color / Material- SNP-3120 : Ivory / Plastic, SNP-3120V : Ivory / Aluminum (Vandal-Resistant type)

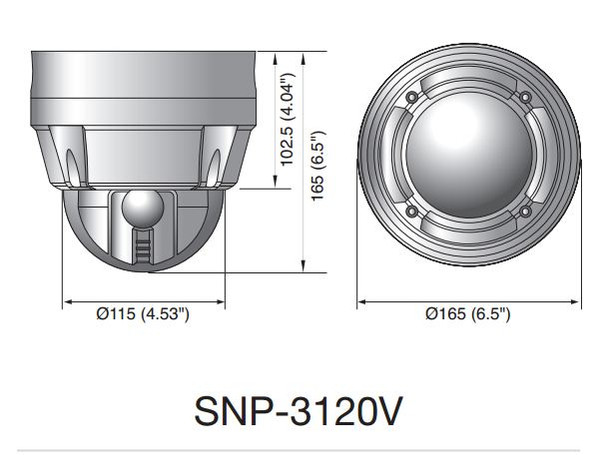

Dimension (WxHxD)- SNP-3120 : 174 x 168mm (6.85" x 6.61")
Weight- SNP-3120 : 1.2Kg (2.65 Ib)


Moved to EOL: February 24, 2020
