Samsung

Samsung SCD-2081 Day/Night Dome Security Camera

Write a Review
SKU:
SCD-2081
Shipping:
Calculated at Checkout
  • SCD2081 front

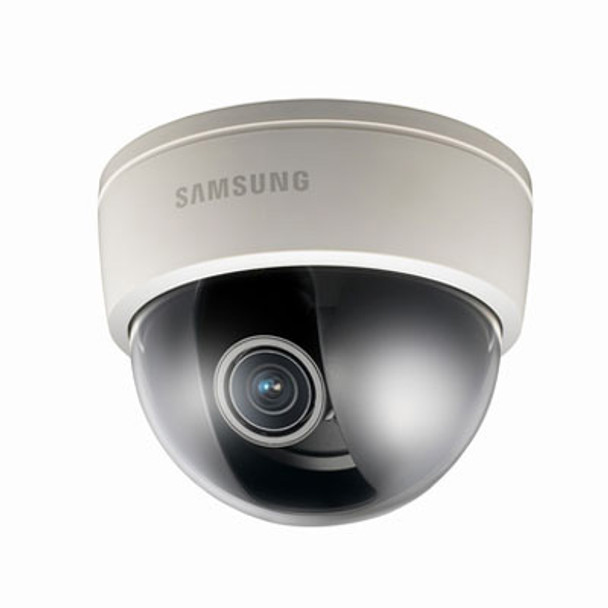

  • SCD2081 right side dome
$179.00

Description

Samsung SCD-2081 Dome Security Camera is one of the many fine camera choices in the Samsung CCTV Dome Camera series. The Samsung SCD-2081 Dome is built with a high quality image sensor for outstanding high resolution imaging of 650tvl and 700tvl.
The compact indoor dome camera is equipped with a 2.8-11mm (3.9x) Varifocal lens and a 3 axis camera bracket for simple camera adjustment. Plus the camera has a built in Mechanical IR Cut filter for true day night operation. Samsung SCD-2081 Dome Cameras are further enabled with advanced Samsung technology like SSDR, SSNRIII, and Sens Up for superior image performance. The Samsung SCD-2081 Dome Camera also features a rich OSD (On Screen Display) with RS-485 or Coaxil Control Communication. The Mini Dome security camera in addition supports 12VDC or 24VAC dual voltage for easy system integration. The small form factor dome camera ensures superior coverage and the perfect indoor solution for demanding cctv security camera systems.

Samsung SCD-2081 Main Features:

  • 650TVL and 700TVL Ultra High Resolution
  • Min. Illumination 0.1Lux @F1.2 ( Color ), 0.01 Lux (B/W) , 0.00002Lux (Sens-up, x512 B/W)
  • 3.9x Varifocal Auto Iris Lens(2.8~11mm) and 3 Axis Camera Bracket
  • True Day Night w/ICR IR Cut-filter
  • SSNRIII (3D+2D), SSDR, Sens Up, and Coaxial Control OSD
  • Dual Power 12VDC or 24VAC

Samsung SCD-2081 Specifications:

  • Imaging Device 1/3" Super HAD CCD II
  • Total Pixels 1,028(H) x 508(V) 1,028(H) x 596(V)
  • Effective Pixels 976(H) x 494(V) 976(H) x 582(V)
  • Scanning System 2 : 1 Interlace
  • Synchronization Internal / Line lock
  • Frequency H : 15.734KHz / V : 59.94Hz H : 15.625KHz / V : 50Hz
  • Horizontal Resolution Color : 650TV lines, B/W : 700TV lines
  • Min. Illumination
  • Color :0.1Lux(50IRE@F1.2), 0.0002Lux (Sens-up, x512)
  • B/ W :0.01Lux(50IRE@F1.2), 0.00002Lux (Sens-up, x512)
  • S / N Ratio 52dB (AGC off, Weight on)
  • Video Output CVBS : 1.0 Vp-p / 75O composite
  • Focal Length (Zoom Ratio) 2.8 ~ 11mm (3.9x)
  • Max. Aperture Ratio 1 : 1.2(Wide) ~ 2.8(Tele)
  • Angular Field of View H : 94°(Wide) ~ 26°(Tele) / V : 67°(Wide) ~ 20°(Tele)
  • Min. Object Distance 0.2m (0.66ft)
  • Lens Type DC auto iris
  • Mount Type Board type
  • Manual PAN / TILT
  • Pan Range 0° ~ 352°
  • Tilt Range 0° ~ 73°
  • Rotate Range 0° ~ 348°
  • On Screen Display English, Japanese, Spanish, French, Portuguese, Korean
  • English,French, German, Spanish, Italian, Chinese, Russian, Polish,
  • Czech, Romanian, Serbian, Swedish, Danish,Turkish, Portuguese
  • Camera Title Off / On (Displayed 15 characters)
  • Day & Night Auto (ICR) / External / Color / B/W
  • Backlight Compensation Off / User BLC / HLC / SSDR
  • Contrast Enhancement SSDR
  • Digital Noise Reduction SSNRIII (Off / On)
  • Digital Image Stabilization Off / On
  • Motion Detection Off / On (8 programmable zones)
  • Privacy Masking Off / On (12 programmable zones)
  • Sens-up (Frame Integration) 2x ~ 512x
  • Gain Control Off / Low / High
  • White Balance ATW / Outdoor / Indoor / Manual / AWC (1,700K° ~ 11,000K°)
  • Electronic Shutter Speed 1/60 ~ 1/120,000sec 1/50 ~ 1/120,000sec
  • Digital Zoom Off / On (1x ~ 16x)
  • Reverse Off / H-Rev / V-Rev / HV-Rev
  • Profile Basic / Day & Night / Backlight / ITS / Indoor / User
  • PIP Off / On
  • Alarm 1 Out
  • Communication Coaxial control (SPC-300 compatible)
  • Protocol Coax : Pelco-C (Coaxitron)
  • Operating Temperature / Humidity -10°C ~ +50°C (+14°F ~ +122°F) / Less than 90% RH
  • Input Voltage / Current Dual (24VAC±10% & 12VDC ±10%)
  • Power Consumption Max. 3.5W
  • Color / Material Ivory / Plastic (Dome cover : Clear)
  • Dimensions (WxH) Ø115.8 x 92.7mm (Ø4.56" x 3.65")
  • Weight 365g (0.8 lb)
