Samsung SCD-2010F Mini Dome Security Camera

  • SCD2010F mini dome camera top view

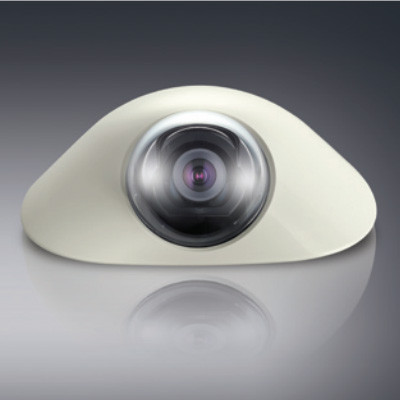

  • SCD2010F front dome camera

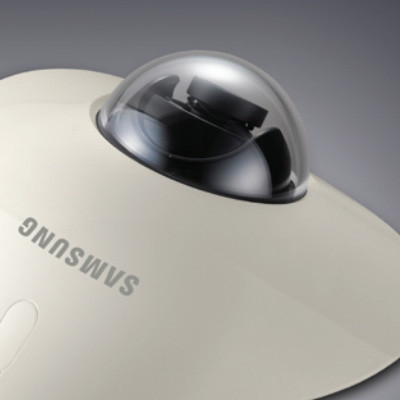

  • SCD2010F rear view mini dome

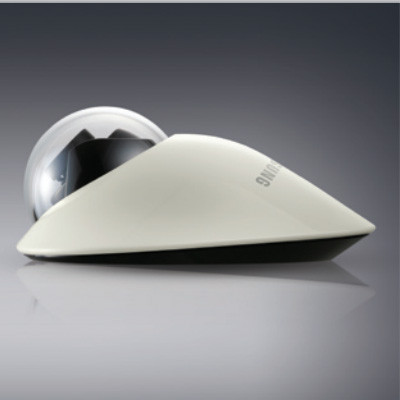

  • side view dome camera
Calculated at checkout

Product Description

Samsung SCD-2010F Mini Dome Security Camera is an ultra compact and stylish CCTV dome for indoor video surveillance. The Samsung SCD-2010F is built with the same technology as the SCD-2010 series camera yet has a super low profile casing. The SCD-2010F Mini Dome Camera likewise provides high resolution 600tvl color video with superior low light abilities thanks to Sens Up. Also features in the mini dome is SSNRIII Samsung Super Noise Reduction for crystal clear imaging. Built with a fixed 3mm lens the unit delivers excellent wide angle coverage. Additionally the Samsung SCD-2010F includes built in Motion Detection and Privacy Masking. The camera offers a diverse selection of settings which can be controlled via the OSD. Coaxil Communication is also supported for simple and remote camera configuration. The Samsung SCD-2010F Mini Dome Cameras with thier sleek and ultra small form factor design nearly vanish in most indoor environments. The SCD-2010F Samsung Mini Dome is an excellent solution for a variety of security camera systems.

Samsung SCD-2010F Main Features:

  • 600TVL High Resolution Color
  • Min.illumination of 0.04Lux w/Sens Up
  • Built-in 3mm fixed lens
  • SSNRIII (Samsung Super Noise Reduction)
  • Multi Language OSD with coaxial control
  • Compact design mini dome design, easy installation

Samsung SCD-2010F Specifications:

  • imaging device: 1/3" Super HAD CCD
  • Total Pixels: 811(H) x 508(V) 795(H) x 596(V)
  • effective Pixels: 768(H) x 494(V) 752(H) x 582(V)
  • Scanning System: 2 : 1 Interlace
  • Synchronization: Internal
  • Frequency: H : 15.734KHz / V : 59.94Hz H : 15.625KHz / V : 50Hz
  • Horizontal Resolution: Color : 600 TV lines
  • Min. illumination: Color : 0.04Lux (Sens-up, 2x)
  • S / N Ratio: 52dB (AGC off, Weight on)
  • Video output: CVBS : 1.0 Vp-p / 75O composite
  • Focal Length (Zoom Ratio): 3.0mm
  • Max. Aperture Ratio: F2.0
  • Angular Field of View: 89°(H) x 67°(V)
  • Pan Range: ±10°
  • Tilt Range: 0° ~ 90°
  • on Screen display: Multi-language Support by Coaxial Cable Multi-language Support by Coaxial Cable
  • NTSC: English, Japanese, Spanish, French, Portuguese, Taiwanese, Korean
  • PAL: English, French, German, Spanish, Italian, Chinese, Russian, Polish, Czech, Romanian, Serbian, Swedish, Danish, Turkish, Portuguese
  • Camera Title: Off / On (Displayed 15 characters)
  • day & Night: Auto (Electrical) / Color / B/W
  • Backlight Compensation: BLC / HLC / Off
  • dynamic Range: SSDR (Off / On)
  • digital Noise Reduction: SSNRIII (Off / On)
  • digital image Stabilization: Off / On
  • Motion detection: Off / On (8 programmable zones)
  • Privacy Masking: Off / On (12 programmable zones)
  • Sens-up (Frame integration): 2x ~ 512x
  • Gain Control: Off / On
  • White Balance: ATW / Outdoor / Indoor / Manual / AWC (1,700K° ~ 11,000K°)
  • electronic Shutter Speed: 1/60 ~ 1/120,000 sec 1/50 ~ 1/120,000 sec
  • digital Zoom: Off / On (1x ~ 16x)
  • Flip / Mirror: Off / On
  • Communication: Coaxial Control (SPC-300 compatible)
  • Protocol: Pelco-C (Coaxitron)
  • operating Temperature / Humidity: -10°C ~ +50°C (+14°F ~ +122°F) / Less than 90% RH
  • input Voltage/Current: 12V DC ± 10% / Less than 0.15A
  • Power Consumption: 1.8W
  • Color / Material: Body : Ivory, PC/ABS, Dome Cover : Clear, PC
  • dimension (WxHxd): 115.3 x 100.5 x 41.9mm (4.54" x 3.96" x 1.65")
  • Weight: 140g (0.31 Ib)
