Samsung SCB-5005 1000TVL WDR D/N Security Camera 1280H

Write a Review
Calculated at Checkout
  • Samsung SCB-5005 1000TVL CCTV Box Security Camera 1280H WDR
  • Samsung SCB-5005 CCTV Box Security Camera with No Lens
  • Samsung SCB-5005 Box Security Camera side view
  • Samsung P-iris Lens Technology
  • Samsung Defog Security Camera Video Function
  • Samsung WDR 120dB (Wide Dynamic Range)
  • Samsung SCB-5005 1000TVL WDR D/N Security Camera 1280H


Samsung SCB-5005 1000TVL WDR D/N Security Camera is the latest box style CCTV camera in the beyond series surveillance systems. Built to deliver the latest combination of high performance CCTV security camera characteristics it boast a powerful 1.3 Megapixel Image sensor enabling new 1280H standard 1000TVL high resolution. It provides practically every other desirable attribute you can find in modern CCTV security systems. The unit’s performance, adaptability and quality make it a best choice for professional grade CCTV video security.

Superior Image Performance:
All around the SCB-5005 Samsung WDR Day/Night Security Camera provides best in class surveillance with advanced image processing including True Day/Night operation with stunning low light abilities. Added technology from SSDR, SSNR IV, Defog, to 120dB WDR (Wide Dynamic Range) promise sharp imaging in even the most adverse lighting scenes to high contrast environments. New age features like Simple focus and P-iris Lens ensure the absolute best video quality possible. Users are further provided in-depth manual image adjustment via on-screen display to pre-set camera profiles enabling automatic settings for ideal performance in a variety of environments.

Intelligence and Integration:
Numerous other superb functions like Defog, 24 Zone Privacy Masking, Motion Detection, or Tampering are all of course included, but most noted are its Intelligent Video Analytics for functions like counting, virtual fence, advanced detection, fixed or moved objects and more. Fully adaptable to any installation indoor or outdoor, the unit includes support for C or CS mount lenses, manual, DC auto iris or P-iris type. Coaxial Communication and RS-485 Communication plus I/O interface further allow easy control to sophisticated integration. Dual Power 12VDC or 24VAC input to multi-language menu support are all included for maximum user satisfaction.

Samsung SCB-5005 Best Features:

  • 1/3 1.3 Megapixel CMOS Sensor
  • 1000TVL 1280H High Resolution in both Color and B/W
  • True Day/Night with Low Light Color 0.01 Lux (F1.2 30IRE) and B/W 0.001 Lux (F1.2 30IRE)
  • WDR 120dB Wide Dynamic Range
  • CS or C Mount Lenses including Manual, DC Auto Iris and P-iris (lens not included)

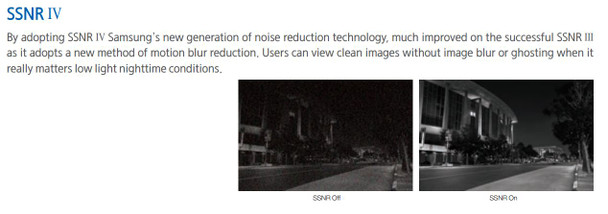

  • SSDR (Samsung Super Dynamic Range) SSNRIV (Samsung Super Noise Reduction), Sens-Up, Defog, Digital Image Stabilization and More
  • Motion Detection and Privacy Masking with 24 Zones
  • Intelligent Video Analytics: Detection, Virtual Fence, Moved/Fixed Objects, Object Counting, Tracking and Tamper
  • Coaxial Communication Pelco-C Control and RS-485 multi-protocol support
  • Dual Voltage 12VDC or 24VAC
  • 73.1 x 67.2 x 123.9mm (2.88" x 2.65" x 4.88")


Last Updated November 18, 2014
