Description

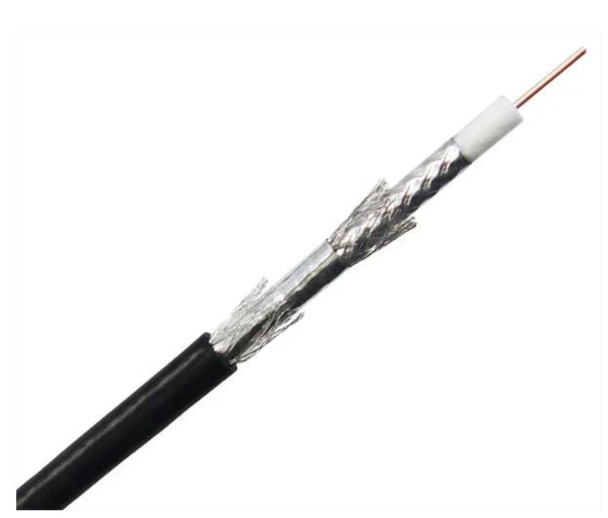

The AZP-CC3032BK6QD is a premium RG6/U coaxial cable built with quad shielding for maximum protection against interference. It features an 18AWG solid copper-clad steel conductor, bonded aluminum foil, 60% aluminum braid, second aluminum foil layer, and 40% aluminum braid — providing four layers of shielding and excellent signal integrity. Designed for 75-ohm CATV, broadband, and satellite distribution, its PE direct burial jacket ensures longevity in underground installations.
Although primarily used in CATV systems, this cable can be adapted for certain CCTV/IP applications with coax-to-IP converters. For standard CCTV camera wiring, however, an RG59 Siamese cable is recommended. UL rated and RoHS compliant.
Key Features:
- RG6/U quad shield design
- 18AWG CCS conductor
- Bonded aluminum foil + dual braid + second foil layer
- 75-ohm impedance
- PE direct burial jacket

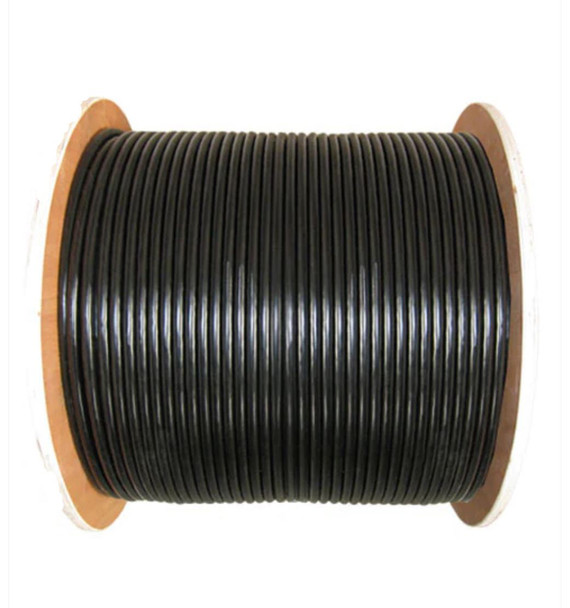

- 1000ft wooden spool
- UL rated, RoHS compliant
- Intended for CATV/broadband installs (not typical CCTV)
Technical Specifications:
- Cable Type: RG6/U Quad Shield Direct Burial Coax
- Conductor: 18AWG Solid Copper-Clad Steel (CCS)
- Shielding: Quad (Foil + 60% braid + Foil + 40% braid)
- Impedance: 75 ohm
- Jacket: PE Direct Burial, Black
- Length: 1000ft Wooden Spool
- Applications: CATV, broadband, satellite, occasional CCTV/IP via converters
- Compliance: UL, RoHS
