Description
The AZP-CC3031BK6D is a high-grade RG6/U coaxial cable designed primarily for CATV, satellite, and broadband distribution systems. Featuring an 18AWG solid copper-clad steel conductor, bonded aluminum foil shield, and 60% aluminum braid, it provides dependable signal delivery with 75-ohm impedance. The PE direct burial jacket ensures long-term protection when installed underground.
While primarily intended for CATV applications, this cable may also be used in certain CCTV/IP systems with coax-to-IP converters or signal extenders. However, it is **not recommended for typical CCTV camera installations**, which generally require RG59 Siamese designs with integrated power.
Key Features:
- RG6/U coaxial cable, 18AWG CCS conductor
- Bonded aluminum foil + 60% aluminum braid
- 75-ohm impedance
- PE direct burial jacket
- 1000ft wooden spool
- UL rated, RoHS compliant
- Intended for CATV, broadband, and satellite use
- Note: Not recommended for typical CCTV installs

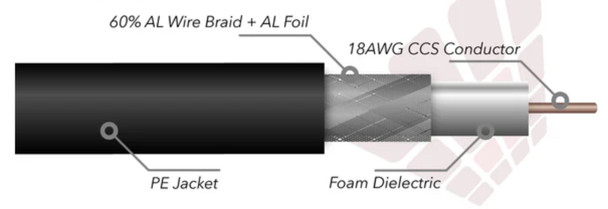

Technical Specifications:
- Cable Type: RG6/U Direct Burial Coax
- Conductor: 18AWG Solid Copper-Clad Steel (CCS)
- Shielding: Aluminum foil (bonded) + 60% aluminum braid
- Impedance: 75 ohm
- Jacket: PE Direct Burial, Black

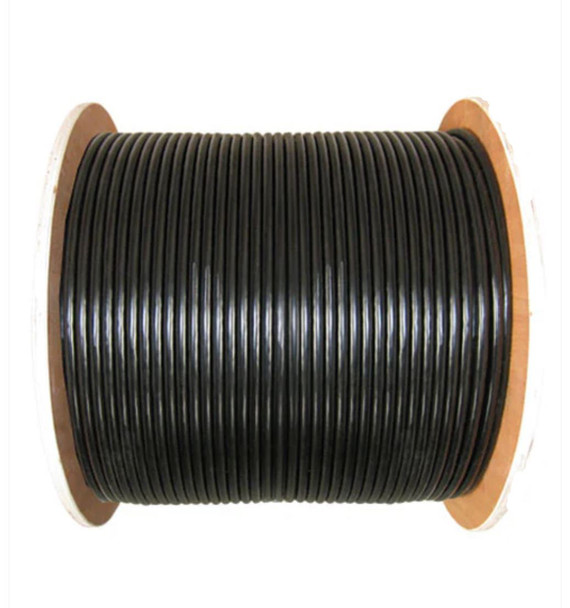

- Length: 1000ft Wooden Spool
- Applications: CATV, broadband, satellite, specialty CCTV with converters
- Compliance: UL, RoHS
