A2Z Mobile Eco PC NVR VMS Systems Fanless Open-Platform RUGGED-PC-ECO

Write a Review
  • A2Z Mobile Eco PC NVR VMS Systems Fanless Open-Platform ATOM or Celeron RUGGED-PC-ECO
  • A2Z Mobile Eco PC NVR VMS Rugged Systems Modular Adaptable

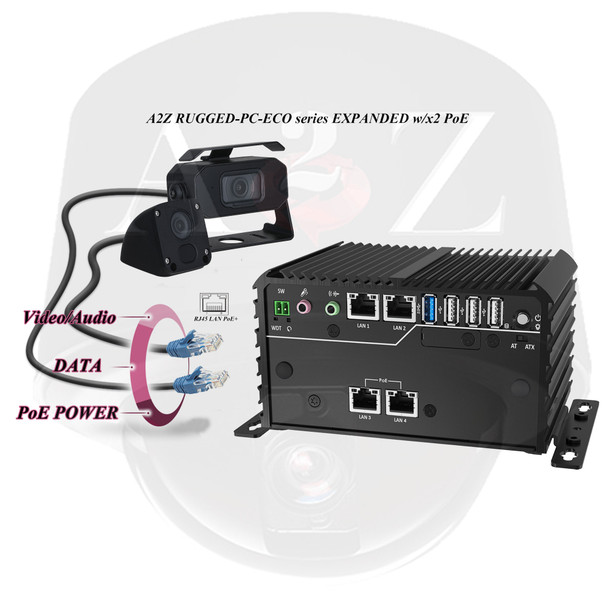

  • A2Z Mobile Eco PC NVR VMS Systems Fanless Open-Platform RUGGED-PC-ECO PoE+ Support for Mobile IP cameras
Contact Us


A2Z RUGGED-PC-ECO Mobile Ready Economic Fanless PC NVR VMS System for fixed or vehicle applications demanding maximum quality and ruggedness, rich abilities and performance especially with low power draw and all at competitive low cost. The RUGGED-PC-ECO enjoys modular capabilities not unlike A2Z's MOBILE-PC series though not as expansive it alternatively provides a selection of ultra-low DC power consumption utilizing mobile Quad Core CPUs of the Intel ATOM and Celeron families. This ultra-compact Rugged PC NVR VMS System is packed with capabilities rivaling any modern Mobile PC Recording unit in its class. Despite multiple chassis options the entire line achieves low profile designs yet boast best in class attributes, hardware and software options. In addition to solid processing power the device accommodates up to 8GB DDR3 RAM and supports multiple HD displays. Excellent standard features such as USB 3.0, Dual GbE LAN ports to Speaker and Microphone Jacks means users will find all common peripherals useable. Additionally, upgraded or modified configurations including various chassis sizes allow custom tailored Rugged PC NVR builds with abilities like onboard Wireless 4G Cellular or WiFi Connectivity to expanded Digital I/O and Built-in PoE Ports plus more. Available with Windows Operating Systems including Windows 10 IoT Enterprise or Ubuntu Linux the system serves as an excellent, high quality, ultra-low power solution for basic remote video needs including mobile video applications, robotics and beyond.

A2Z RUGGED-PC-ECO Main Features:

  • Vast Selection of Pro VMS, CMS, NVR Software Solutions
  • Optional 2 Port GbE PoE+ (Gigabit Power Over Ethernet 802.3at) On-Board in RJ45 Connectors (Some Models*)
  • Intel® E3845 ATOM 1.9Ghz or J1900 Celeron 2.0Ghz Quad Core processors
  • 1x DDR3L-1066/1333 up to 8GB
  • 2x COM, 1x USB 3.0, 3x USB 2.0
  • 2x GbE LAN w/PXE and Wake-on-LAN Support
  • Supports 2x mini-PCIe (mPCIe) - (1x mSATA auto-detect)
  • Mic Audio in and Headphone / Speaker Audio Out jacks
  • TPM 2.0 Support
  • DVI-I Multiple HD Display Support
  • Open Platform OS on mSATA (m.2) SSD i.e. Windows 10 IoT or Ubuntu Linux, etc.
  • Optional 2.5" HDD or SSD Storage Bay SATA III
  • Optional 2x external SIM slots for 4G LTE Cellular Connectivity w/External Antennae
  • Optional WiFi 802.11a/b/g/n/ac, Bluetooth 4.1, 2x Antenna
  • Supports Power switch, remote switch, AT/ATX select, custom external Ignition Power Control System
  • 9~48V DC Power Input (w/ over voltage, current & reverse polarity protection)
  • Wide Operating Temperature Range: -13 °F ~ 158 °F
  • Rugged Anti-Vibration Rating: 5 Grms, 5 ~ 500 Hz, 0.5 hr/axis; Anti-Shock Rating: 50G, half sine, 11ms (with SSD)
  • Approx. Dimensions (W x H x D): 5.9" x 4.1" x 1.4" BASE MODEL CHASSIS
  • Approx. Weight: 1.52 Lbs. BASE MODEL CHASSIS Varies per configuration
  • and more!

Leading Perks & Performance for Low Price & Low Power Draw Ratio:
Equipped with a choice of ATOM or Celeron Quad Core Mobile Processors at 1.91 Ghz or 2.0GHz respectively with SOC integrated CPU Design among other rugged features promises excellent performance at the low power consumption. The units also allow up to 8GB RAM and Support Independent HD Display and more all while maintaining ultra-compact builds. The units modular design allows for almost endless possible configurations within multiple chassis options for best in class produce line features. Users will enjoy common connectivity with GbE (Gigabit) LAN Ports with PXE and Wake-on-LAN support to USB 3.0 and COM Port Support including multiple COM Ports as standard and expandable COM ports as options. Cutting edge features like TPM 2.0 Support or its Operating System on dedicated m2 SSD with added 2.5" SATA III HDD Storage options, even headphone and mic audio I/O promise all the essential demands plus more. Windows 10 IoT (and other windows) or Ubuntu Linux pre-loaded systems provide integrators to end-users easy to apply industrial grade computing solutions. Take as example support for on-board WiFi, Bluetooth or 4G LTE Cellular uplink including Wireless Antennae and SIM Card slots the A2Z RUGGED-PC-ECO series delivers clear advantages for optimal results and satisfaction.

A2Z RUGGED-PC-ECO Mobile Eco Fanless PC Network Video Recorder and Video Management Software Systems provide professional, commercial and industrial grade PC Based Video Solutions for use in tough environments with custom tailored requirements. Built to withstand extreme temperatures the devices recommended operating range is well below freezing at -13°F to scorching 158°F. Consider then its serious anti-vibration and anti-shock abilities, including cableless internal design and one quickly realizes its agility for fixed, portable or mobile video system applications. Alongside its small form factor design even in its largest chassis configurations the device is purpose built for wide range DC voltage input with low power draw and further provides great benefits like over-voltage, over-current and reverse polarity protection. A2Z Experts are available to help you choose the best Rugged PC NVR Systems and can help you acquire all the parts and pieces be it Mobile IP Cameras or custom external Ignition Power Control Systems to help complete your mobile surveillance, security and other pro video audio applications.

A2Z RUGGED-PC-ECO Open-Platform PC NVR VMS and More System:
The A2Z Security Cameras RUGGED-PC-ECO1 is a best in class Mobile ready PC based NVR VMS System offered in numerous, modular configurations yet focused on Low Power Draw, Low CPU Power Requirements. As such the unit is available with a variety of Brand name VMS or NVR Software applications including those from Brands like Geovision with GV-NVR or GV-VMS, Hanwha (FKA Samsung) WAVE VMS Software or Senstar Symphony enterprise grade Video Management System and plenty more. The system is intended best for applications looking to provide unique Video Management or Centralized Recording on small scale mobile or fixed IP Camera Systems economically, but professionally. Systems vary based on configuration and user requirements; A2Z Security Camera Experts can help you determine which configurations best fit your needs.

Last Updated October 8th. 2020
